Mercedes A6286310020 - RAHMENTEIL (LI H

O 530 NUE EURO 3 SOLO 13 METER LANG 628.447

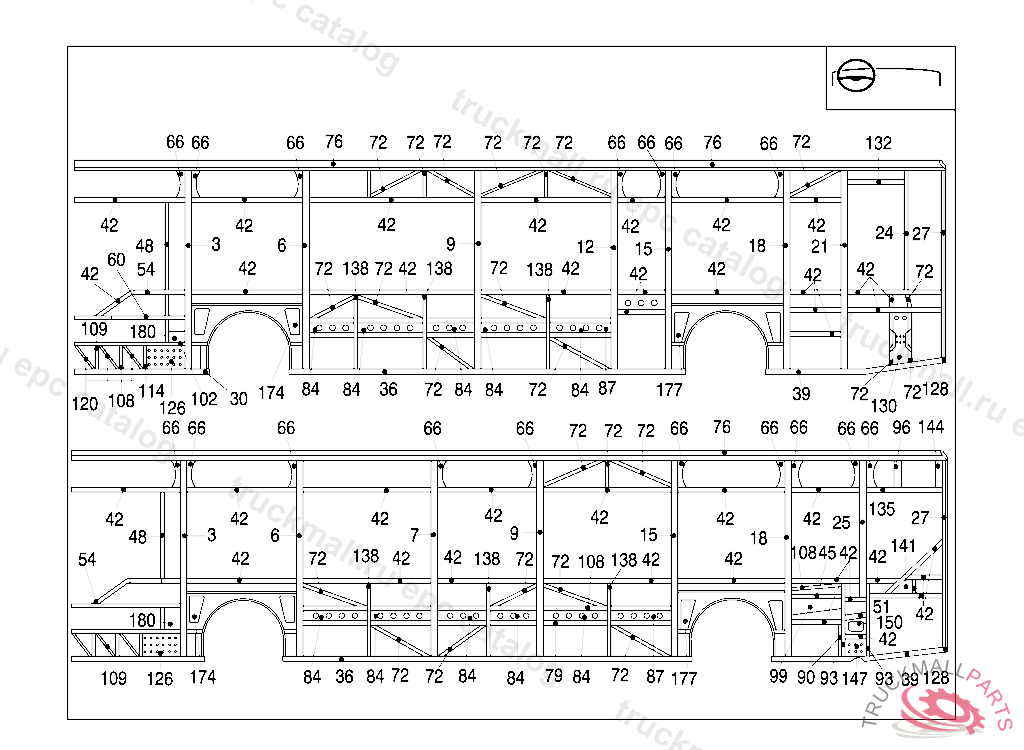

63 SIDE PANELS - 150 LEFT FRAMEWORK IL. 1

Поз.
Артикул
Описание
3
A6286301610
PILLARNO. 1
6
A6286302610
PILLARNO. 2
7
A6286317810
PILLAR PART
9
A6286310910
PILLAR PART
12
A6286301710
PILLAR
15
A6286303110
PILLAR
18
A6286301410
PILLARNO. 4
25
A6286316110
PILLAR PART
27
A6286310610
PILLAR PART REAR END
36
A6286309540
SUPPORT BOTTOM, TO BE ADAPTED DURING ASSEMBLY
39
A6286304040
SUPPORT WITHOUT CUTOUT
39
A6286301040
SUPPORT WITH CUTOUT
42
A6286326440
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
45
A6286321940
SUPPORT
48
A6286310210
PILLAR PART DRIVER'S WINDOW
51
A6286301040
SUPPORT WITH CUTOUT
54
A6286304640
SUPPORT DRIVER'S WINDOW
66
A6286341316
REINFORCEMENT TOP
72
A6286122473
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
76
A6286300525
SUPPORT TOP
79
A6286321840
RECTANGULAR TUBE , A 628 632 18 40 RECTANGULAR TUBE 40 X 20 X 2 X 1590 MM TO BE ADAPTED DURING ASSEMBLY
84
A6286327540
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
87
A6286323019
WEB
90
A6286320105
STRUT , TO BE ADAPTED DURING ASSEMBLY
93
A6286312110
PILLAR PART
96
A6286310020
FRAME
99
A6286320019
WEB
108
A6286327440
SUPPORT. RECTANGULAR TUBE50X40X2X1480MM, TO BE ADAPTED DURING ASSEMBLY
109
A6286303140
SUPPORT
126
A6286340511
PLATE
128
A6286340111
PLATE
135
A6286326014
SUPPORT
138
A6286310110
PILLAR PART
141
A6286322519
WEB
144
A6286340409
COVERING
147
A6286340711
PLATE
150
A6286341516
REINFORCEMENT
177
A6286300427
PANELLING
180
A6286340231
CONSOLE
180
A6286342211
PLATE
