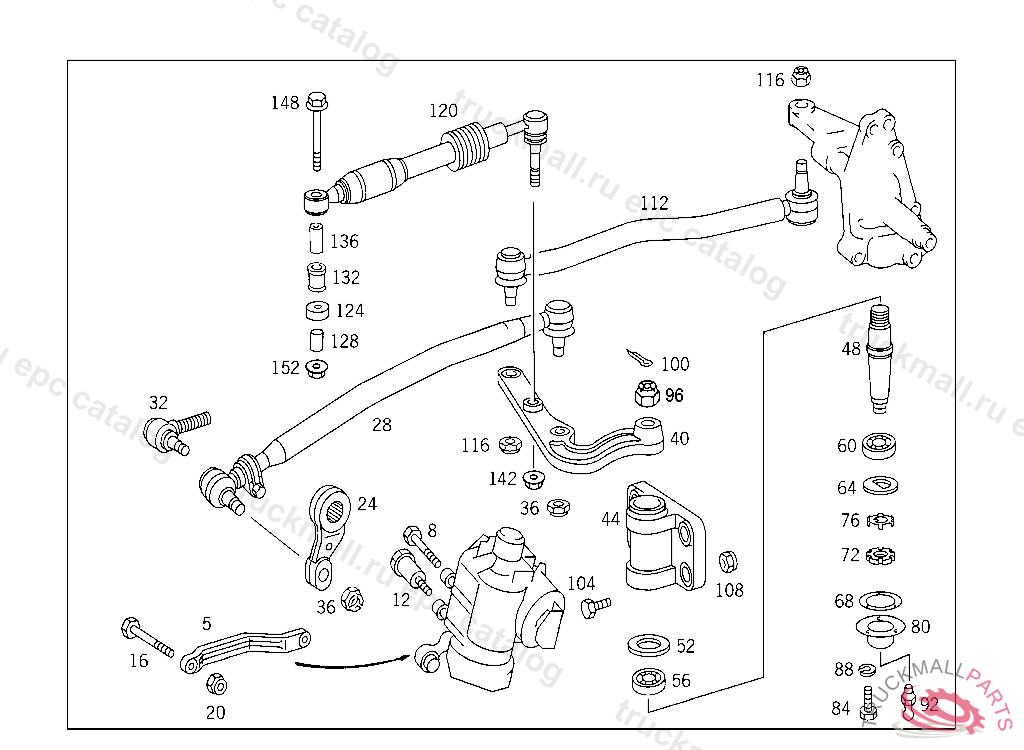

Поз.
Артикул
Описание
5
STRUT STEERING TO FRAME
8
SCREW STEERING TO FRAME
12
FITTED SCREW STEERING TO FRAME
16
HEXAGON HEAD BOLT CABLE WINCH M20X1.5X80, Replaced By: N000000005728
16
SCREW. HEXAGON HEAD BOLT CABLE WINCH M20X1.5X80
20
NUT TRAILER COUPLING TO REAR CROSS MEMBER
20
NUT SHOCK ABSORBER TO BRACKET M20X1.5
24
PITMAN ARM
28
DRAG LINK FROM PITMAN ARM TO INTERMEDIATE LEVER LEMFOERDER
28
DRAG LINK , Replaced By: A6284601105
32
DRAG LINK END FROM PITMAN ARM TO INTERMEDIATE LEVER LEMFOERDER
36
NUT DRAG LINK END M 24X1.5
40
STEERING INTERMEDIATE ARM
44
HOUSING STEERING INTERMEDIATE ARM,081281
48
SHAFT STEERING BOX
52
SEAL RING ,068088
56
TAPERED ROLLER BEARING STEERING INTERMEDIATE ARM
60
TAPERED ROLLER BEARING PIN,BOTTOM
64
THRUST WASHER PIN,BOTTOM
72
NUT TAPERED ROLLER BEARING TO PIN
76
LOCK PLATE SHIFTING ROD, 004101
80
CAP HOUSING,BOTTOM
84
SCREW COVER PLATE TO COVER PLATE M 6 X 12
88
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
92
GREASE NIPPLE
96
NUT FRONT WHEEL BRAKE TO STEERING KNUCKLE
100
COTTER PIN6.3X63 MM
104
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
104
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
108
NUT SUPPORT TO FRAME
108
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
112
DRAG LINK FROM INTERMEDIATE LEVER TO STEERING ARM LEMFOERDER
112
DRAG LINK , Replaced By: A6284601205
116
NUT DRAG LINK END M 24X1.5
120
SHOCK ABSORBER STEERING SHOCK ABSORBER
124
RUBBER BUFFER
128
BUSHING
132
RUBBER RING
136
BUSHING
142
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
142
NUT SUPPORT TO FRAME
148
HEXAGON HEAD BOLT STEERING SHOCK ABSORBER TO BRACKET, Replaced By: N910105014009
148
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
152
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
152
NUT SUPPORT TO FRAME
999
BUSHING
999
CLAMP
