O 530 NUE EURO 3 SOLO 13 METER LANG
628.447
63 SIDE PANELS
220 RIGHT SKELETON,2 DOORS

Mercedes A6286317910 - Saeule

O 530 NUE EURO 3 SOLO 13 METER LANG 628.447

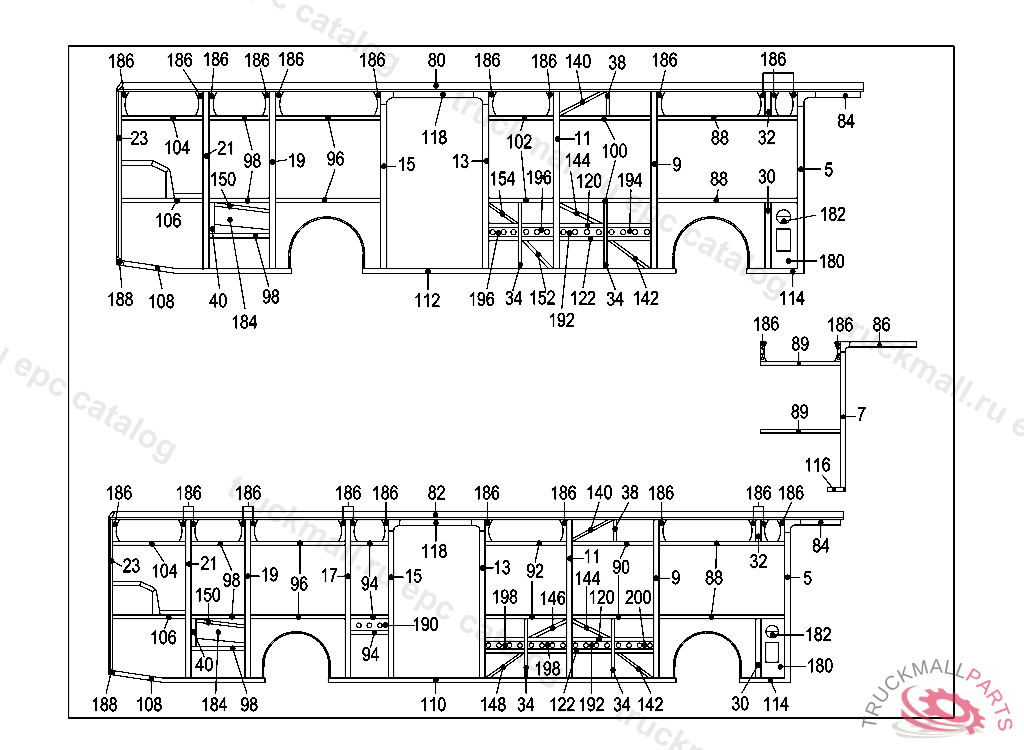

63 SIDE PANELS - 220 RIGHT SKELETON,2 DOORS

Поз.
Артикул
Описание
5
A6286302710
PILLAR
7
A6286300110
PILLARNO. 1 + 5
9
A6286302510
PILLARNO. 2
11
A6286317910
PILLAR PART
13
A6286300210
PILLARNO. 2 + 3
15
A6286300110
PILLARNO. 1 + 5
17
A6286301810
PILLAR
19
A6286301510
PILLARNO. 4
21
A6286303210
PILLAR
23
A6286315910
PILLAR PART
30
A6286313210
PILLAR PART
32
A6286313110
PILLAR PART
34
A6286310110
PILLAR PART
38
A6286330205
STRUT
40
A6286320231
CONSOLE
82
A6286300125
SUPPORT
84
A6286300317
FRAME FRONT DOOR
86
A6286300117
FRAME FRONT DOOR
88
A6286326440
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
89
A6286320440
SUPPORT
90
A6286320540
SUPPORT
92
A6286326614
SUPPORT60 X 50 X 2 X 1268, TO BE ADAPTED DURING ASSEMBLY
94
A6286325940
SUPPORT
96
A6286320440
SUPPORT
98
A6286322114
SUPPORT60 X 50 X 2 X 900, TO BE ADAPTED DURING ASSEMBLY
104
A6286322514
SUPPORT60 X 50 X 2 X 1190 MM, TO BE ADAPTED DURING ASSEMBLY
106
A6286300023
FRAME PART
108
A6286307840
SUPPORT
110
A6286309540
SUPPORT BOTTOM, TO BE ADAPTED DURING ASSEMBLY
114
A6286302240
SUPPORT BOTTOM
116
A6286300740
SUPPORT BOTTOM
118
A6286300017
FRAME DOOR,TOP
120
A6286328740
SUPPORT
122
A6286329240
SUPPORT
140
A6286330105
STRUT
142
A6286330505
STRUT
144
A6286330305
STRUT
146
A6286333005
STRUT
148
A6286333105
STRUT40 X 40 X 2 X 563, TO BE ADAPTED DURING ASSEMBLY
150
A6286325440
SUPPORT50 X 40 X 2 X 839 MM, TO BE ADAPTED DURING ASSEMBLY
180
A6286320719
WEB
182
A6286320013
ANGLE FRONT RIGHT, Replaced By: A6286320313
184
A6286320319
WEB
186
A6286341316
REINFORCEMENT TOP
188
A6286340111
PLATE
190
A6286321119
WEB
192
A6286321719
WEB
198
A6286326514
SUPPORT
200
A6286323040
SUPPORT
