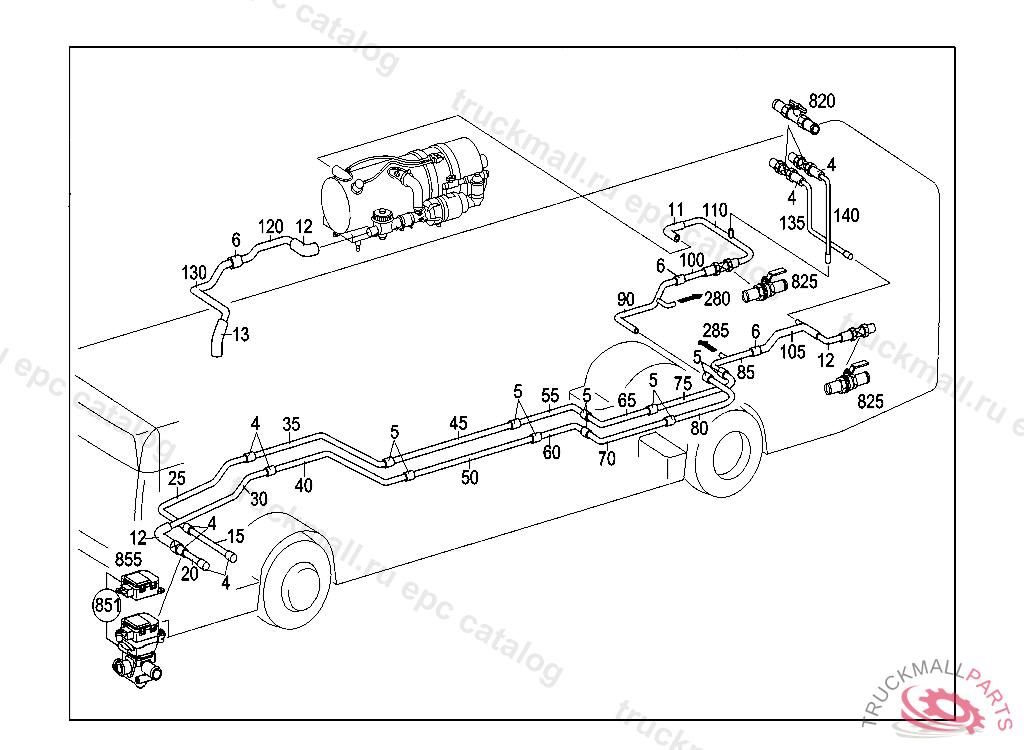

Поз.
Артикул
Описание
4
HOSE SILICONE 22 X 31 X240 MM, TO BE ADAPTED DURING ASSEMBLY
4
HOSE22X29X910MM, TO BE ADAPTED DURING ASSEMBLY
4
HOSE AIR COMPRESSOR CONNECTION 240 MM, ORDER BY THE METER
4
HOSE SILICONE 22 X 31 X160 MM, TO BE ADAPTED DURING ASSEMBLY
4
HOSE SILICONE 22 X 31 X 100 MM, TO BE ADAPTED DURING ASSEMBLY
4
HOSE BLUE 22 X 29 X 460 MM, TO BE ADAPTED DURING ASSEMBLY
5
HOSEA28, B37, L100
5
HOSE FROM WATER PUMP TO EXPANSION TANK 28X37X80,5 022370 ORDER BY THE METER
6
HOSE80 MM, OM 326,L UP TO CHASSIS 004265,LP UP TO CHASSIS 001437 ORDER BY THE METER
6
HOSEA38, B50, L100
11
HOSE BLUE 22 X 31 MM
11
MOLDED HOSE FROM HEATING WATER PIPE TO HEATER
11
MOLDED HOSE 90-DEGREE ARC 18MM
11
HOSE SILICONE 18 X 27 MM 90°
11
HOSE22 X 31 MM90°
11
HOSE SILICONE 38 X 50 MM90°
11
HOSE 90-DEGREE ARC D38MM
12
HOSE FEED TO FRONT END HEATER UNIT 22 X 30 MM120°
12
HOSE SILICONE 38 X 50 MM120°
12
HOSE CONNECTION TO HEATER UNIT 18 X 27 MM
12
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3058321223
13
HOSE COOLING WATER LINE,021573
13
HOSE BLUE 38 X 50 MM143°
15
PIPE LINE RETURN 318 MM
20
PIPE LINE FEED 135 MM
25
PIPE LINE RETURN 1247 MM
30
PIPE LINE FEED 1300 MM
35
PIPE LINE RETURN 1195 MM
40
PIPE LINE FEED 1145 MM
45
PIPE LINE RETURN O 28 MM
50
PIPE LINE FEED O 28 MM
55
PIPE LINE
60
PIPE LINE
65
PIPE LINE
70
PIPE LINE
75
PIPE LINE
80
PIPE LINE
85
PIPE LINE RETURN
90
PIPE LINE FEED
100
PIPE LINE
105
PIPE LINE
105
PIPE LINE
110
PIPE LINE
120
PIPE LINE
130
PIPE LINE
135
PIPE LINE
140
PIPE LINE
280
CONNECTORO 22 MM
280
PIPE LINE
285
PIPE LINE
820
SHUT-OFF VALVE3/4"-22
825
SLIDE
851
VALVE THREE-WAY VALVE
851
VALVE , Replaced By: A0038305784
851
VALVE THREE-WAY VALVE, Replaced By: A0048301684
855
ELECTRIC MOTOR , Replaced By: A0068207842
855
SERVO-D.C. W.GEARBOX
999
PIPE LINE FEED, HEATER ON THE BEHIND FRONT AXLE
999
PIPE LINE RETURN
