O530 - CITARO MUE 13M, 2-TUERER
628.487
82 ELECTRICAL SYSTEM

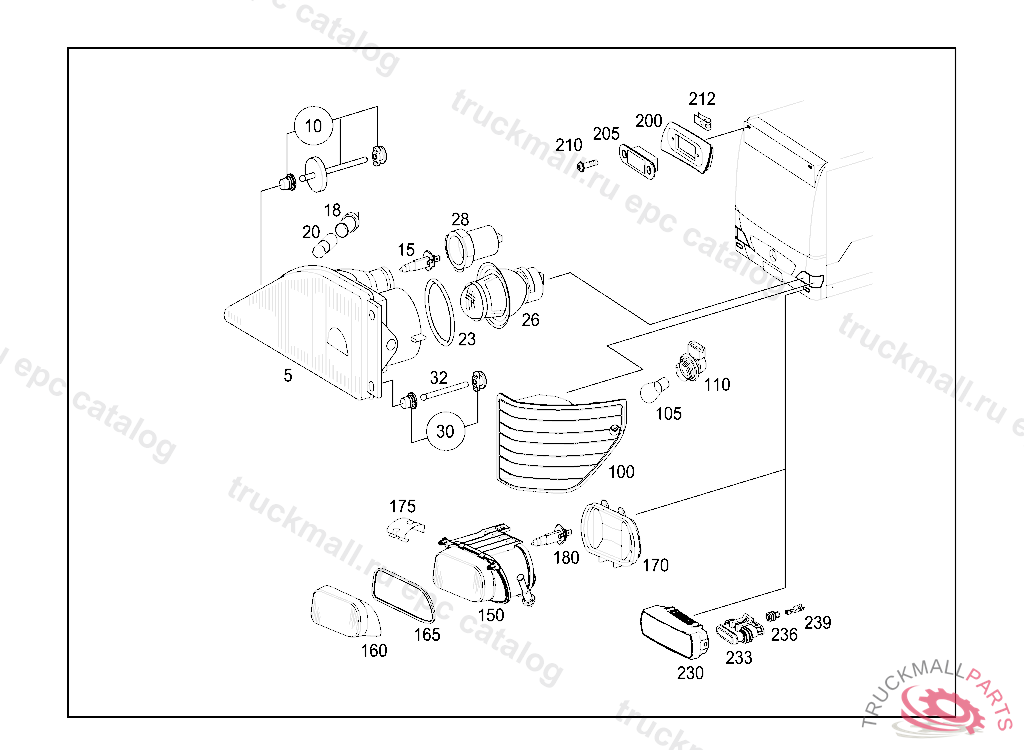

150 HEADLAMP,BLINKER-AND-POSITION LAMP, FRONT, BULBS

Mercedes A0019845829 - Болт

O530 - CITARO MUE 13M, 2-TUERER 628.487

82 ELECTRICAL SYSTEM - 150 HEADLAMP,BLINKER-AND-POSITION LAMP, FRONT, BULBS

Поз.
Артикул
Описание
5
A0028205161
LIGHTING UNIT FRONT RIGHT
5
A0028205061
LIGHTING UNIT FRONT LEFT
10
A6288200524
BRACKET HEADLAMP
15
N072601024270
BULB24V,70W
18
A0018262382
LAMP SOCKET
20
N072601024900
BULB24 V
23
A0018265080
SEAL
26
A0028261678
REFLECTOR
28
A0008201249
TS-CAP HIGH BEAM
28
A0008201349
TS-CAP LOW BEAM
30
A6289910071
RETAINING CLIP
32
A0009933360
JOINT BALL HEAD TOP M6X76
32
A6288200824
BRACKET PARTS KIT,BOTTOM
32
A0039902022
SCREW TOP M6X76, Replaced By: A0009933360
100
A0018205821
BLINKER LAMP FRONT LEFT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.01.2006
100
A0018209121
BLINKER LAMP FRONT LEFT, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 02.01.2006
100
A0018205921
BLINKER LAMP FRONT RIGHT, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.01.2006
100
A0018209221
BLINKER LAMP FRONT RIGHT, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 02.01.2006
105
N000000000065
YELLOW BULB TAILLAMPS 24V-21W
110
A0008260162
SOCKET BLINKER LAMP
150
A0005400163
FOGLAMP RIGHT
150
A0005400063
FOGLAMP LEFT
160
A0048262290
LENS RIGHT
160
A0048262190
LENS LEFT
165
A0018265380
SEAL LEFT AND RIGHT
170
A0008266724
COVERING LEFT AND RIGHT
175
A0008266684
RETAINING CLAMP. SPRING , Replaced By: A1408260284
180
N072601024270
BULB24V,70W
200
A6288260459
RIM TOP LEFT
200
A6288260559
RIM TOP RIGHT
205
A0038203256
POSITION LAMP. EXTERIOR LAMP POSITION LAMP LED
205
A0038202056
EXTERIOR LAMP
210
N000000000476
TAPPING SCREW3,5X13
210
A0019845829
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
212
A0049943045
CLIP FASTENER
230
A6288200456
DAYTIME RUNNING LIGHTLED
233
A0135451926
PIN BUSHING HOUSING 3-POLE
236
A0005456280
GASKET. BLIND PLUG
236
A0005457380
CORE BUNDLE SEALING1.0-2.5 MM2
239
A0145452026
PIN BUSHING1,0 - 1,5
