Главная
›
Mercedes
›
BUS
›
O530 - CITARO MUE 13M, 2-TUERER
›
628.487
›

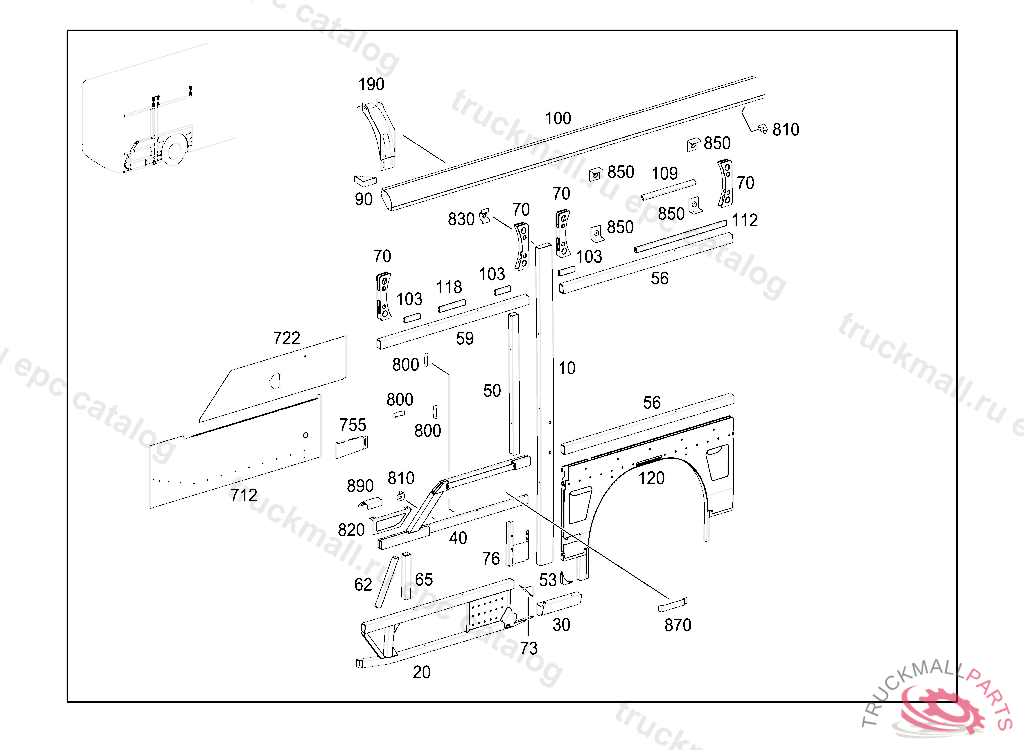

63 SIDE PANELS
›
150 LEFT FRAMEWORK IL. 1
Mercedes A6286342816 - VERSTAERKUNG
O530 - CITARO MUE 13M, 2-TUERER 628.487
63 SIDE PANELS - 150 LEFT FRAMEWORK IL. 1
Поз.
Артикул
Описание
10
A6286303810
PILLAR
20
A6286302225
SUPPORT
30
A6286304325
SUPPORT
40
A6286304640
SUPPORT DRIVER'S WINDOW
50
A6286310210
PILLAR PART DRIVER'S WINDOW
53
A3576310032
CONNECTION
56
A6286320440
SUPPORT
59
A6286320840
SUPPORT
62
A6286333205
STRUT40 X 30 X 2 X 383, TO BE ADAPTED DURING ASSEMBLY
65
A6286333405
STRUT
70
A6286341316
REINFORCEMENT TOP
73
A6286342716
REINFORCEMENT
76
A6286340231
CONSOLE
90
A3576220716
REINFORCEMENT
100
A6286305025
SUPPORT
103
A6286028118
RAIL LENGTH AVAILABLE: 2460 MM, TO BE ADAPTED DURING ASSEMBLY
109
A6286028118
RAIL LENGTH AVAILABLE: 2460 MM, TO BE ADAPTED DURING ASSEMBLY
112
A6286028118
RAIL LENGTH AVAILABLE: 2460 MM, TO BE ADAPTED DURING ASSEMBLY
118
A6286028118
RAIL LENGTH AVAILABLE: 2460 MM, TO BE ADAPTED DURING ASSEMBLY
120
A6286302627
PANELLING FRONT AXLE,LEFT
190
A6286020232
REINFORCEMENT
712
A6286022109
COVERING
722
A6286022033
COVERING
722
A3116021708
COVER
755
A6286342816
REINFORCEMENT
800
A3016020014
BRACKET
810
A3016145914
BRACKET
820
A3116023676
BRACKET
830
A3056000014
BRACKET
850
A3056102812
ANGLE
870
A6286025678
BRACKET
870
A6286020836
BRACKET , Replaced By: A6286025678
890
A6286026077
BRACKET
