O530 - CITARO MUE 13M, 2-TUERER
628.487
69 COVERING AND LINING

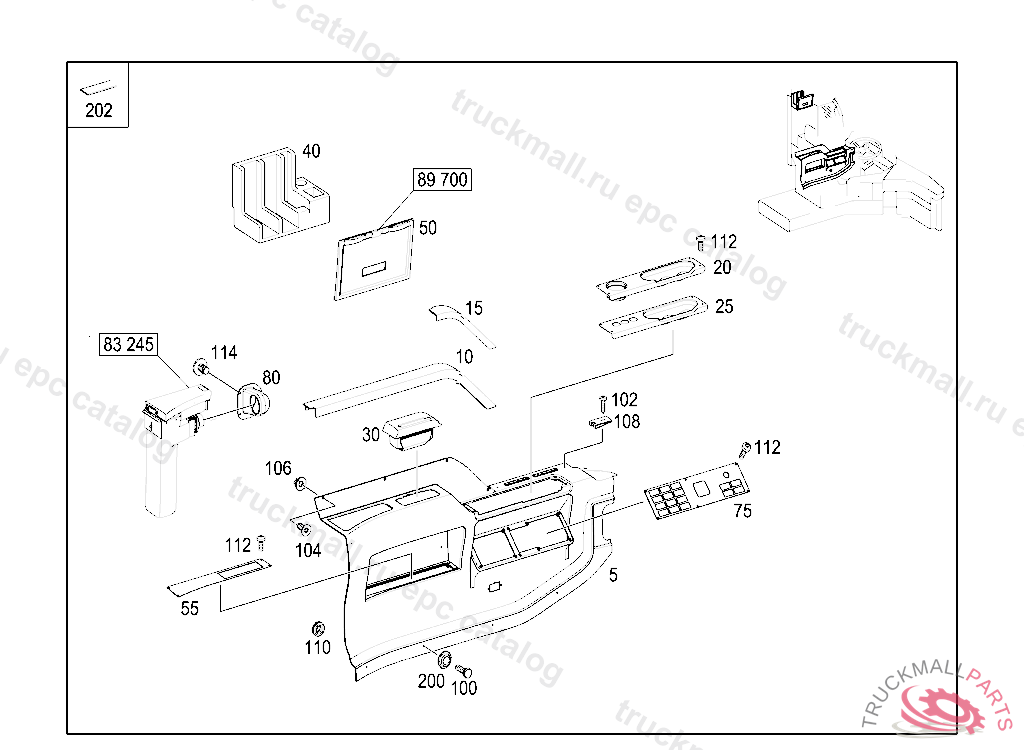

067 INTERIOR TRIM,DRIVER'S COCKPIT IL. 1

Mercedes A6286911330 - ABDECKUNG

O530 - CITARO MUE 13M, 2-TUERER 628.487

69 COVERING AND LINING - 067 INTERIOR TRIM,DRIVER'S COCKPIT IL. 1

Поз.
Артикул
Описание
5
A6286902653
PANELLING
10
A6286904653
PANELLING , NO.7C52I.......I.......I I II....... I ....... I ....... I NR.7E88 I ....... II
15
A6286927500
PANELLING
15
A6286902753
PANELLING , NO.7C52I.......I.......I I II....... I ....... I ....... I NR.7E88 I ....... II
20
A6286900074
POCKET
25
A6286915630
COVERING
30
A6286900174
POCKET
40
A6288680007
SHELL EMERGENCY EQUIPMENT
50
A6286900027
COVER EMERGENCY EQUIPMENT
55
A6286911330
COVERING
55
A6286911430
COVERING
55
A6286911730
COVERING
55
A6286913830
COVERING
55
A6286916736
COVER
55
A6286914930
COVER
55
A6286919330
COVER
55
A6286915030
COVER
55
A6286914830
COVER
55
A6286912936
COVER
55
A6286911630
COVERING
55
A6286914730
COVER
55
A6286913436
COVER
55
A6286911530
COVERING
75
A6286915930
COVERING
75
A6286912130
COVERING
75
A6286911930
COVERING
75
A6286916230
COVERING
75
A6286916030
COVERING
75
A6286911830
COVERING
75
A6286912030
COVERING
75
A6286916130
COVERING
80
A6286917230
COVERING
100
A0019905036
SHEET METAL SCREW42X16
102
N000000000462
TAPPING SCREW BRACKET MOUNTING 4.8X19
104
N000000000482
TAPPING SCREW. SCREW DOOR CONTACT TO BODY 3,9X9,5
106
N910112006001
NUT , Replaced By: N913023006001
108
A0039948945
SPRING NUT
110
A1109970481
GROMMET
110
A6019972381
GROMMET , Replaced By: A3819970881
112
N000000002487
HEXALOBULAR BOLT PLUG SOCKET TO BRACKET M4X10
112
N000000001553
SCREW. HEXALOBULAR BOLT BRACKET TO REAR PANEL M4X20
114
N000000000520
TAPPING SCREW BRACKET TO SUPPORT
200
A0009877045
LOCKING CAP
202
A0079893485
ADHESIVE TAPE9 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
202
A0069890585
ADHESIVE TAPE4.5X10 MM, ORDER BY THE METER
