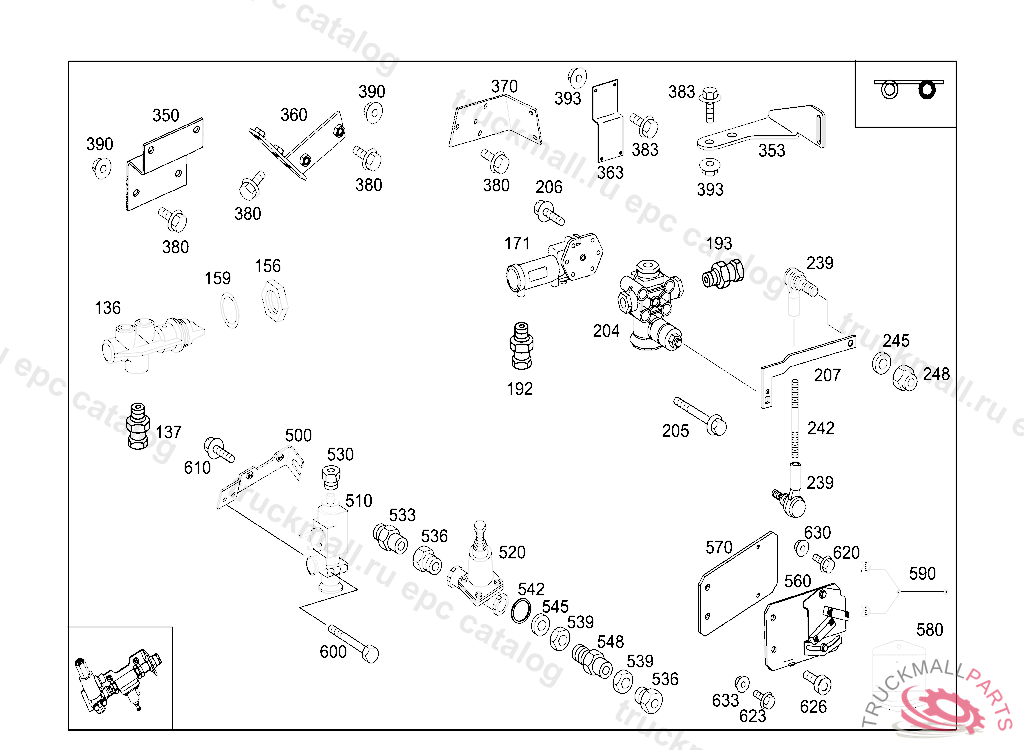

Поз.
Артикул
Описание
136
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
137
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
156
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
156
NUT VALVE TO BRACKET
159
WASHER
171
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
192
FITTING , Replaced By: A0089972572
192
CONNECTOR M10X1 (VOSS 230)
193
FITTING COMPRESSED AIR LINE TO TRANSMISSION VOSS
204
VALVE , Replaced By: A0003285030
205
HEXAGON HEAD BOLT. SCREW SUSPENSION EYE AND BRACKET TO CYLINDER HEAD M 8X70,TO 366 223 06 41
205
SCREW ON STOP M 8X65
205
SCREW VALVE TO BRACKET M 8X60
205
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
206
SCREW BRACKET TO CAB REAR PANEL M 8X20
207
LEVER RIGHT AIR SPRING VALVE
207
LEVER LEFT AIR SPRING VALVE
239
JOINTA13, Replaced By: A0019962545
242
ROD FROM AIR SPRING VALVE TO FRONT AXLE 8 X 90 MM
242
RODM8/140LG
245
WASHER EXHAUST MUFFLER TO STRAP
248
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
350
350
353
353
353
353
360
360
370
BRACKET BRACKET TO SOLENOID VALVE
370
BRACKET BRACKET TO SOLENOID VALVE
380
SCREW , Replaced By: N910143008002
380
SCREW BRACKET TO CAB REAR PANEL M 8X20
380
HEXAGON HEAD BOLT. SCREW SUSPENSION EYE AND BRACKET TO CYLINDER HEAD M 8X70,TO 366 223 06 41
380
SCREW SHIFT LEVER TO BRACKET M8X30
390
NUT HORN TO BRACKET M8
999
GUIDE SIGN VALVE TO CAB
