Mercedes N304032008006 - ГАЙКА М8

IBC FAHRGESTELL 2-ACHSER 634.400

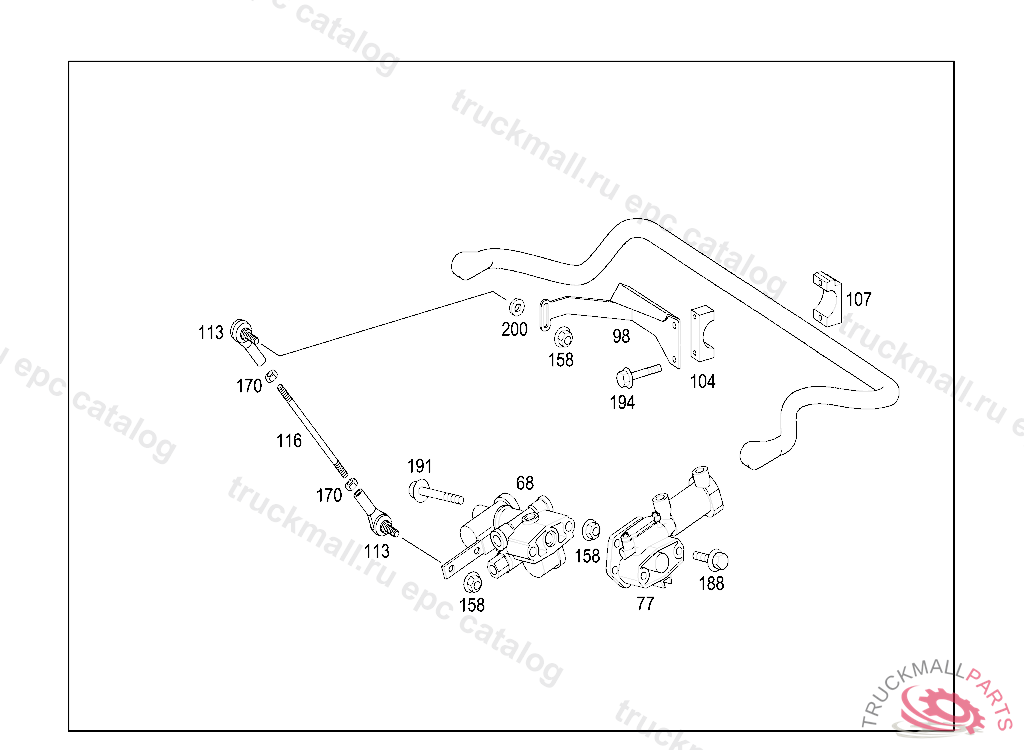

32 SPRINGS AND SUSPENSION - 060 COMPRESSED AIR LINES,LEVEL ADJUSTMENT VALVES IL. 2

Поз.
Артикул
Описание
68
A0003279225
VALVE FRONT AXLE
77
A0003277625
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
98
A6343270027
LEVER FRONT AXLE
104
A6293270021
COVER
107
A6293270121
COVER
113
A0019962545
ANGLE JOINTA13
113
A0003280063
JOINTA13, Replaced By: A0019962545
116
A6293280634
RODM8/160LG
158
N913023008003
NUT HORN TO BRACKET M8
158
N913023008002
NUT ENGINE MOUNTING M8
170
N304032008006
NUT
188
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
188
N000000000276
SCREW BRACKET TO SIDE MEMBER M8X20
191
A0019904804
SCREW , Replaced By: N910143008021
191
N910105008006
SCREW VALVE TO BRACKET M 8X60
191
N910105008064
SCREWM6X65
191
N910143008019
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
191
N910143008013
HEXALOBULAR BOLT. SCREW , Replaced By: N910105008024
194
N910105008045
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
194
N910143008017
SCREW 3/2-WAY VALVE TO BRACKET
200
N000125008445
WASHER PUMP TO CONSOLE
200
N000000003250
WASHER BRACKET TO CAB REAR PANEL
