Mercedes A6384200685 - ТЯГА

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.194 FROM IDENT-NR. 246706

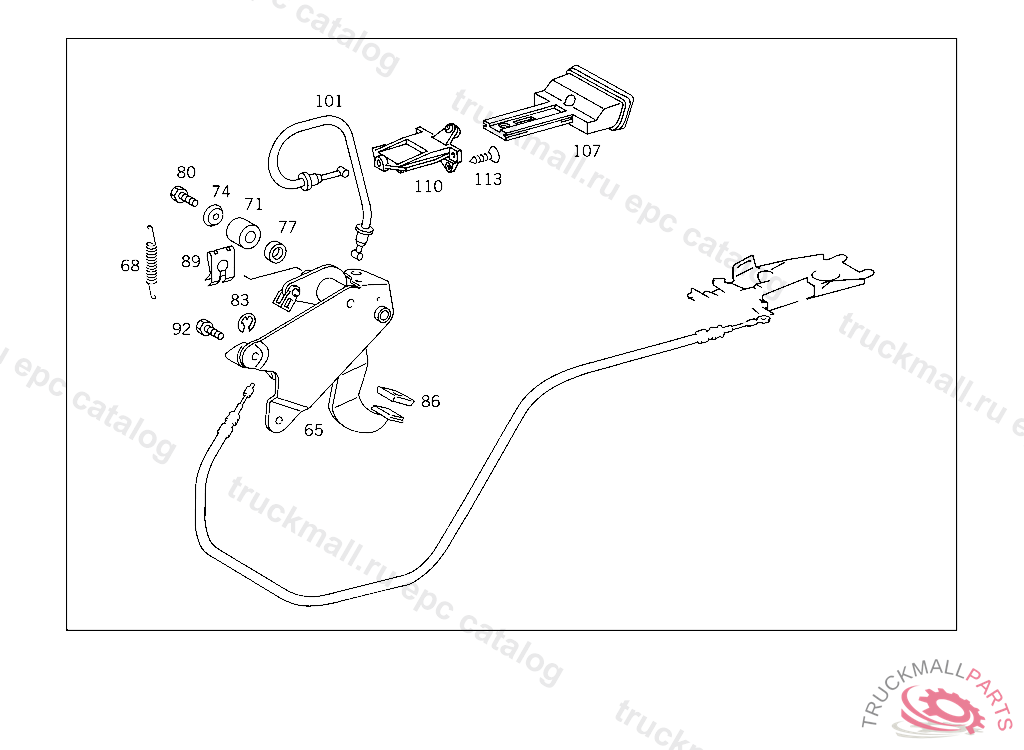

42 BRAKES - 450 PARKING BRAKE IL. 2

Поз.
Артикул
Описание
65
A6384200084
PARKING BRAKE
68
A1249930510
SPRING , Replaced By: A1249932810
71
A6384270086
DAMPING RING
74
A1244270276
WASHER
77
A6384270051
SPACER RING
80
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
83
N006799006003
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
86
A1244270382
PAD PEDAL
89
N912002016001
LOCK RADIATOR MOUNTING,BOTTOM, 763829 P 000001
92
N304017008032
SCREW OIL PAN TO CYLINDER CRANKCASE M8X16,977281
101
A6384200685
BRAKE CABLE
107
A6384270120
HANDLE ,NO.7C52I NO.8F63IIIII I
110
A1244200777
GUIDE
113
N914151005008
SCREW FOOT OPERATED PARKING BRAKE RELEASE HANDLE TO INSTRUMENT PANEL
