Mercedes A6384301029 - ПРОВОД

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.194 FROM IDENT-NR. 246706

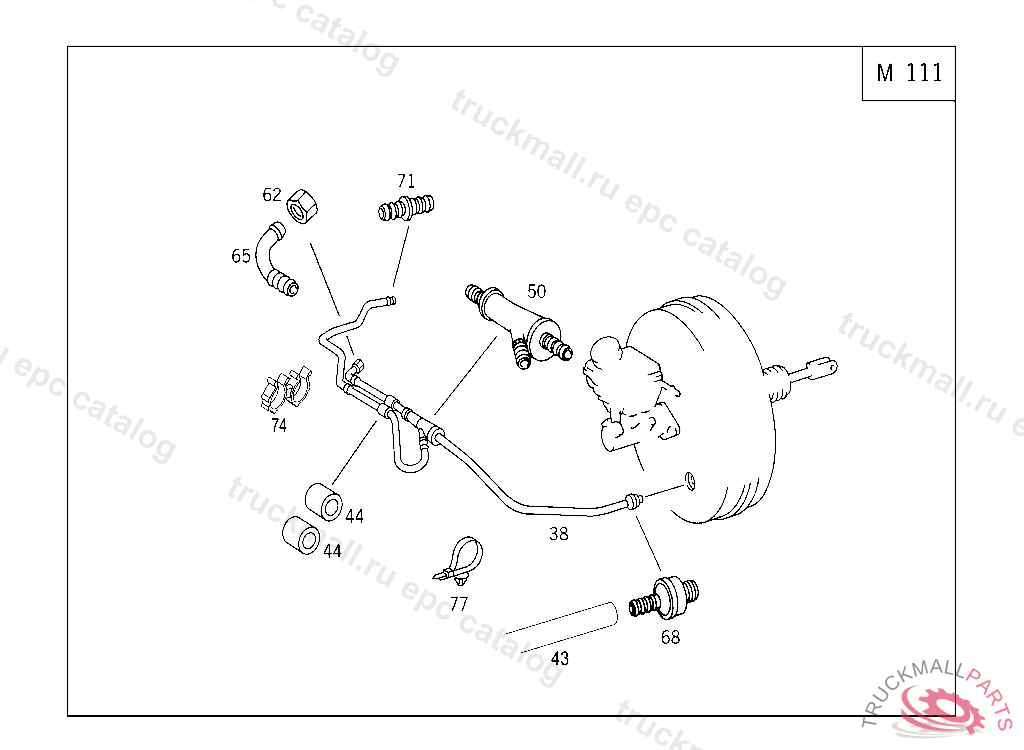

42 BRAKES - 620 BRAKE BOOSTER ASSEMBLY AND VACUUM LINES IL. 3

Поз.
Артикул
Описание
38
A6384301029
43
A0004358382
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
44
A0009974752
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
50
A0004316707
VALVE (CHECK VALVE), F 21882620011218
62
A0009907454
NUT
65
A1154350325
LINE VACUUM LINE, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
68
A0004316407
VALVE BRAKE BOOSTER ASSEMBLY
71
A1179901578
CONNECTOR
74
A0019952765
CLAMP14-16 MM
77
A0059976290
CABLE STRAP LINE MOUNTING 260X3.3MM
