Mercedes A6385400331 - MINUSLEITUNG

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 638.194 FROM IDENT-NR. 246706

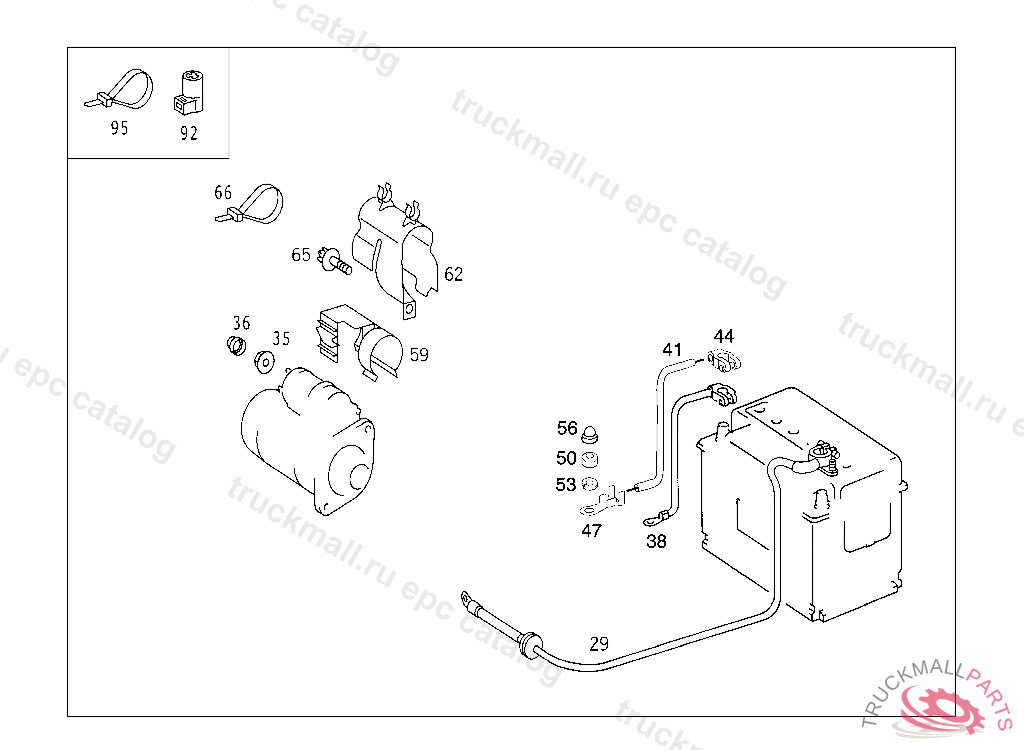

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 070 BATTERY, MOUNTING, AND BATTERY CABLES IL. 2

Поз.
Артикул
Описание
29
A6385400730
29
A6385400530
35
N910112006003
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
36
A6389880581
FASTENER BUTTON GROUND CABLE CONNECTION M6-SW,132407
38
A6385400131
NEG. CABLE
38
A6385400331
41
N922002035000
ELECTRIC CABLE FROM BATTERY TO BATTERY SUPPORT, ORDER BY THE METER
44
N072332009200
SOLDERING TERMINAL BATTERY CABLE
47
A0015465740
CABLE SHOE
50
N304032008005
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
53
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
56
A6389880681
FASTENER BUTTON GROUND CONNECTION M8-SW
62
A6385450846
65
N910142006001
HEXALOBULAR BOLT. SCREW POSITION SENDER UNIT TO CYLINDER CRANKCASE M 6X16
66
A0019974390
LOOM TIE TO MOUNT PLASTIC PIPING
92
A6389971890
CABLE STRAP HOLDER. LOOM TIE
95
A0029972490
CABLE TIE310X5MM
95
A0019978390
LOOM TIE LINE MOUNTING 280 MM
