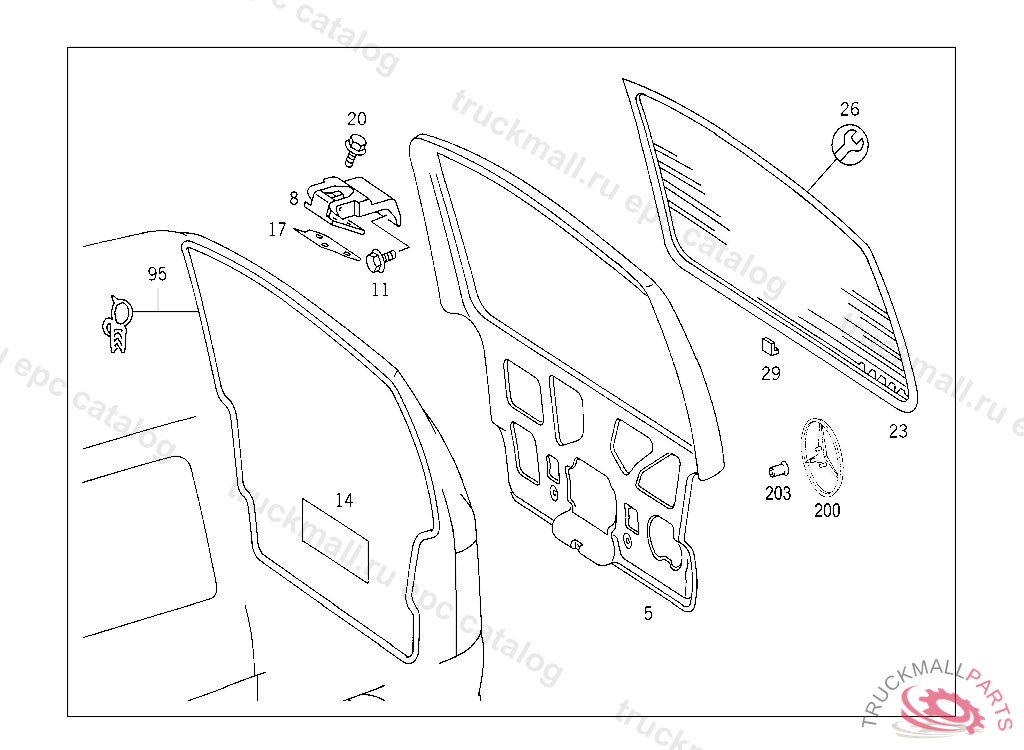

VITO 108 CDI, 110 CDI 112 CDI, 113, 114 - 638.194 FROM IDENT-NR. 246706 - 74 REAR PANEL DOORS
Поз.
Артикул
Описание
5
DOOR SHELL WITH CUTOUT FOR WINDOW,094571
5
DOOR SHELL , Replaced By: A6387401002
8
HINGE
11
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
14
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
17
PAD HINGE
20
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
23
23
GLASS PANE GREEN,HEATED
23
GLASS PANE COLORLESS, HEATED
23
26
REPAIR KIT , Replaced By: A2206700093
26
RS WINDOW SYS. - GLAZING GLAZING
29
BRACING LEFT AND RIGHT
95
SEAL
200
MERCEDES STAR TAILGATE
203
GROMMET MERCEDES STAR TO REAR LID
