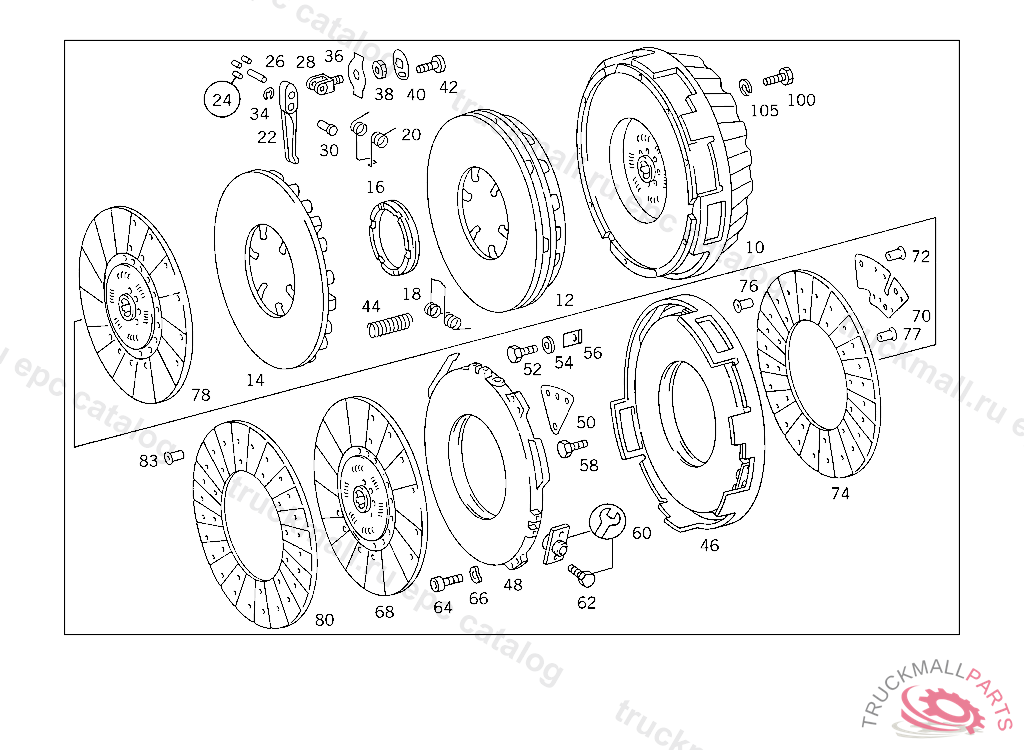

Поз.
Артикул
Описание
10
CLUTCH PRESSURE PLATE (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE
10
CLUTCH PRESSURE PLATE CLUTCH PRESSURE PLATE
10
CLUTCH PRESSURE PLATE (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
CLUTCH PRESSURE PLATE (TWIN PLATE CLUTCH) CLUTCH DISC LINING ASBESTOS-FREE
10
CLUTCH PRESSURE PLATE , Replaced By: A0042504104
12
CLUTCH PRESSURE PLATE
14
PRESSURE PLATE
16
FLANGE
18
SPRING SUSPENDED BELOW LEAF SPRING
20
SPRING SUSPENDED BELOW LEAF SPRING
22
RELEASE LEVER
24
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
26
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
28
BRACKET RELEASE LEVER
30
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
34
LOCK PLATE RELEASE LEVER TO SHAFT
36
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
38
NUT FOR BRACKETS
40
LOCK FOR BRACKETS
42
SCREW RELEASE LEVER,BRACKET
44
PRESSURE SPRING SPRING STEEL WIRE DIA., 5.50 MM
46
INTERMEDIATE PIECE , Replaced By: A0002501908
46
INTERMEDIATE PIECE
48
WASHER
50
LEAF SPRING , Replaced By: A0002525019
50
LEAF SPRING
52
SCREW
54
WASHER
56
REINFORCEMENT PLATE
58
SETSCREW. SCREW
58
SCREW , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1829900001
60
SLEEVE VALVE , Replaced By: A0002500361
60
SLEEVE VALVE (REPAIR KIT),SQUEEZE-OFF DEVICE HEX.HEAD SCREW M 6
60
SLEEVE VALVE (REPAIR KIT),SQUEEZE-OFF DEVICE HEX.SOCKET SCREW M 8
62
SCREWM 6
62
SCREWM 8
64
SCREW , Replaced By: N000912010038
64
SCREW
66
SPRING WASHER STEERING COLUMN BRACKET TO CAB
68
CLUTCH DISC ON TRANSMISSION END,ASBESTOS-FREE LINING
68
CLUTCH DISC ON TRANSMISSION END,ASBESTOS-FREE LINING
68
CLUTCH DISC ON TRANSMISSION END,ASBESTOS-FREE LINING
68
CLUTCH DISC ON TRANSMISSION END,ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
68
CLUTCH DISC ON TRANSMISSION END
70
LEAF SPRING
72
RIVET LEAF SPRING TO CLUTCH DISC
74
CLUTCH LINING ASBESTOS-FREE
74
CLUTCH LINING , Replaced By: A0012529410
74
CLUTCH LINING , Replaced By: A0022521010
76
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
77
RIVET LINING WITH CLUTCH DISC,5 563495
78
CLUTCH DISC ON ENGINE END, ASBESTOS-FREE LINING
78
CLUTCH DISC , Replaced By: A0072504703
78
CLUTCH DISC
78
CLUTCH DISC ON ENGINE END, ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
78
CLUTCH DISC ON ENGINE END, ASBESTOS-FREE LINING
80
CLUTCH LINING ASBESTOS-FREE
80
CLUTCH LINING , Replaced By: A0012529710
83
RIVET
100
SCREW CLUTCH TO FLYWHEEL
105
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE5 388425, Replaced By: A6242950028, +001A6242950140
