Поз.
Артикул
Описание

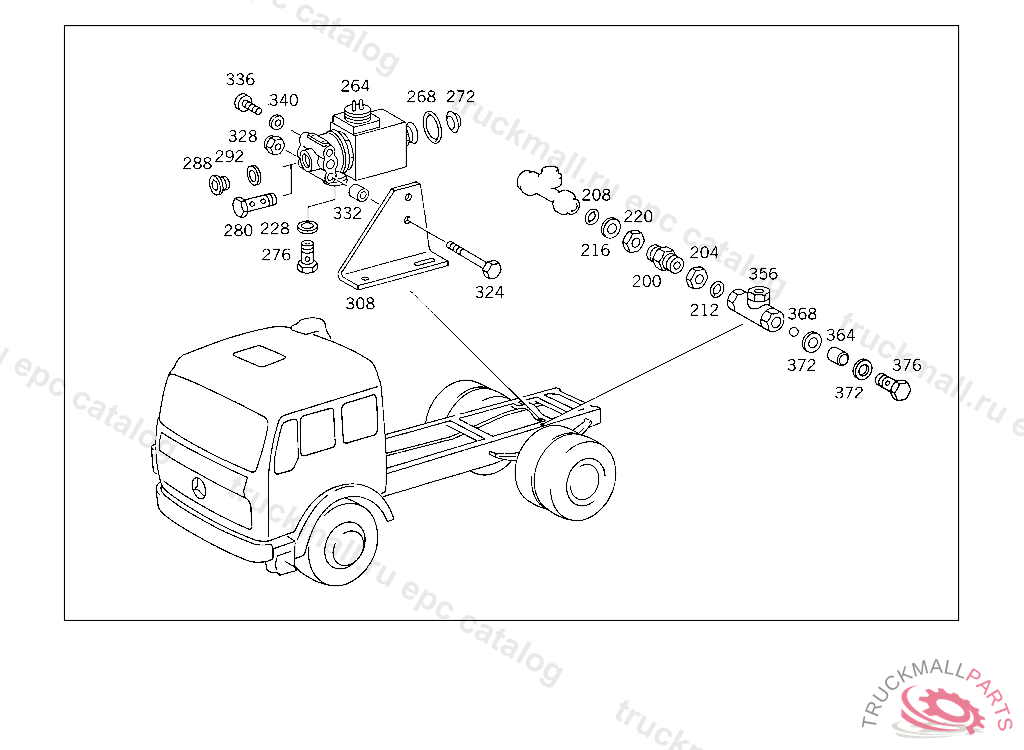

200
FITTING SHUTTLE VALVE,CONNECTION: "20",5 727399
200
FITTING SHUTTLE VALVE,CONNECTION: "20",5 727399
200
FITTING SHUTTLE VALVE,CONNECTION: "20",5 727399
204
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
208
O-RING CHECK VALVE TO AIR RESERVOIR
212
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
216
THRUST RING CHECK VALVE TO AIR RESERVOIR
216
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
220
NUT CHECK VALVE TO AIR RESERVOIR
228
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
228
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
228
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
264
VALVE (3/2-WAY SOLENOID VALVE) EKS
268
SEAL RINGWABCO
272
PROTECTIVE CAPWABCO
276
HOLLOW SCREW HEATING CONNECTION
276
HOLLOW SCREW HEATING CONNECTION
280
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
280
HOLLOW SCREW LINE CONNECTION
288
HOLLOW SCREW HEATING CONNECTION
288
HOLLOW SCREW HEATING CONNECTION
292
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
292
SEAL RING LINE CONNECTION
308
BRACKET SOLENOID VALVE,5 347348
324
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
324
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
324
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
328
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
328
NUT , Replaced By: N913004008001
332
SEAL RING VALVE TO VALVE
332
SEAL RING VALVE TO VALVE
332
SEAL RING VALVE TO VALVE
336
SCREW TO PLUG THE FREE CONNECTIONS
340
SEAL RINGBOSCH
356
VALVE TWO-WAY
356
VALVE TWO-WAY
364
VALVE BODYTO 002 429 95 44
368
BALLTO 003 429 22 44
372
GASKETTO 003 429 22 44
376
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
376
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
376
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
999
BANJO UNION AT AIR RESERVOIR,4 484801
999
T-FITTING EXHAUST BRAKE 3/2-WAY VALVE
999
ELBOW FITTING RELAY VALVE,CONNECTIONS: "21,22"
999
FITTING DELIVERY LINE TO PUMP
999
FITTING 3/2-WAY VALVE
999
GASKET KITKNORR
999
FITTING RELAY VALVE,CONNECTION "20",LEFT
999
SEAL RINGBOSCH
999
GUIDE BUSHING TWO-WAY VALVE TO FRAME
999
SPACER TUBE , Replaced By: A3094310249
999
LINE FROM BRAKE POWER REGULATOR TO 2/2-WAY VALVE, NOT USED
999
BRACKET 3/2-WAY VALVE,5 328806
999
BRACKET SOLENOID VALVE,5 347349
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW BRACKET TO EXHAUST PIPE,5 528482
999
SCREW CONTROL VALVE
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
NUT STRAP TO BRACKET
999
NUT , Replaced By: N910113010000
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
