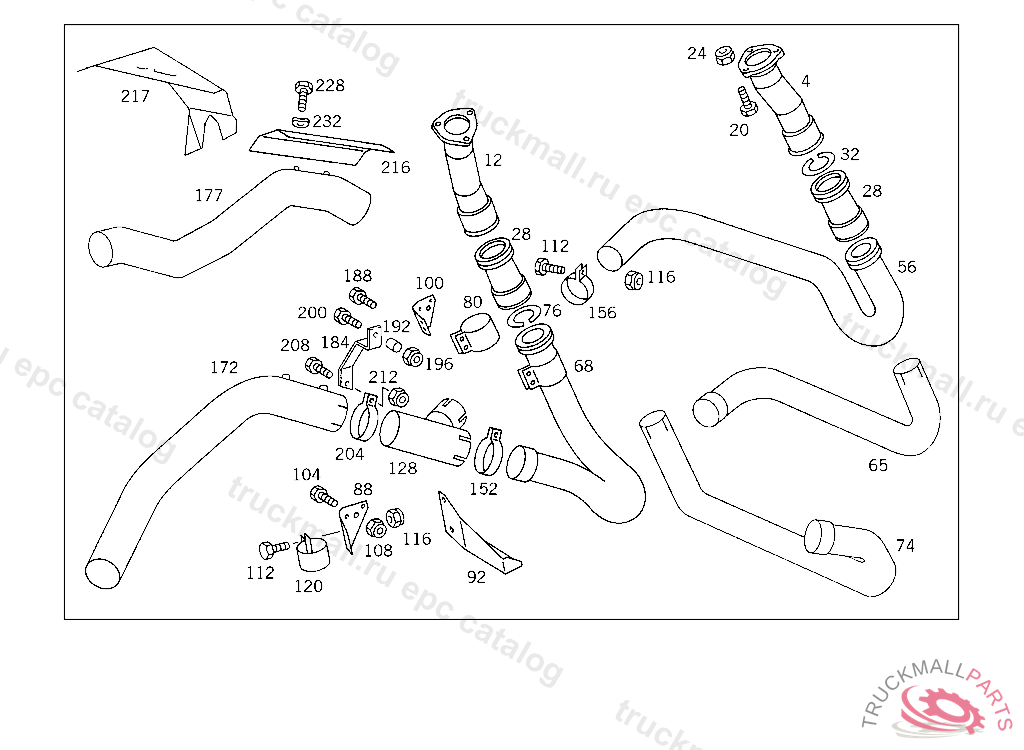

Поз.
Артикул
Описание
4
CONNECTOR LEFT,5 129244
4
CONNECTOR LEFT,5 129244
12
CONNECTOR RIGHT,5 129244
12
CONNECTOR RIGHT FRONT
20
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
20
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
20
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD 12X70
20
SCREW BRACKET TO SIDE MEMBER M 12X40
20
SCREW CONNECTOR TO EXHAUST MANIFOLD
20
SCREW , Replaced By: N000931012186
20
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X65
24
NUT CONNECTOR TO EXHAUST MANIFOLD
28
CONNECTOR LEFT
28
CONNECTOR RIGHT,5 556116
28
CONNECTOR LEFT
32
SEAL RING ,5 129244
56
EXHAUST PIPE FRONT,REAR LEFT PART,5 129245
56
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
56
EXHAUST PIPE FRONT,REAR LEFT PART,5 595052
56
EXHAUST PIPE FRONT,REAR LEFT PART
56
EXHAUST PIPE FRONT,REAR LEFT PART,5 130488
56
EXHAUST PIPE FRONT,REAR LEFT PART,5 129244
65
EXHAUST PIPE FRONT,REAR LEFT PART
68
EXHAUST PIPE FRONT,REAR RIGHT PART,5 130488
68
EXHAUST PIPE FRONT,REAR RIGHT PART,5 595052
68
EXHAUST PIPE FRONT,REAR RIGHT PART,5 1109185 129244
68
EXHAUST PIPE FRONT,REAR RIGHT PART,5 110917
74
EXHAUST PIPE FRONT,REAR RIGHT PART
74
EXHAUST PIPE FRONT,REAR RIGHT PART, EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 503960
74
EXHAUST PIPE FRONT,REAR RIGHT PART
74
EXHAUST PIPE FRONT,REAR RIGHT PART
74
EXHAUST PIPE FRONT,REAR RIGHT PART
74
EXHAUST PIPE FRONT,REAR RIGHT PART,5 503961
74
EXHAUST PIPE FRONT,REAR RIGHT PART
74
EXHAUST PIPE FRONT,REAR RIGHT PART,5 510115
74
EXHAUST PIPE FRONT,REAR RIGHT PART,5 130488
74
EXHAUST PIPE FRONT,REAR RIGHT PART,5 510114
76
SEAL RING ,5 129244
80
CLAMP EXHAUST PIPE TO BRACKET
88
BRACKET LEFT EXHAUST PIPE,5 129244
92
BRACKET LEFT EXHAUST PIPE
100
BRACKET RIGHT EXHAUST PIPE,5 129244
100
BRACKET RIGHT EXHAUST PIPE
100
BRACKET RIGHT EXHAUST PIPE
104
SCREW REAR EXHAUST PIPE TO MUFFLER
108
NUT STRAP TO BRACKET
108
NUT , Replaced By: N910113010000
112
SCREW , Replaced By: N304017008027
112
SCREW , Replaced By: N304017010002
112
SCREW BRACKET TO SIDE MEMBER
112
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
116
NUT STRAP TO BRACKET
116
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
116
NUT , Replaced By: N913004008001
116
NUT , Replaced By: N910113010000
120
CLAMP EXHAUST PIPE TO BRACKET
128
CLAMP AT CROSS MEMBER
128
FITTING INTERMEDIATE PIECE,FRONT,5 1109185 193594
128
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
152
CLAMP EXHAUST PIPE
156
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
156
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
156
CLAMP INTERMEDIATE PIECE
156
CLAMP , Replaced By: N071555094502
172
EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER,5 193594
172
EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER,5 193594
177
EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER,5 224330
177
EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER,5 224331
177
EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER,5 510115
184
BRACKET SHOCK ABSORBER,5 523852
184
BRACKET ,5 153110, Replaced By: A6244920341
184
BRACKET , Replaced By: A6244920341
184
BRACKET AT SIDE MEMBER,5 521311
184
BRACKET BEARING BRACKET,5 153109
188
SCREW BRACKET TO CAB CONSOLE,K 035197
188
SCREW BEARING BRACKET TO FRAME
188
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
188
SCREW BRACKET TO SIDE MEMBER
192
SPACER TUBE BEARING BRACKET TO SIDE MEMBER
196
NUT COMBINATION CYLINDER TO BEARING BRACKET
196
NUT STRAP TO BRACKET
196
NUT , Replaced By: N910113010000
196
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
200
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
200
SCREW REAR EXHAUST PIPE TO MUFFLER
204
CLAMP EXHAUST PIPE
204
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
204
CLAMP EXHAUST PIPE
204
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
204
CLAMP , Replaced By: N071555090502
204
CLAMP , Replaced By: A6554920340
208
SCREW , Replaced By: N304017008027
208
SCREW , Replaced By: N304017010002
208
SCREW BRACKET TO SIDE MEMBER
208
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
208
SCREW REAR EXHAUST PIPE TO MUFFLER
212
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
212
NUT STRAP TO BRACKET
212
NUT , Replaced By: N913004008001
212
NUT , Replaced By: N910113010000
216
PROTECTIVE PLATE , Replaced By: A6484920030
216
PROTECTIVE PLATE EXHAUST PIPE
217
PROTECTIVE PLATE EXHAUST PIPE
228
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
228
SCREW , Replaced By: N304017008008
232
SPRING WASHER , Replaced By: N000137008212
232
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SPACER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6483310026
999
REAR EXHAUST PIPE (TAIL PIPE)
999
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW BRACKET TO SUPPORT
