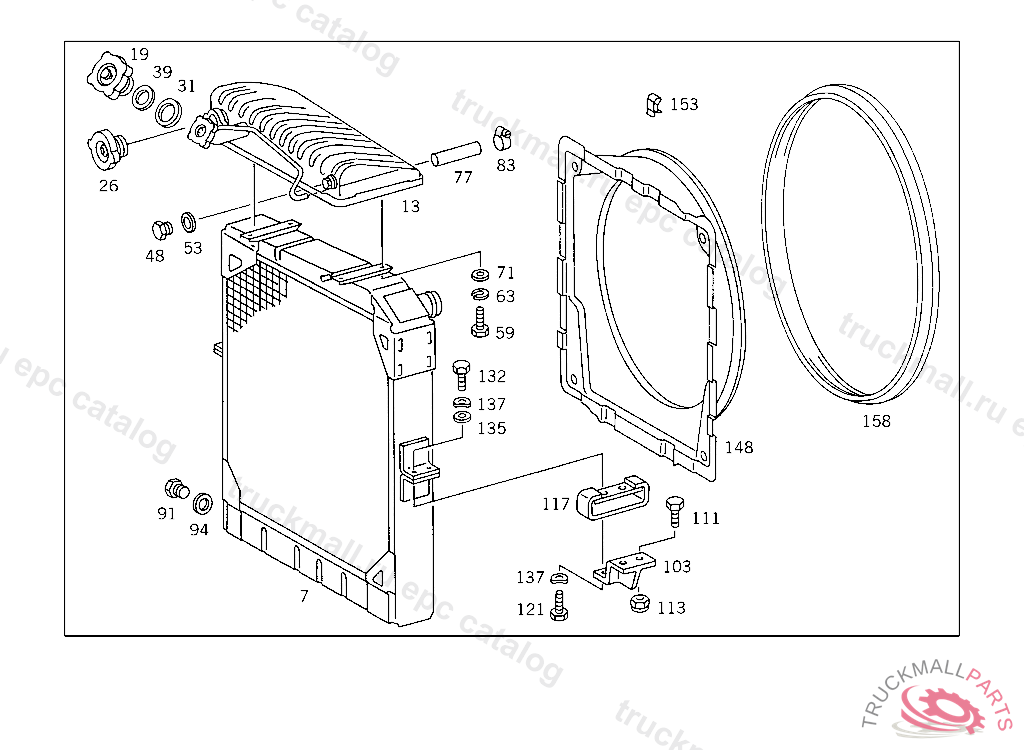

Поз.
Артикул
Описание
7
RADIATOR
7
RADIATOR"BEHR"
7
RADIATOR , Replaced By: A0015013701
13
TANK EXPANSION TANK
19
RADIATOR CAP FILLER NECK
19
RADIATOR CAP FILLER NECK
26
RADIATOR CAP CENTRAL
26
RADIATOR CAP CENTRAL
31
GASKET O.D., 52 MM
39
GASKET O.D., 37 MM
48
SCREW PLUG WATER DRAIN
53
SEAL RING FUEL LINE TO FEED PUMP
59
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
59
SCREW , Replaced By: N304017008016
63
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
71
WASHER , Replaced By: N000125008443
71
WASHER EXHAUST MUFFLER TO STRAP
77
HOSE OVERFLOW, EXPANSION TANK
83
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
83
CLAMP , Replaced By: N916017011001
91
SCREW PLUG WATER DRAIN
94
SEAL RING FUEL LINE TO FEED PUMP
113
NUT SUPPORT TO SIDE MEMBER
117
RUBBER MOUNTING RADIATOR
121
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
121
SCREW , Replaced By: N304017010028
132
SCREW END PIECE TO EXHAUST PIPE M 10X25
135
WASHER RADIATOR TO RUBBER MOUNTING
135
WASHER , Replaced By: N000125010532
137
SPRING WASHER STEERING COLUMN BRACKET TO CAB
153
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
158
BOOT FAN SHROUD TO FAN RING
999
SCREW PLUG , Replaced By: N007604014101
