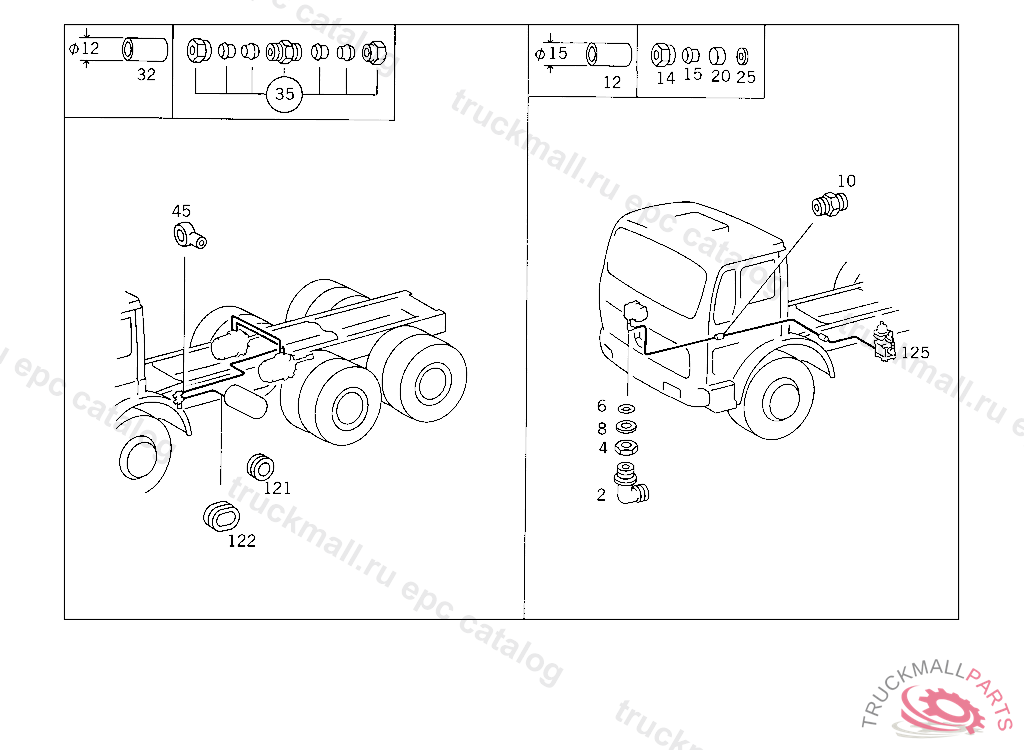

Поз.
Артикул
Описание
2
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
4
NUT SUCTION LINE TO OIL PUMP
6
SEAL RING LINE CONNECTION
8
THRUST RING SUCTION LINE TO OIL PUMP
10
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
12
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
14
UNION NUT BUTT SCREW CONNECTION
15
GLAND LINE CONNECTION
20
THRUST RING BUTT SCREW CONNECTION
25
SEAL RING , Replaced By: N007603012121
25
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
32
LINE FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR 9X12 MM, LENGTH AVAILABLE 3000 MM
35
FITTING , Replaced By: A0029906171
35
FITTING (PARTS KIT),LINE RUPTURE
45
BANJO UNION , Replaced By: N915052009009
45
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
121
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
122
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
125
PRESSURE REGULATORBOSCH
125
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
125
PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
125
PRESSURE REGULATORWABCO
999
ELBOW FITTING , Replaced By: A0004294638
999
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
VALVE
999
STRAINER FILTER ELEMENT
999
VALVE SOLENOID SWITCH
999
VALVE (REGULATING VALVE),5 023386 TO BE ADAPTED DURING ASSEMBLY
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, NOT USED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SEALING CORD38X8 MM
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
SEAL RING34.6X2.6 MM
999
SEAL RING28.4X2.6 MM
999
SEAL RING56X1.7 MM
999
SEAL RING
999
SEAL RING
999
BRACKET AIR DEHYDRATOR
999
BRACKET AIR DEHYDRATOR
999
BRACKET BREATHER LINE TO SIDE MEMBER
999
GUIDE SIGN AUTOMATIC LOAD-DEPENDING BRAKE
999
BRACKET , Replaced By: A6204293640
999
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES
999
GUIDE SIGN LOAD-DEPENDING BRAKE, 623.407 FROM CHASSIS 5 032813, 623.408 FROM CHASSIS 5 030604
999
BALL PIVOT BEARING BRACKET, IN CASE OF CAST AXLE
999
BRACKET REAR AIR RESERVOIR, NOT USED
999
HEX. NUT M 12 DIN 934-5 S. NUT , Replaced By: N000934012021
999
NUT STRAP TO SUPPORT,5 149419
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
