Поз.
Артикул
Описание

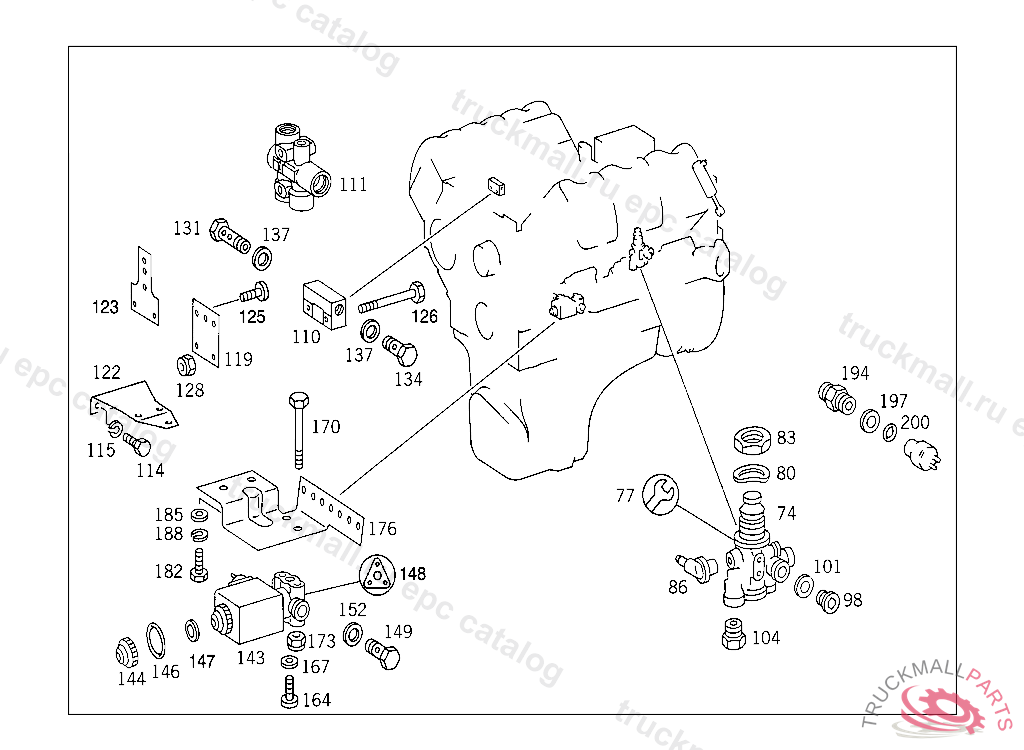

74
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
74
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
77
REPAIR KIT 3/2-WAY VALVE WABCO
77
REPAIR KIT 3/2-WAY VALVE BOSCH
80
SPRING WASHER AT CAB FLOOR
83
NUT SUCTION LINE TO OIL PUMP
86
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
86
BREATHER , Replaced By: A3933280065
98
SCREW PLUG , Replaced By: N000908012009
98
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
101
SEAL RING LINE CONNECTION
104
SCREW. UNION SCREW LINE CONNECTION
104
SCREW. UNION SCREW , Replaced By: A0009973734
110
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
119
BRACKET 3/2-WAY SOLENOID VALVE
126
SCREW TWO-WAY VALVE TO BRACKET
128
NUT TWO-WAY VALVE TO BRACKET
131
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
134
HOLLOW SCREW FUEL LINE TO FEED PUMP
134
HOLLOW SCREW , Replaced By: N915036010108
137
SEAL RING FUEL LINE TO FEED PUMP
143
VALVE (3/2-WAY SOLENOID VALVE) EKS
143
VALVE , Replaced By: A0049975736
144
PROTECTIVE CAPWABCO
146
SEAL RINGBOSCH
146
SEAL RINGWABCO
147
SEAL RINGBOSCH
148
GASKET KITKNORR
149
HOLLOW SCREW HEATING CONNECTION
152
SEAL RING LINE CONNECTION
164
SCREW TO PLUG THE FREE CONNECTIONS
167
SEAL RINGBOSCH
170
SCREW VALVE TO BRACKET
170
SCREW VALVE TO BRACKET, Replaced By: N304014008002
173
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
173
NUT , Replaced By: N913004008001
173
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
176
BRACKET 3/2-WAY SOLENOID VALVE
176
BRACKET 3/2-WAY SOLENOID VALVE
182
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
182
SCREW , Replaced By: N304017008016
185
WASHER , Replaced By: N000125008443
185
WASHER EXHAUST MUFFLER TO STRAP
188
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
194
FITTING CONNECTION TO STOP LIGHT SWITCH
194
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
197
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
197
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
200
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SHIM 3/2-WAY SOLENOID VALVE
