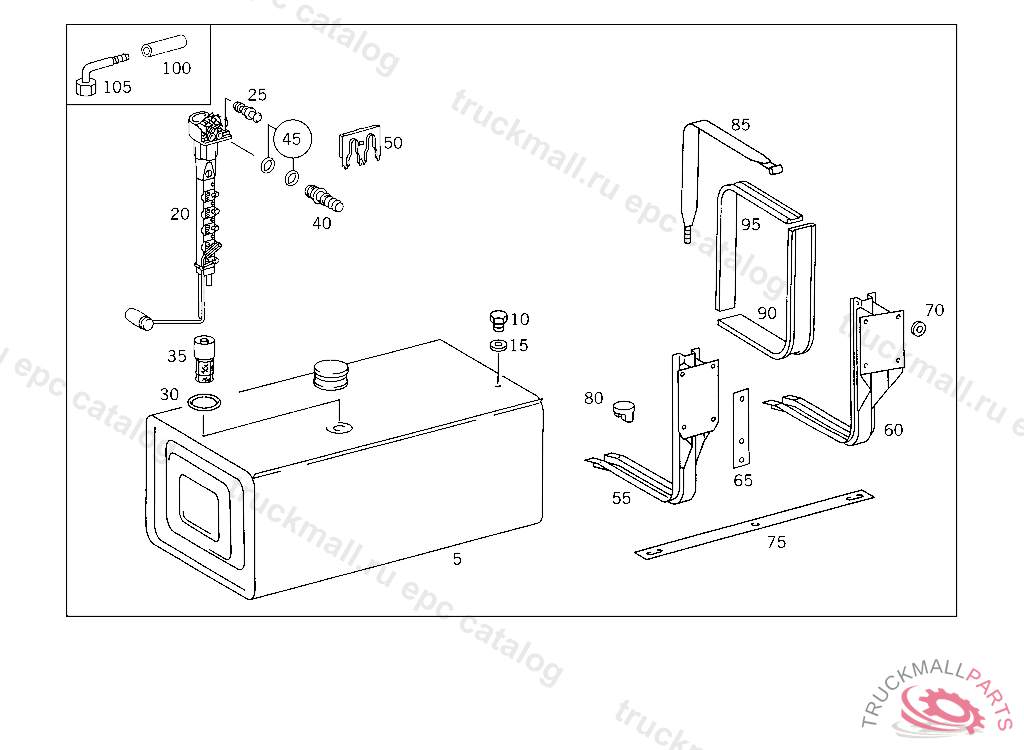

Поз.
Артикул
Описание
5
FUEL TANK400 L.,4 399369
10
SCREW PLUG AT TANK
15
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
20
SENDER UNIT FUEL GAUGE
25
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
30
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
35
FUEL STRAINER FUEL TANK,K 169123
40
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
40
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
40
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
45
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
50
LOCK FUEL GAUGE SENDER UNIT CONNECTION
55
SUPPORT REAR FUEL TANK
55
SUPPORT FRONT FUEL TANK
55
SUPPORT REAR TANK
55
SUPPORT FUEL TANK TO FRAME
55
SUPPORT FUEL TANK TO FRAME
55
SUPPORT FUEL TANK TO FRAME
55
SUPPORT
55
SUPPORT FUEL TANK, VERSION A VERSION B
55
SUPPORT REAR TANK,5 758498
55
SUPPORT FUEL TANK, UP TO 07.95
60
SUPPORT FUEL TANK TO FRAME
60
SUPPORT FUEL TANK
60
SUPPORT REAR FUEL TANK
60
SUPPORT FRONT FUEL TANK
60
SUPPORT REAR TANK,5 758498
60
SUPPORT REAR TANK,5 758497
60
SUPPORT REAR TANK
60
SUPPORT FUEL TANK TO FRAME
60
SUPPORT REAR TANK
60
SUPPORT FUEL TANK TO FRAME
60
SUPPORT FUEL TANK TO FRAME
60
SUPPORT FUEL TANK
65
SHIM SUPPORT TO SIDE MEMBER
70
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
75
STOP SUPPORTING RAIL
75
REINFORCEMENT FUEL TANK SUPPORT
75
REINFORCEMENT FUEL TANK SUPPORT
75
REINFORCEMENT FUEL TANK CONSOLE
80
STOP SUPPORTING RAIL
85
STRAP FUEL TANK TO SUPPORT
90
PAD FUEL TANK TO SUPPORT 1060 MM
90
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
95
PAD FUEL TANK TO CONSOLE
95
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
100
HOSE LEAK LINE
105
ELBOW FITTING RETURN
