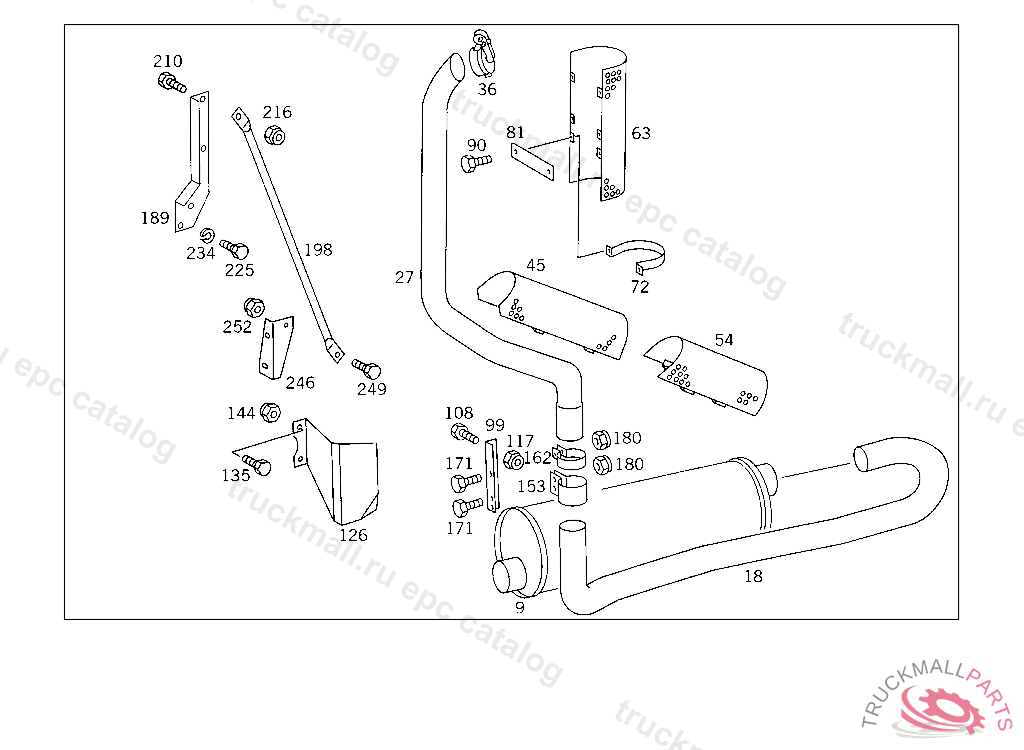

Поз.
Артикул
Описание
9
EXHAUST MUFFLER
18
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
18
CONNECTOR FROM CONNECTOR TO EXHAUST MUFFLER
27
END PIECE BEHIND CAB,UPWARD
27
END PIECE , Replaced By: A6524926914
36
FLAP (RAIN DEFLECTOR)
45
PROTECTIVE PLATE (HEAT SHIELD)
54
PROTECTIVE PLATE (HEAT SHIELD) 510 MM
63
PROTECTIVE PLATE (HEAT SHIELD)
72
CLAMP HEAT SHIELD TO TAILPIPE
72
CLAMP HEAT SHIELD TO TAILPIPE
72
CLAMP , Replaced By: A4374920440
81
BASE PLATE HEAT SHIELD TO TAILPIPE
81
BASE PLATE HEAT SHIELD TO TAILPIPE
90
SCREW BRACKET TO CROSS CONNECTION STRUT
90
SCREW BRACKET TO CROSS CONNECTION STRUT
90
SCREW , Replaced By: N304017008034
99
BRACKET TAIL PIPE
108
SCREW BRACKET TO SIDE MEMBER
108
SCREW BRACKET TO SIDE MEMBER
108
SCREW , Replaced By: N304017010002
117
NUT STRAP TO BRACKET
117
NUT STRAP TO BRACKET
117
NUT , Replaced By: N910113010000
126
PROTECTIVE PLATE (HEAT SHIELD)
135
SCREW BRACKET TO SIDE MEMBER
135
SCREW , Replaced By: N304017010002
144
NUT STRAP TO BRACKET
144
NUT , Replaced By: N910113010000
153
CLAMP EXHAUST PIPE TO BRACKET
162
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
162
CLAMP , Replaced By: N071555090502
171
SCREW BRACKET TO SIDE MEMBER
171
SCREW , Replaced By: N304017010002
180
NUT STRAP TO BRACKET
180
NUT , Replaced By: N910113010000
189
BRACKET BRACKET TO APPARATUS SUPPORT
198
BRACKET STRUT
198
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
210
SCREW BRACKET TO SIDE MEMBER
210
SCREW , Replaced By: N304017010002
216
NUT STRAP TO BRACKET
216
NUT , Replaced By: N910113010000
225
SCREW SUPPORT TO CROSS MEMBER M 10X28
234
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
246
BRACKET EXHAUST PIPE TO FENDER
249
SCREW END PIECE TO EXHAUST PIPE M 10X25
249
SCREW BRACKET TO SIDE MEMBER
249
SCREW , Replaced By: N304017010002
252
NUT STRAP TO BRACKET
252
NUT , Replaced By: N910113010000
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
SUPPORT REAR EXHAUST PIPE
999
PROTECTIVE PLATE FUEL TANK
999
EXHAUST PIPE FRONT,REAR PART
999
EXHAUST PIPE FRONT,REAR PART,5 308040
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE
999
CLAMP , Replaced By: A3434920340
999
EXHAUST PIPE FRONT
999
CONNECTOR
999
PROTECTIVE PLATE (HEAT SHIELD) 1380 MM
999
EXHAUST MUFFLER
999
EXHAUST PIPE FRONT EXHAUST PIPE
999
END PIECE
999
END PIECE
999
REAR EXHAUST PIPE
999
END PIECE REAR EXHAUST PIPE,5 758826
999
END PIECE TAIL PIPE,FRONT,5 758826
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
NUT CHECK VALVE TO AIR RESERVOIR
