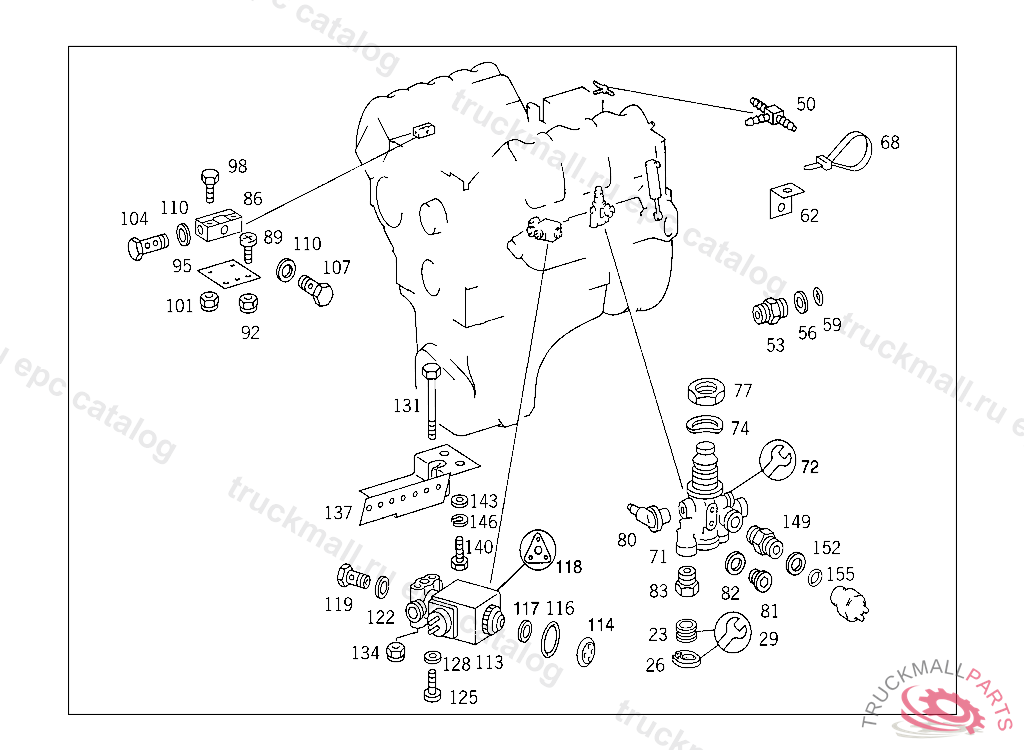

Поз.
Артикул
Описание
23
LOCK RING LINE CONNECTION
23
SEAL RING , Replaced By: A0009940747
26
LOCK LINE CONNECTION
26
LOCK , Replaced By: A0009945448
29
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
29
REPAIR KIT , Replaced By: A0309971748
50
T-FITTING EXHAUST BRAKE LINE CONNECTION
53
FITTING DELIVERY LINE TO PUMP
56
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
59
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
68
LOOM TIE LINE MOUNTING 280 MM
68
LOOM TIE LINE MOUNTING
71
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
71
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
72
REPAIR KIT 3/2-WAY VALVE BOSCH
72
REPAIR KIT 3/2-WAY VALVE WABCO
74
SPRING WASHER AT CAB FLOOR
77
NUT SUCTION LINE TO OIL PUMP
80
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
80
BREATHER , Replaced By: A3933280065
81
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
81
SCREW PLUG , Replaced By: N000908012009
82
SEAL RING LINE CONNECTION
83
SCREW. UNION SCREW LINE CONNECTION
83
SCREW. UNION SCREW , Replaced By: A0009973734
86
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
89
SCREW OIL TANK TO BRACKET
92
NUT PUMP TO BRACKET
92
NUT , Replaced By: N913004006001
95
BRACKET 3/2-WAY SOLENOID VALVE
98
SCREW TWO-WAY VALVE TO BRACKET
101
NUT TWO-WAY VALVE TO BRACKET
104
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
107
HOLLOW SCREW FUEL LINE TO FEED PUMP
107
HOLLOW SCREW , Replaced By: N915036010108
110
SEAL RING FUEL LINE TO FEED PUMP
113
VALVE (3/2-WAY SOLENOID VALVE) EKS
113
VALVE , Replaced By: A0049975736
114
PROTECTIVE CAPWABCO
116
SEAL RINGBOSCH
116
SEAL RINGWABCO
117
SEAL RINGBOSCH
118
GASKET KITKNORR
119
HOLLOW SCREW HEATING CONNECTION
122
SEAL RING LINE CONNECTION
125
SCREW TO PLUG THE FREE CONNECTIONS
128
SEAL RINGBOSCH
131
SCREW VALVE TO BRACKET
131
SCREW VALVE TO BRACKET, Replaced By: N304014008002
134
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
134
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
134
NUT , Replaced By: N913004008001
137
BRACKET 3/2-WAY SOLENOID VALVE
137
BRACKET 3/2-WAY SOLENOID VALVE
140
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
140
SCREW , Replaced By: N304017008016
143
WASHER EXHAUST MUFFLER TO STRAP
143
WASHER , Replaced By: N000125008443
146
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
149
FITTING CONNECTION TO STOP LIGHT SWITCH
149
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
152
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
152
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
155
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SHIM 3/2-WAY SOLENOID VALVE
