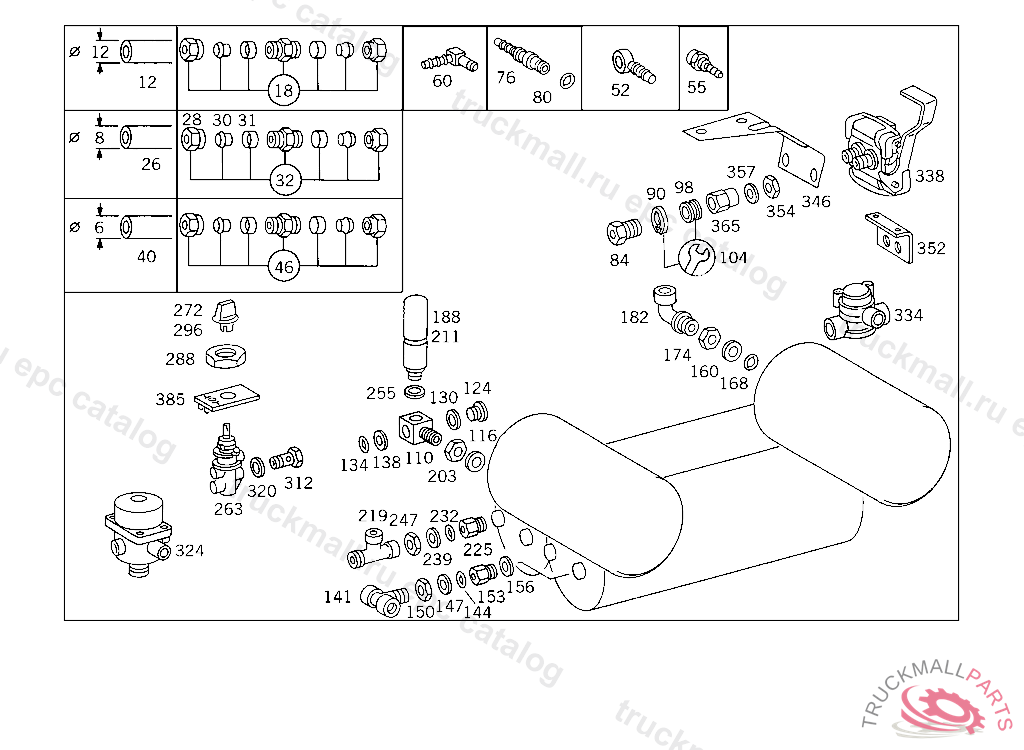

Поз.
Артикул
Описание
12
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
12
HOSE , Replaced By: A0009872827
18
FITTING (PARTS KIT),LINE RUPTURE
26
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
28
UNION NUT LINE CONNECTION
30
GLAND LINE CONNECTION
31
SLEEVE LINE CONNECTION
32
FITTING (PARTS KIT),LINE RUPTURE
40
PLASTIC PIPE RISING PIPE 4X6 MM
40
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
46
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
52
BANJO UNION HEATING CONNECTION,K 169122
52
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
55
FITTING
60
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
60
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
76
CONNECTOR DISTRIBUTOR TO CAB
76
CONNECTOR HOSE WIDTH, 6 MM, TO M22
76
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
76
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
80
SEAL RING
84
SCREW. UNION SCREW LINE CONNECTION
90
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
98
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
104
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
110
CROSS FITTING AIR RESERVOIR,CONNECTION: "32"
116
NUT CHECK VALVE TO AIR RESERVOIR
124
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
130
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
134
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
138
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
141
T-FITTING LINE CONNECTION
141
T-FITTING LINE CONNECTION
144
O-RING CHECK VALVE TO AIR RESERVOIR
144
PART NAME MISSING. SEAL RING , Replaced By: A0009870446
144
O-RING CHECK VALVE TO AIR RESERVOIR
147
THRUST RING CHECK VALVE TO AIR RESERVOIR
147
THRUST RING CHECK VALVE TO AIR RESERVOIR
147
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
150
NUT CHECK VALVE TO AIR RESERVOIR
150
NUT CHECK VALVE TO AIR RESERVOIR
153
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
153
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
153
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
153
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
156
SEAL RING VALVE TO VALVE,K 025179
156
SEAL RING VALVE TO VALVE,K 025179
160
THRUST RING CHECK VALVE TO AIR RESERVOIR
160
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
168
O-RING CHECK VALVE TO AIR RESERVOIR
174
NUT CHECK VALVE TO AIR RESERVOIR
182
DISTRIBUTOR CHECK VALVE,CONNECTION: "22",5 424435
188
VALVE PRESSURE LIMIT,K 025180
188
VALVE PRESSURE LIMIT,K 025180
188
VALVE ,K 025179, Replaced By: A0044297044
203
SEAL RING VALVE TO VALVE,K 025179
203
SEAL RING VALVE TO VALVE,K 025179
211
VALVE PRESSURE LIMIT M 22,K 025180
211
VALVE PRESSURE LIMIT M 22,K 025180
211
VALVE PRESSURE LIMIT M 22,K 025180
211
VALVE ,K 025179, Replaced By: A0044297244
211
VALVE ,K 025179, Replaced By: A0044297244
219
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
219
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
225
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
232
O-RING CHECK VALVE TO AIR RESERVOIR
239
THRUST RING CHECK VALVE TO AIR RESERVOIR
239
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
247
NUT CHECK VALVE TO AIR RESERVOIR
255
SEAL RING VALVE TO VALVE,K 025179
263
VALVE 3/2-WAY
272
ACTUATING PART
288
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
296
HANDLE 3/2-WAY VALVE TO BRACKET
312
HOLLOW SCREW FUEL LINE TO FEED PUMP
312
HOLLOW SCREW , Replaced By: N915036010108
320
SEAL RING FUEL LINE TO FEED PUMP
320
SEAL RING FUEL LINE TO FEED PUMP
324
VALVE (PRESSURE RATIO VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
334
VALVE (REDUCTION VALVE)
338
BRAKE LINE COUPLING DOUBLE BRAKE LINE COUPLING
346
BRACKET BRAKE LINE COUPLINGS,5 424436K 119510
346
BRACKET BRAKE LINE COUPLINGS,5 424436K 119510
346
BRACKET BRAKE LINE COUPLINGS,5 424436K 119510
346
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
346
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
346
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
346
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
346
BRACKET , Replaced By: A3464290940
352
BRACKET DOUBLE BRAKE LINE COUPLING TO REAR CROSS MEMBER,K 119510
354
NUT CHECK VALVE TO AIR RESERVOIR
357
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
357
SEAL RING , Replaced By: N007603012121
365
T-FITTING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
385
GUIDE SIGN SPRING LOAD ACCUMULATOR,5 409255 NO LONGER AVAILABLE
385
GUIDE SIGN SPRING LOAD ACCUMULATOR,5 409255 NO LONGER AVAILABLE
385
GUIDE SIGN SPRING LOAD ACCUMULATOR,5 409255 NO LONGER AVAILABLE
385
GUIDE SIGN SPRING LOAD ACCUMULATOR, NO LONGER AVAILABLE5 409254
385
GUIDE SIGN SPRING LOAD ACCUMULATOR, NO LONGER AVAILABLE5 409254
999
REPAIR KIT RELAY VALVE "GRAU"
999
REPAIR KIT RELAY VALVE BOSCH
999
COVERING
999
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
999
BRAKE LINE COUPLING BRAKE,YELLOW "BOSCH"
999
REPAIR KITTO 002 429 79 44
999
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
999
CONNECTOR HOSE WIDTH, / I.D., 6 MM
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SCREW. UNION SCREW LINE CONNECTION
999
ELBOW FITTING , Replaced By: A0049905371
999
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
999
SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
ELBOW FITTING
999
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
999
FITTING SHUTTLE VALVE
999
VALVE FRONT AXLE II RELAY VALVE "BOSCH"
999
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
999
VALVE FRONT AXLE II RELAY VALVE "WABCO"
999
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
SCREW REDUCTION VALVE TO BRACKET
999
LEVER RELAY VALVE,CONNECTION: "40"
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
BRACKET AT BRACKET
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
BRACKET PRESSURE RATIO VALVE
999
BRACKET REDUCTION VALVE
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW , Replaced By: N000933008337
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: A0079900801
999
SCREW , Replaced By: A0099900101
999
SCREW SHACKLE TO CONSOLE
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
HOSE LEAK LINE, ORDER BY THE METER
999
NUT BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: A0009906350
999
NUT , Replaced By: N913004008001
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
