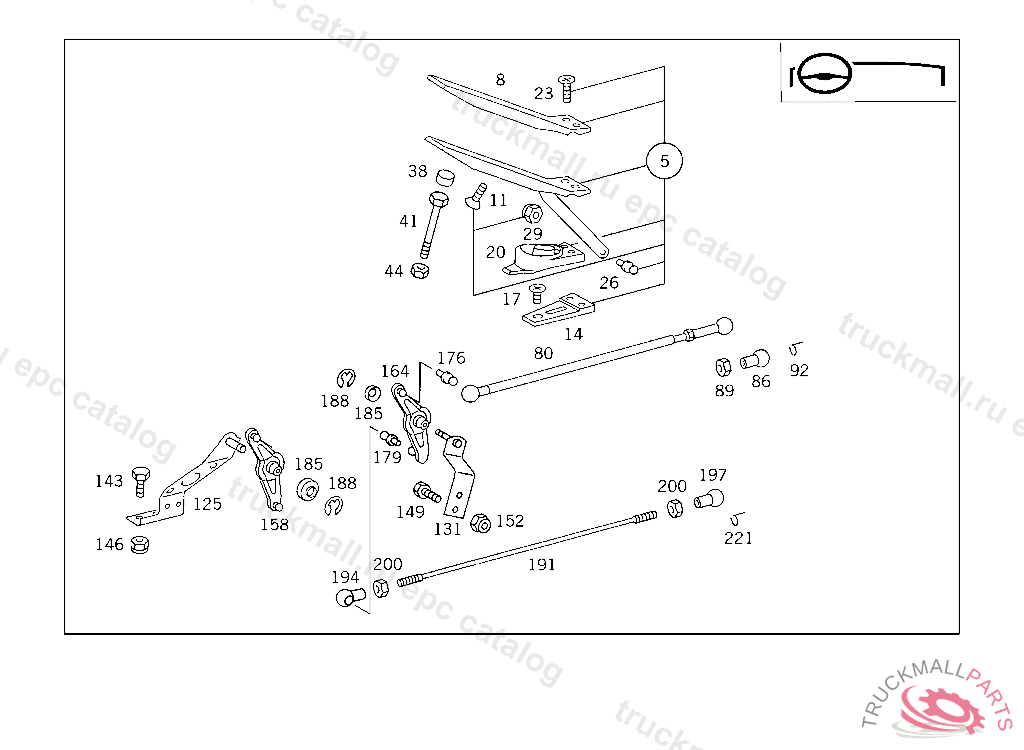

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
BALL PIVOT LOAD SENSOR
29
NUT PUMP TO BRACKET
29
NUT , Replaced By: N913004006001
38
STOP ACCELERATOR PEDAL
41
SCREW VALVE TO BRACKET
41
SCREW VALVE TO BRACKET, Replaced By: N304014008002
44
NUT
80
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
80
ROD LOAD SENSOR CONTROL
86
BALL SOCKET PULL ROD TO LEVER
86
BALL SOCKET PULL ROD TO LEVER
89
NUT BALL PIVOT TO LEVER
92
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
125
BEARING BRACKET INTERMEDIATE BEARING
143
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
143
SCREW END PIECE TO EXHAUST PIPE M 10X25
146
NUT STRAP TO BRACKET
146
NUT , Replaced By: N910113010000
158
LEVER INTERMEDIATE BEARING
158
LEVER , Replaced By: A6153000628
176
BALL STUD. BALL PIVOT TOP B10X4,5 MM
179
BALL PIVOT BOTTOM B13X5 MM
185
COVERING INTERMEDIATE BEARING
188
LOCK PLATE INTERMEDIATE BEARING
191
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
191
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
194
BALL SOCKET ROD TO BALL PIVOT
197
BALL SOCKET ROD TO BALL PIVOT
200
NUT
200
NUT
221
SECURING CLIP. CIRCLIP
