Поз.
Артикул
Описание

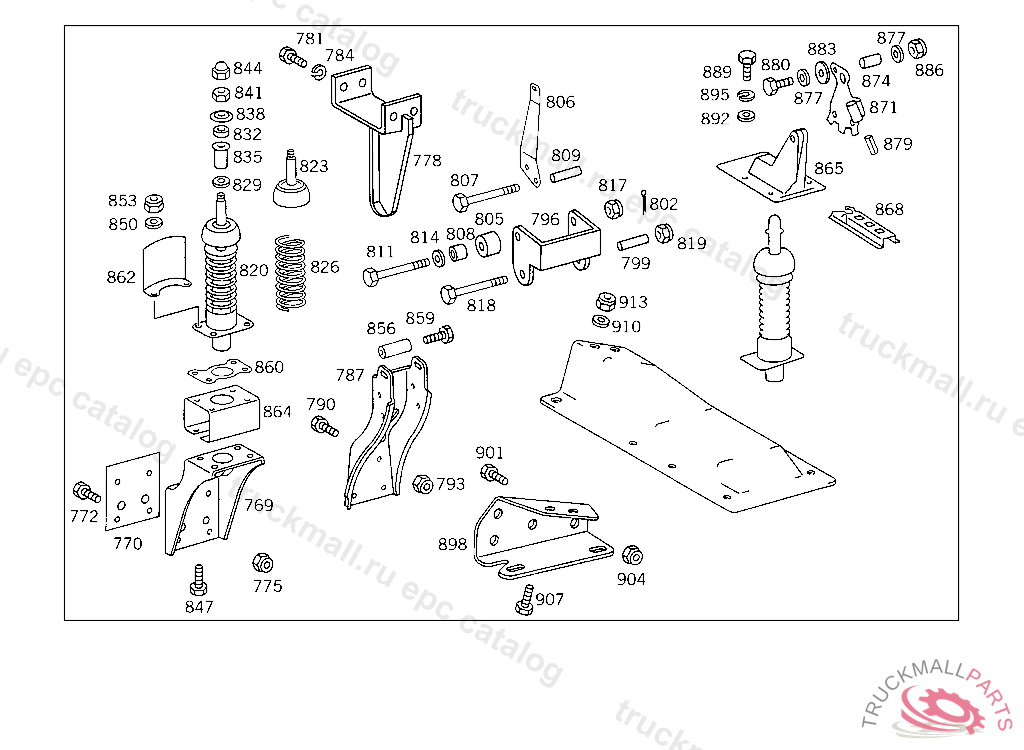

769
CONSOLE CAB SUSPENSION
769
CONSOLE , Replaced By: A3873170001
770
BASE CONSOLE TO SIDE MEMBER, NOT USED
772
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
772
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
772
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
772
SCREW , Replaced By: N308676012026
775
NUT SUPPORT TO SIDE MEMBER
775
NUT STRAP TO SUPPORT
778
GUIDE CAB
778
GUIDE , Replaced By: A6253100076
778
GUIDE LATERAL GUIDE OF CAB
781
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
781
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
781
SCREW , Replaced By: N308676012012
784
LOCK WASHER FITTING TO BRACKET
787
CONSOLE CAB
790
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
793
NUT BRACKET TO SIDE MEMBER
793
NUT , Replaced By: N910113014001
796
BRACKET CONSOLE
799
PIN BRACKET TO CONSOLE
802
COTTER PIN VIBRATION ABSORBER TO BRACKET,5 117575
805
STOP LATERAL GUIDE OF CAB
806
BRACKET LATERAL GUIDE OF CAB
806
BRACKET LATERAL GUIDE OF CAB
806
BRACKET LATERAL GUIDE OF CAB
806
BRACKET LATERAL GUIDE OF CAB
806
BRACKET LATERAL GUIDE OF CAB
807
SCREW BRACKET TO CONSOLE
808
SPACER TUBE STOP, TO BE ADAPTED DURING ASSEMBLY
808
SPACER TUBE BRACKET TO CONSOLE
808
SPACER TUBE SENSOR CABLE TO REAR AXLE,LEFT AND RIGHT
809
SPACER TUBE STRUT TO FRAME
811
SCREW LEFT AND RIGHT CONSOLES TO CAB
811
HEXAGON HEAD BOLT , Replaced By: A0029902704
811
SCREW , Replaced By: N308676012013
811
SCREW , Replaced By: N308676012015
814
WASHER , Replaced By: N007349013005
814
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
814
WASHER
817
NUT SUPPORT TO SIDE MEMBER
817
NUT STRAP TO SUPPORT
818
SCREW BRACKET TO TORSION BAR,4 9511495 554754
819
NUT , Replaced By: N910113010002
819
HEXAGON NUT
820
SHOCK ABSORBER , Replaced By: A3878904019
820
SHOCK ABSORBER , Replaced By: A3878903619
820
SHOCK ABSORBER CAB SUSPENSION
820
SHOCK ABSORBER CAB SUSPENSION
823
RUBBER MOUNTINGTO 387 890 36 19
826
SPRINGTO 387 890 36 19
826
SPRINGTO 387 890 39 19, 40 19
829
WASHER SHOCK ABSORBER MOUNTING
832
RUBBER RING SHOCK ABSORBER MOUNTING
835
SPACER TUBE SHOCK ABSORBER MOUNTING
838
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
838
WASHER , Replaced By: N000433015005
841
NUT SHOCK ABSORBER MOUNTING
841
NUT STRAP TO SUPPORT
844
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
847
SCREW BRACKET TO CROSS CONNECTION STRUT
847
SCREW SHOCK ABSORBER TO CONSOLE
847
SCREW , Replaced By: N304017008034
847
SCREW , Replaced By: N304017008042
850
WASHER , Replaced By: N009021008213
850
WASHER , Replaced By: N000125008443
850
WASHER BRACKET TO LEFT SIDE MEMBER
850
WASHER EXHAUST MUFFLER TO STRAP
853
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
853
NUT , Replaced By: N913004008001
856
SPACER TUBE SHOCK ABSORBER TO BRACKET
859
SCREW SHOCK ABSORBER TO CONSOLE,TOP
860
COVER SHOCK ABSORBER TO CONSOLE
862
COVER PLATE SHOCK ABSORBER
864
BRACKET
865
GUIDE CAB,REAR LEFT AND RIGHT
868
LATCH CAB LOCKING MECHANISM
871
TOOTHED SEGMENT CAB LOCKING MECHANISM,LEFT
871
TOOTHED SEGMENT CAB LOCKING MECHANISM,RIGHT
874
PIPE BRACKET TO TRANSMISSION
874
SPACER TUBE , Replaced By: A6017910036
877
DISC SPRING CAB LOCKING MECHANISM
879
CLAMPING SLEEVE CAB LOCKING MECHANISM
880
SCREW STRUT TO FRAME, LEFT
880
SCREW EXHAUST PIPE TO BRACKET
883
WASHER , Replaced By: N009021010209
883
WASHER BRACKET TO COVERING
886
NUT , Replaced By: N910113010000
886
NUT , Replaced By: N913023010002
886
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
886
NUT STRAP TO BRACKET
889
SCREW END PIECE TO EXHAUST PIPE M 10X25
889
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
892
WASHER , Replaced By: N000125010532
892
WASHER RADIATOR TO RUBBER MOUNTING
895
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
898
BRACKET RIGHT
898
BRACKET LEFT
901
SCREW , Replaced By: N910105014010
901
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
901
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
904
NUT BRACKET TO SIDE MEMBER
904
NUT BRACKET TO SIDE MEMBER
904
NUT , Replaced By: N910113014001
907
SCREW , Replaced By: N308676012012
907
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
907
SCREW CONSOLE TO SIDE MEMBER
910
WASHER
913
NUT SUPPORT TO SIDE MEMBER
999
NUT , Replaced By: N913004008001
999
HEXAGON HEAD BOLT. SCREW BRACKET TO FRAME M 10X30
999
RIVET FRAME TRUSS TO SIDE MEMBER
999
SCREW RETARDER HOUSING TO TRANSMISSION CASE M 18X1.5X120
999
SCREW , Replaced By: N304017008034
999
WASHER , Replaced By: N000125008443
999
MOUNTING CAB, RIGHT
999
MOUNTING LEFT VIBRATION ABSORBER
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
WASHER CONSOLE TO FRAME
999
HEXAGON HEAD BOLT. SCREW BEARING MOUNTING M 12 X 1,5 X 80
999
SCREW CLAMP TO CONSOLE
999
SCREW STRUT TO CONSOLE
999
SCREW , Replaced By: N910105010023
999
NUT BRACKET TO CROSS MEMBER
