Поз.
Артикул
Описание

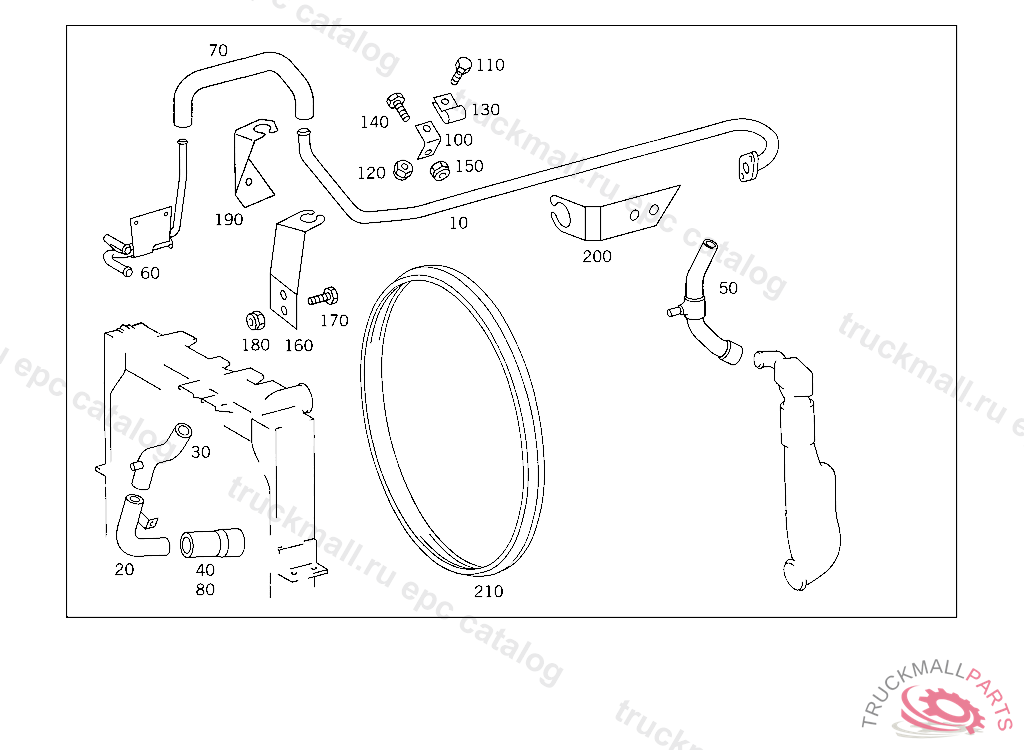

10
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
10
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
20
INTERMEDIATE PIECE FROM EXPANSION TANK TO WATER PUMP,K 096750
20
INTERMEDIATE PIECE FROM EXPANSION TANK TO WATER PUMP,K 103232
30
HOSE FROM EXPANSION TANK TO WATER PUMP
40
HOSE FROM EXPANSION TANK TO WATER PUMP,K 103232
50
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
50
HOSE FROM RADIATOR TO THERMOSTAT
50
HOSE
50
HOSE FROM EXPANSION TANK TO WATER PUMP
50
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
50
HOSE FROM EXPANSION TANK TO WATER PUMP,K 103232
60
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
60
LINE
70
HOSE HEATING PIPE TO RADIATOR
80
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
100
BRACKET HEATING PIPE
110
SCREW PUMP TO BRACKET
110
SCREW , Replaced By: N304017006016
120
NUT PUMP TO BRACKET
120
NUT , Replaced By: N913004006001
130
CLAMP FEED LINE TO THERMOSTAT
140
SCREW END PIECE TO EXHAUST PIPE M 10X25
150
NUT , Replaced By: N910113010000
150
NUT STRAP TO BRACKET
160
BRACKET BRACKET TO BRACKET
170
SCREW CAB FLOOR COVERING M 6X25
180
NUT PUMP TO BRACKET
180
NUT , Replaced By: N913004006001
190
BRACKET OI DIPSTICK GUIDE TUBE
200
BRACKET OIL DIPSTICK GUIDE TUBE TO BRACKET
200
BRACKET OIL DIPSTICK GUIDE TUBE TO BRACKET
200
BRACKET OIL DIPSTICK GUIDE TUBE
210
BOOT FAN SHROUD TO FAN RING
210
BOOT FAN SHROUD TO FAN RING
999
BRACKET OIL DIPSTICK GUIDE TUBE
999
HOSE , Replaced By: A6205060635
999
LINE HEATING AND BREATHING
999
LINE FROM EXPANSION TANK TO WATER PUMP
999
LINE , Replaced By: A0005516456
999
HOSE , Replaced By: A4355060535
999
BRACKET HEATING PIPE
