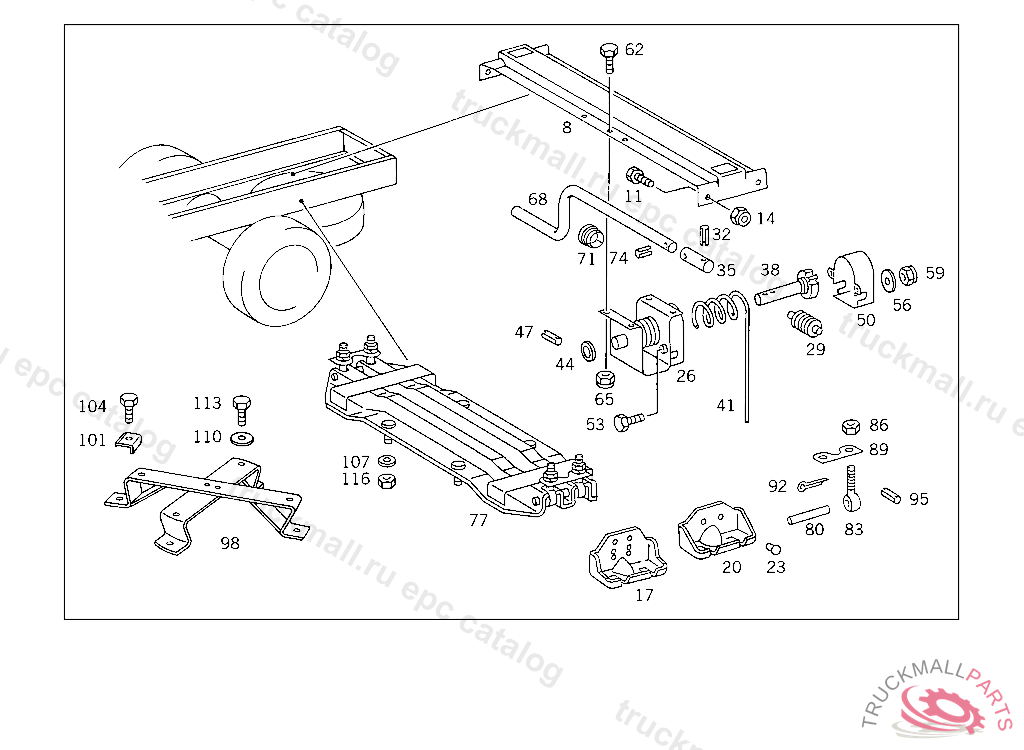

Поз.
Артикул
Описание
8
SUPPORT SPARE WHEEL HOIST,4 179002
8
SUPPORT SPARE WHEEL HOIST,4 179002
11
SCREW , Replaced By: N304017010002
11
SCREW BRACKET TO SIDE MEMBER
11
SCREW END PIECE TO EXHAUST PIPE M 10X25
14
NUT STRAP TO BRACKET
14
NUT , Replaced By: N910113010000
17
SUPPORT SPARE WHEEL MOUNTING, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
20
SUPPORT SPARE WHEEL HOIST
23
RIVET REAR CROSS MEMBER 12X42 MM
23
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
26
SPARE WHEEL HOIST
29
WORM
32
CLAMPING SLEEVE CRANK TO BUSHING
35
BUSHING
38
STOP GEAR ,5 127460
41
WIRE CABLE
44
WASHER WORM AND SHAFT TO BRACKET
47
CLAMPING SLEEVE , Replaced By: N308752008000
47
CLAMPING PIN BRACKET TO SUPPORT
50
COVERING PROTECTION PLATE TO BRACKET
53
SCREW COVER PLATE TO BRACKET
56
WASHER , Replaced By: N009021006208
56
WASHER COMPRESSED AIR LINE TO BRACKET
59
NUT , Replaced By: N913004006001
59
NUT PUMP TO BRACKET
62
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
65
NUT STRAP TO BRACKET
65
NUT , Replaced By: N910113010000
68
CRANK SPARE WHEEL HOIST
71
BUSHING SPARE WHEEL HOIST,4 179002
71
BUSHING CRANK
74
CLAMPING SLEEVE CRANK TO BUSHING
77
BRACKET SPARE WHEEL CARRIER
77
BRACKET SPARE WHEEL CARRIER,4 613857
77
BRACKET SPARE WHEEL CARRIER,4 613857
80
PIN AT BRACKET
83
SCREW , Replaced By: A6519900023
83
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
86
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
86
NUT , Replaced By: N308673016001
89
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
92
COTTER PIN STRAP TO SUPPORT
95
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
98
BRACKET TRILEX WHEEL
101
CLAMPING PIECE SPARE WHEEL CARRIER
104
SCREW BRACKET TO CAB CONSOLE,K 035197
107
WASHER SPARE WHEEL TO BRACKET
110
WASHER SPARE WHEEL CARRIER
113
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
113
SCREW , Replaced By: N308676014020
116
NUT , Replaced By: N308673020002
116
NUT , Replaced By: N308674020000
116
NUT REAR SPRING TO REAR AXLE
999
BRACKET SPARE WHEEL CARRIER,4 179002-4 369654
999
SHIM COMPRESSED AIR LINE TO ENGINE
