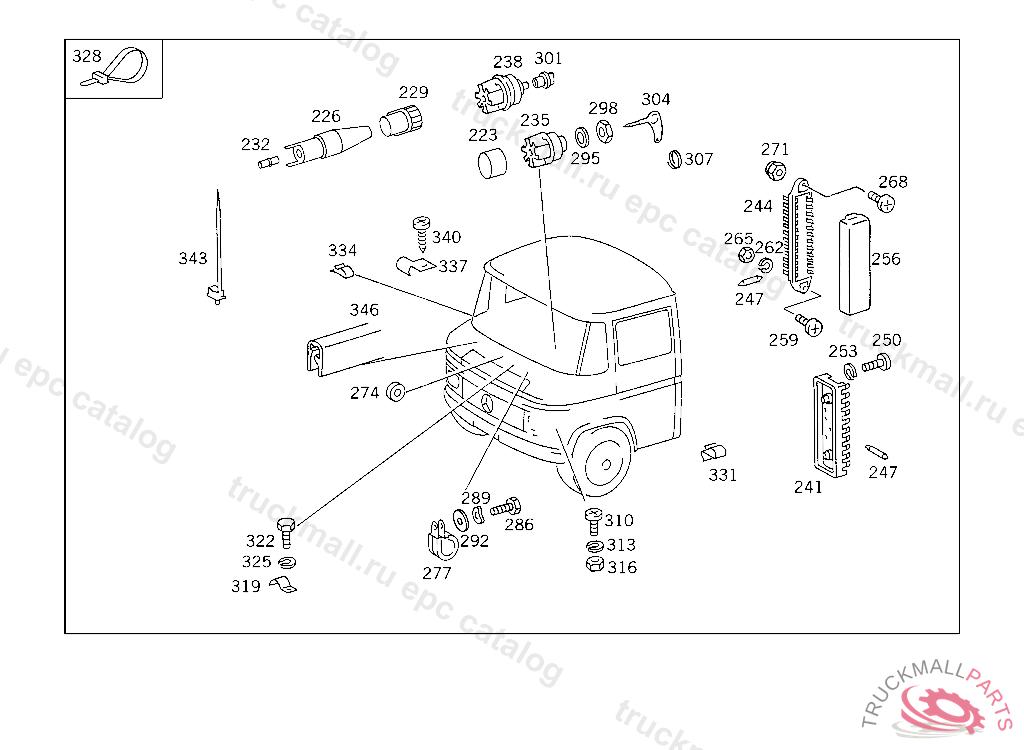

Поз.
Артикул
Описание
223
GROMMET SWITCH BOX
235
SWITCH (IGNITION AND LIGHT SWITH)
241
FUSE BOX TERMINALS 1-2-3,5-6,7-8,9-10 BRIDGED OVER, UP TO IDENT NO. 655197 EXCEPT FOR 500001-599999
244
FUSE BOXNO.1
244
FUSE BOXNO.2
247
FUSEA8
247
FUSE , Replaced By: N072581008101
250
SCREW ELECTRIC CABLE TO FUSE BOX
253
LOCK WASHER T-FITTING TO BRACKET
256
CAP FUSE BOX,303365
259
SCREW MOUNTING OF INSTRUMENT PANEL
259
SCREW HOOK TO BRACKET
262
LOCK WASHER BRACKET TO STEERING COLUMN END
265
NUT TACHOGRAPH TO BRACKET
268
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
268
SCREW , Replaced By: N000000001149
268
SCREW , Replaced By: A0029903712
271
NUT , Replaced By: N913004006001
271
NUT PUMP TO BRACKET
274
GROMMET REGULATOR FEED CABLE TO VENTILATION DUCT, 017121521009
277
CLAMP LINE MOUNTING
277
CLAMP , Replaced By: N916016015202
286
SCREW BRACKET TO TAIL LAMP BRACKET
289
SPRING WASHER ALTERNATOR CONNECTION D+
292
WASHER , Replaced By: N009021005205
292
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
295
WASHER LIGHT SWITCH TO INSTRUMENT PANEL
295
WASHER , Replaced By: A0005450376
298
NUT , Replaced By: A0005451072
298
NUT LIGHT SWITCH TO INSTRUMENT PANEL
301
KNOB LIGHT ROTARY SWITCH
301
HANDLE , Replaced By: A2025450081
301
BUTTON LIGHT ROTARY SWITCH
304
KEY IGNITION AND LIGHT SWITCH
307
RING DRAIN VALVE TO 000 432 08 07, NOT USED
310
SCREW BRACKET TO COVERING
310
SCREW , Replaced By: N000000001145
313
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
316
NUT BALL PIVOT TO LEVER
319
FIXING CLAMP. CLAMP ,845437
319
CLAMP , Replaced By: A1989950020
322
SCREW , Replaced By: N304017006018
322
SCREW COVER PLATE TO COVER PLATE M 6 X 12
325
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
328
LOOM TIE LINE MOUNTING 280 MM
328
LOOM TIE , Replaced By: A0019978390
331
CLIP
331
CLIP FUEL LINE TO CAB CONSOLE
331
CLIP13 MM, Replaced By: A0129884678
334
CLIP STARTING MOTOR BRANCH-OFF
337
MOUNTING CLAMP. CLAMP DE-AERATION LINE TO BRACKET,4 465189
337
CLAMP
337
CLAMP , Replaced By: A3049951620
340
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
340
SHEET METAL SCREW BRACKET TO FLOOR PLATE
343
BRACKET MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER,368972
346
EDGE GUARD SECTION , Replaced By: A0009876870
346
RUBBER SECTION AT LEFT SIDE MEMBER 85 MM
999
SWITCH,AUTOMATIC , Replaced By: A0025457724
999
BRACKET SPEEDOMETER ADAPTER,182065
999
CLAMP LINE TO CAB
999
ELECTRIC CABLE FROM SWITCH BOX TO HEATER PLUG STARTING SWITCH
