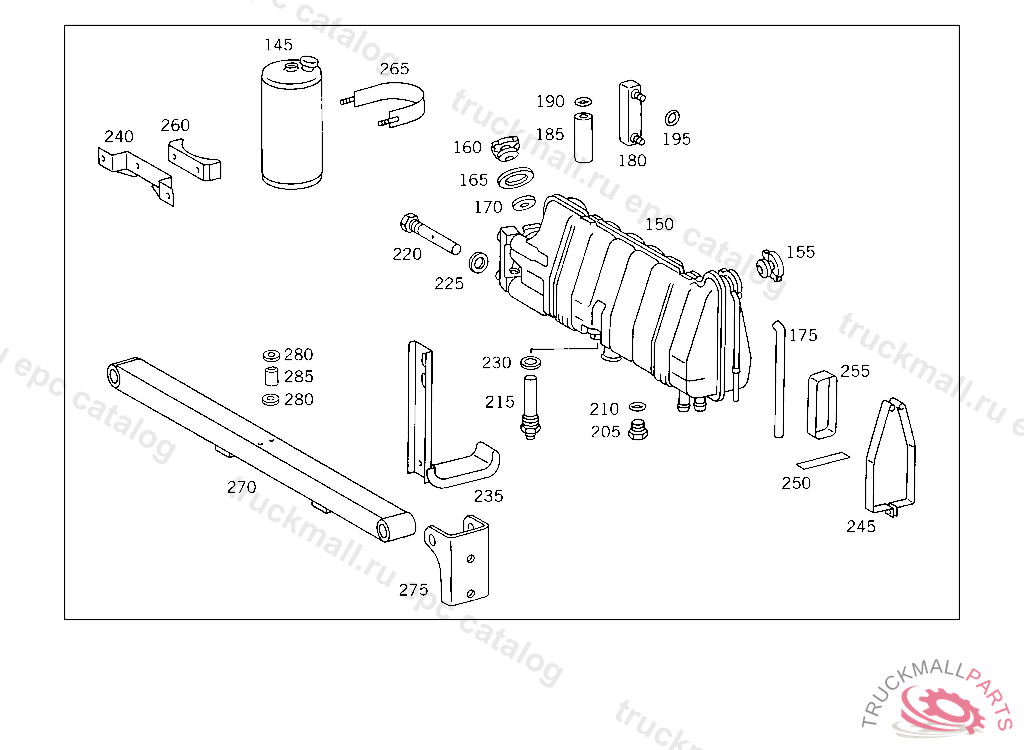

Поз.
Артикул
Описание
145
TANK COOLING WATER EXPANSION
150
TANK COOLING WATER EXPANSION
155
RADIATOR CAP FILLER NECK
160
RADIATOR CAP FILLER NECK
160
RADIATOR CAP FILLER NECK
165
GASKET O.D., 52 MM
170
GASKET O.D., 37 MM
175
HOSE OVERFLOW TO 357 500 10 49
180
SIGHT GLASSTO 357 500 10 49
185
SIGHT GLASSTO 357 500 10 49
190
SEAL RINGTO 357 500 10 49
195
SEAL RINGTO 357 500 10 49
205
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
210
SEAL RING WATER LEVEL SENSOR
215
SENDER UNIT WATER LEVEL SENSOR
220
PIPE ADAPTER WATER LEVEL SENSOR
220
PIPE ADAPTER , Replaced By: A0005010155
225
SEAL RING AT TANK
230
SEAL RING WATER LEVEL SENSOR
235
BRACKET EXPANSION TANK TO SUPPORT
240
BRACKET EXPANSION TANK
245
BRACKET STRAP TO EXPANSION TANK
245
BRACKET STRAP TO EXPANSION TANK
250
SHIM EXPANSION TANK TO BRACKET
255
SHIM EXPANSION TANK,LEFT
260
SHIM EXPANSION TANK TO BRACKET
265
CLAMP EXPANSION TANK TO BRACKET
270
SUPPORT TOP,TRANSVERSE
275
BRACKET BRACKET TO SUPPORT
280
WASHER PARTICLE FILTER
285
RUBBER MOUNTING PARTICLE FILTER SUSPENSION
999
SPACER RING PIPE ELBOW TO BRACKET,K 023462
999
WASHER , Replaced By: A1894660751
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE, TO BE ADAPTED DURING ASSEMBLY
999
PIN PIPE ELBOW TO BRACKET,K 023462
999
PIPE ELBOW FROM RADIATOR TO WATER PUMP
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
PIPE ELBOW FROM RADIATOR OUTLET TO WATER PUMP
999
PIPE ELBOW FROM RADIATOR OUTLET TO WATER PUMP
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
BRACKET HEATING PIPE
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
SCREW DE-AERATION LINE TO RADIATOR
999
LINE HOSE TO ENGINE
999
HOSE , Replaced By: A6205013082
