Поз.
Артикул
Описание
5

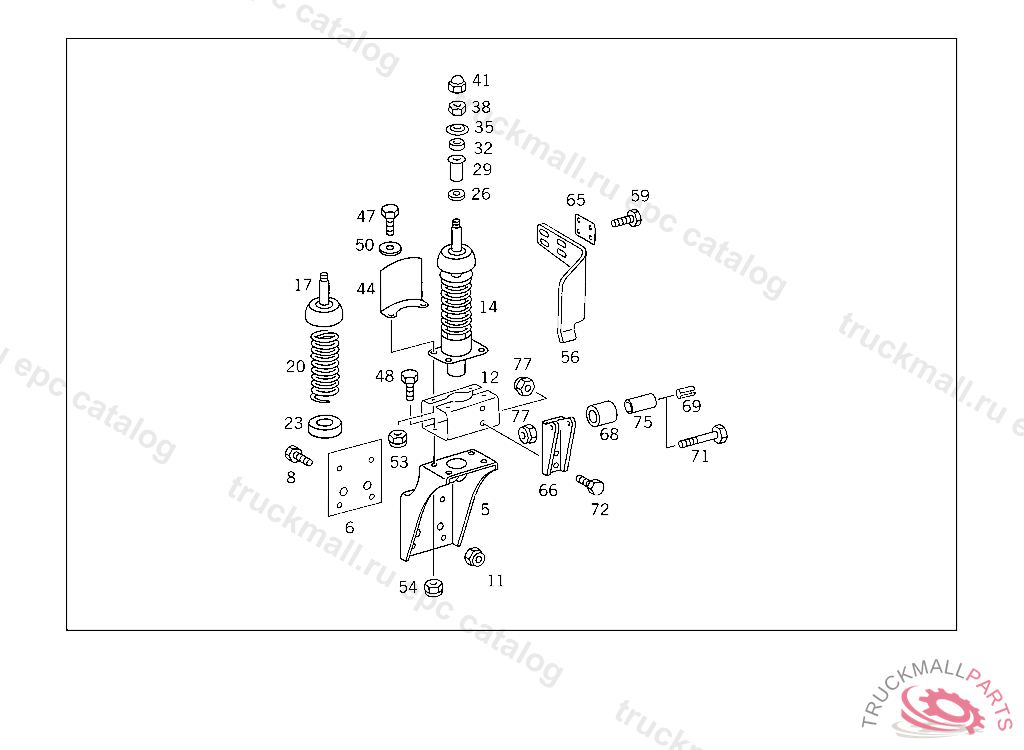

CONSOLE CAB SUSPENSION
5
CONSOLE , Replaced By: A3873170001
6
BASE CONSOLE TO SIDE MEMBER, NOT USED
8
SCREW , Replaced By: N308676012026
8
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
11
NUT SUPPORT TO SIDE MEMBER
12
CLAMP VIBRATION ABSORBER
14
SHOCK ABSORBER
14
SHOCK ABSORBER , Replaced By: A6208900319
17
RUBBER MOUNTINGTO 620 890 02 19
20
SPRINGTO 620 890 03 19
23
BUFFERTO 620 890 02 19
26
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
26
WASHER , Replaced By: N000433015005
29
SPACER TUBE SHOCK ABSORBER MOUNTING
32
RUBBER RING SHOCK ABSORBER MOUNTING
35
WASHER SHOCK ABSORBER MOUNTING
38
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
41
CAP NUT VIBRATION ABSORBER
44
COVER PLATE SHOCK ABSORBER
47
SCREW BRACKET TO CROSS CONNECTION STRUT
47
SCREW , Replaced By: N304017008034
48
SCREW BRACKET TO BRACKET
48
SCREW , Replaced By: N910142008001
50
WASHER BRACKET TO LEFT SIDE MEMBER
50
WASHER , Replaced By: N009021008213
53
NUT STRAP TO BRACKET
54
NUT STRAP TO BRACKET
56
GUIDE RIGHT
56
GUIDE LEFT
59
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
65
SHIM GUIDE TO CAB
66
BRACKET LATERAL GUIDE OF CAB, NOT USED
68
BUSHING LATERAL GUIDE OF CAB
69
CLAMPING SLEEVE LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
71
SCREW LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
72
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
75
SPACER TUBE BRACKET TO CONSOLE
77
NUT STRAP TO SUPPORT
77
NUT STRAP TO SUPPORT
77
NUT STRAP TO SUPPORT
