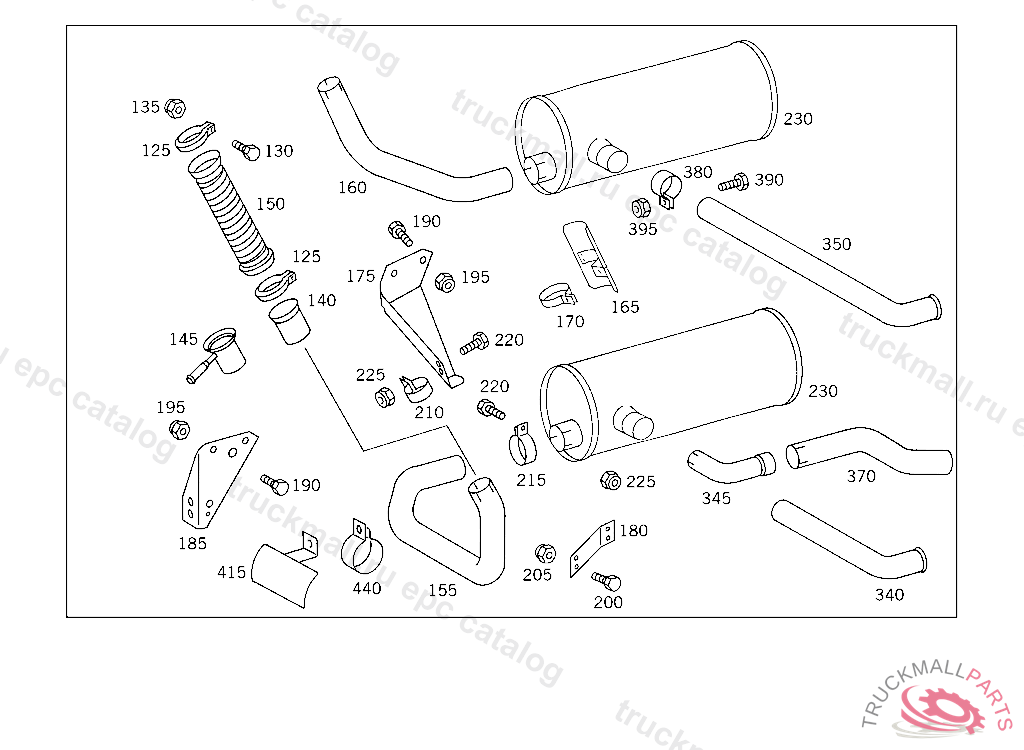

Поз.
Артикул
Описание
125
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
130
SCREW SUPPORT TO FENDER
130
SCREW , Replaced By: N304017008018
135
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
135
NUT , Replaced By: N913004008001
140
COLLAR (SLIDING COLLAR)
145
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
150
FLEXIBLE METAL TUBE FRONT
150
FLEXIBLE METAL TUBE FRONT LEFT
155
EXHAUST PIPE FRONT LEFT
155
EXHAUST PIPE FRONT LEFT
155
EXHAUST PIPE FRONT,REAR LEFT PART
155
EXHAUST PIPE FRONT LEFT
155
EXHAUST PIPE FRONT LEFT
155
EXHAUST PIPE FRONT LEFT
155
EXHAUST PIPE FRONT LEFT
155
EXHAUST PIPE FRONT LEFT
155
EXHAUST PIPE FRONT LEFT
155
EXHAUST PIPE FRONT LEFT
155
EXHAUST PIPE FRONT LEFT
160
EXHAUST PIPE FRONT RIGHT
160
EXHAUST PIPE FRONT,REAR RIGHT PART
160
EXHAUST PIPE FRONT RIGHT
160
EXHAUST PIPE FRONT RIGHT
160
EXHAUST PIPE FRONT RIGHT
160
EXHAUST PIPE FRONT RIGHT
160
EXHAUST PIPE FRONT RIGHT
160
EXHAUST PIPE FRONT RIGHT
160
EXHAUST PIPE FRONT LEFT
160
EXHAUST PIPE FRONT RIGHT
160
EXHAUST PIPE FRONT RIGHT
160
EXHAUST PIPE FRONT RIGHT
160
EXHAUST PIPE FRONT RIGHT
165
PROTECTIVE PLATE FUEL TANK
170
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
170
CLAMP , Replaced By: N071555100501
175
BRACKET FRONT EXHAUST PIPE
175
BRACKET FRONT EXHAUST PIPE
175
BRACKET LEFT EXHAUST PIPE
180
BRACKET EXHAUST PIPE TO LEFT FRONT SPRING REAR BRACKET
185
BRACKET RIGHT EXHAUST PIPE
190
SCREW BRACKET TO SIDE MEMBER
190
SCREW , Replaced By: N304017010002
195
NUT STRAP TO BRACKET
195
NUT , Replaced By: N910113010000
200
SCREW BRACKET TO TORSION BAR,4 9511495 554754
205
HEXAGON NUT
205
NUT , Replaced By: N910113010002
210
CLAMP EXHAUST PIPE TO BRACKET
215
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
220
SCREW BRACKET TO SIDE MEMBER
220
SCREW BRACKET TO SIDE MEMBER
220
SCREW , Replaced By: N304017010002
225
NUT STRAP TO BRACKET
225
NUT STRAP TO BRACKET
225
NUT , Replaced By: N910113010000
230
EXHAUST MUFFLER
340
REAR EXHAUST PIPE AT MUFFLER,LEFT
340
REAR EXHAUST PIPE AT MUFFLER,LEFT
340
REAR EXHAUST PIPE
340
REAR EXHAUST PIPE AT MUFFLER,LEFT
345
EXHAUST PIPE AT MUFFLER,LEFT
350
FRONT EXHAUST PIPE AT MUFFLER,RIGHT
350
REAR EXHAUST PIPE AT MUFFLER,RIGHT
350
REAR EXHAUST PIPE AT MUFFLER,RIGHT
350
REAR EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER
350
REAR EXHAUST PIPE AT MUFFLER,RIGHT
370
REAR EXHAUST PIPE TAIL PIPE ON THE LEFT
380
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
380
CLAMP , Replaced By: N071555090502
390
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
390
SCREW , Replaced By: N304017008027
395
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
395
NUT , Replaced By: N913004008001
415
PROTECTIVE PLATE FUEL TANK
440
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
440
CLAMP , Replaced By: N071555090502
999
BRACKET HEAT SHIELD
