Поз.
Артикул
Описание

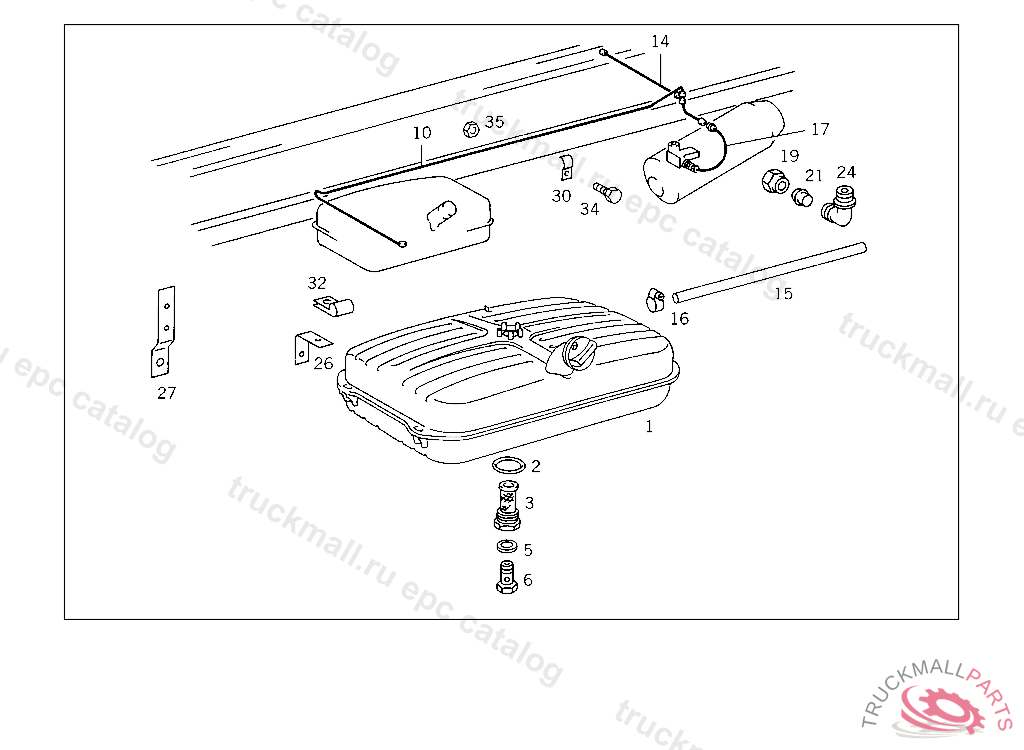

1
FUEL TANK , FOR COMPONENT PARTS,SEE SPARE PARTS LIST, Replaced By: A3094705901
2
SEAL RING FILLER CAP
3
FUEL STRAINER
5
SEAL RING LINE CONNECTION
5
SEAL RING , Replaced By: N007603012111
6
HOLLOW SCREW HEATING CONNECTION
10
LINE FROM CLUTCH TO TRANSMISSION
14
LINE
15
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
16
CLAMP , Replaced By: N916017011001
16
CLAMP , Replaced By: N000000000665
16
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
17
HOSE FUEL LINE LEADING TO HEATER UNIT
19
UNION NUT LINE CONNECTION
21
GLAND LINE CONNECTION
24
FITTING CONNECTION TO HEATER UNIT
26
BRACKET FUEL LINE
27
BRACKET FUEL LINE
30
FIXING CLAMP. CLAMP ,845437
32
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
32
CLAMP , Replaced By: N916016008200
32
CLAMP , Replaced By: A3604300143
32
CLAMP ,K 147121, Replaced By: N000000000319
34
SCREW COVER PLATE TO BRACKET
35
NUT , Replaced By: N913002006009
35
NUT OIL TANK TO BRACKET
999
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
999
CLAMP , Replaced By: N916016008200
999
LOOM TIE , Replaced By: N916017011000
999
LOOM TIE LINE MOUNTING
999
BIEGSAMER SCHLAUCH. HOSE , Replaced By: A3094760126
999
FUEL TANK
999
FUEL TANK
999
LINE
999
LINE
999
LINE , Replaced By: A4064207226
999
FUEL TANK , Replaced By: A3094708801, +001A3094700138, +001A3524710080, +001A0669970640, +001A0199977582, +001N007603014402, +001N915011008101, +001N915052006000, +001N915052006005
999
LINE , Replaced By: A4064207226, +001A0004290801, +001A0004295235, +002A0009971190
999
LINE , Replaced By: A4064207226, +001A0004290801, +001A0004295235, +002A0009971190
999
HOSE FUEL LINE LEADING TO HEATER UNIT,303382
999
HOSE , Replaced By: A3098321323
999
HOSE FROM FUEL LINE TO T-FITTING
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
SCREW BRACKET TO TAIL LAMP BRACKET
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
999
GREASE NIPPLE
999
CLAMP
999
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
999
CLAMP HOSE TO FITTING
999
NUT DIODE TO BRACKET,5 922534
