Поз.
Артикул
Описание

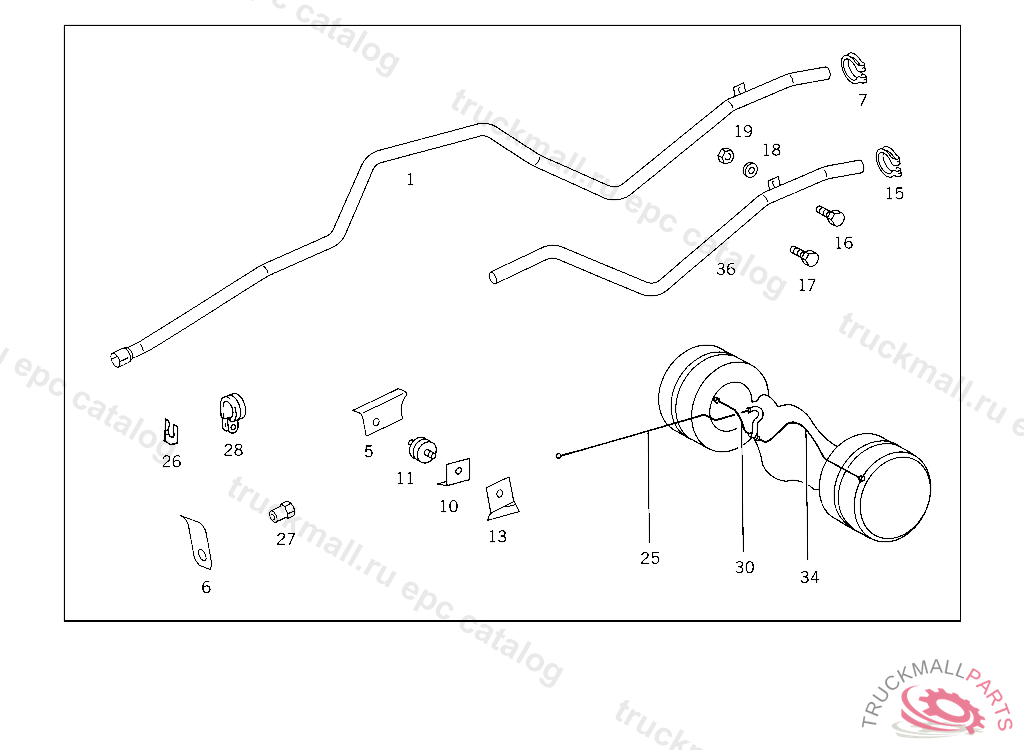

1
EXHAUST PIPE REAR PART
1
EXHAUST PIPE REAR
1
EXHAUST PIPE REAR
1
EXHAUST PIPE REAR PART
1
REAR EXHAUST PIPE FRONT PART
5
BRACKET AT FRAME
5
BRACKET , Replaced By: A3094922319
6
BRACKET AT FRAME
7
CLAMP EXHAUST PIPE TO MUFFLER
10
PROTECTIVE PLATE REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER
11
RUBBER BUFFER BRACKET TO SUPPORT
11
RUBBER BUFFER EXHAUST MUFFLER
13
BRACKET
15
CLAMP , 003 078976 086 003333 EXCEPT FOR 002924,002958,002959,002981,003004,003013,003017,003025,003114,003171,003282-003298,003300-003332.
15
CLAMP , Replaced By: A1074920340
15
CLAMP , Replaced By: A1074900141
15
CLAMP , Replaced By: A1074920340
15
CLAMP , Replaced By: A1074900041
16
SCREW , Replaced By: N304017008034
16
SCREW BRACKET TO CROSS CONNECTION STRUT
17
SCREW VALVE TO BRACKET
17
SCREW VALVE TO BRACKET, Replaced By: N304014008002
18
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
19
HEXAGON NUT SCREENING PLATE,5 163561
19
NUT BRACKET TO FRAME M 10X1
19
NUT BRACKET TO SUPPORT AND TO END PIECE
19
NUT , Replaced By: N910113010004
19
NUT , Replaced By: A1201420072
19
NUT , Replaced By: N913004010000
19
NUT , Replaced By: N913004008007
25
LINE
26
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
26
BRACKET. LOCK , Replaced By: A6525040038
27
CONNECTOR AT SIDE MEMBER, 309.000-026,030-059 FROM IDENT NO. 004056,309.100-126,130-135 FROM IDENT NO. 068059,310.300-326 FROM IDENT NO. 010720
28
CLAMP ,K 147121, Replaced By: N000000000319
28
CLAMP , Replaced By: N916016008200
28
CLAMP , Replaced By: A3604300143
28
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
30
LINE FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE 415 MM,4 478330
30
LINE , Replaced By: A3404200629
30
LINE , USE UP THE OLD PARTS STILLCARRIED IN STOCK UP TO CHASSIS 013361, Replaced By: A3404200729
30
LINE , Replaced By: A3404200729
30
LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
34
LINE FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE
34
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 1200 MM
34
LINE FROM BRAKE POWER REGULATOR,CONNECTION "2",TO BRAKE HOSE 1150 MM
34
LINE , Replaced By: A3404202129
34
LINE , USE UP THE OLD PARTS STILLCARRIED IN STOCK UP TO CHASSIS 013361, Replaced By: A3404202029
34
LINE , Replaced By: A3404201829
36
EXHAUST PIPE REAR,REAR PART
36
EXHAUST PIPE REAR,REAR PART
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT
999
CLAMP , Replaced By: N000000001641
999
SCREW PLUG FUEL TANK
999
SCREW PLUG , Replaced By: N007604014110
999
TAPPING SCREW ,A 069205
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
CLAMP , Replaced By: A9424310043
999
CLAMP LINE MOUNTING
999
SUPPORT EXHAUST PIPE TO SIDE MEMBER, 10/50 310.400-403,411 UP TO IDENT NO.245341, 20/60 310.400-403,411-426 UP TO IDENT NO. 246155, 310.404,405,417 UP TO IDENT NO. 246272
999
EXHAUST PIPE REAR,REAR PART
999
EXHAUST PIPE , Replaced By: A3094905021
999
EXHAUST PIPE
999
EXHAUST PIPE
