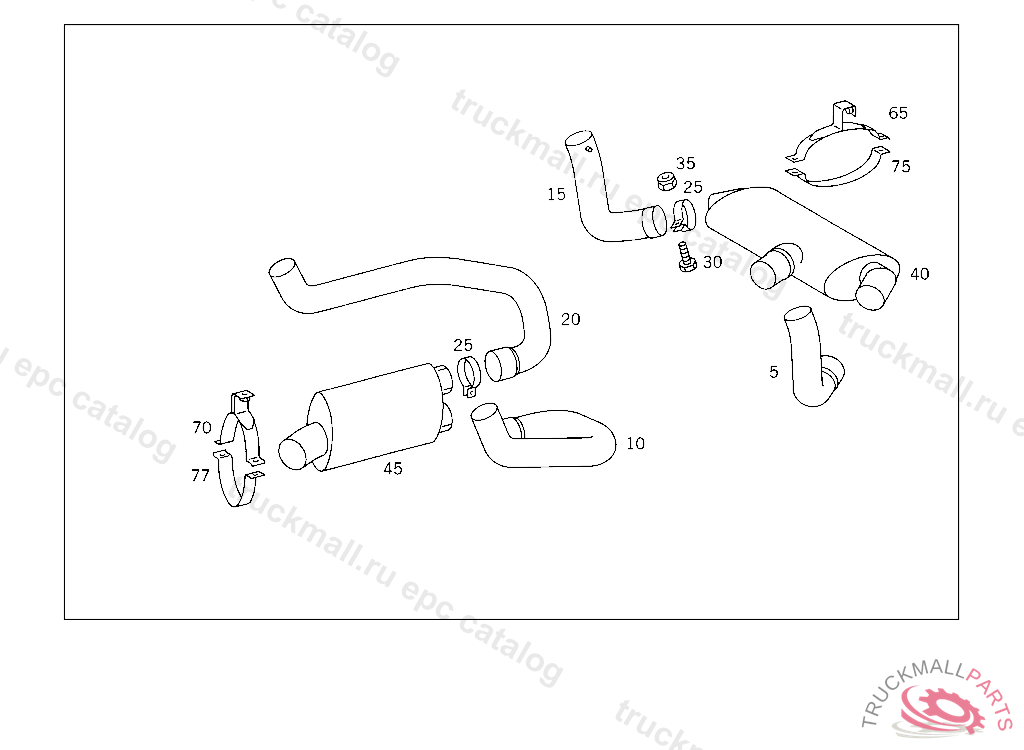

Поз.
Артикул
Описание
5
EXHAUST PIPE , Replaced By: A6554908719
5
EXHAUST PIPE FRONT,REAR LEFT PART
5
EXHAUST PIPE FRONT,REAR LEFT PART
5
EXHAUST PIPE FRONT,REAR LEFT PART
5
EXHAUST PIPE , Replaced By: A6554908919
5
EXHAUST PIPE FRONT,REAR LEFT PART
10
EXHAUST PIPE FRONT,REAR LEFT PART
10
EXHAUST PIPE , Replaced By: A6554908719
10
EXHAUST PIPE FRONT,REAR LEFT PART
10
EXHAUST PIPE FRONT,REAR LEFT PART
15
EXHAUST PIPE FRONT,REAR RIGHT PART
15
EXHAUST PIPE , Replaced By: A6554909019
15
EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 564360, Replaced By: A6554908819
15
EXHAUST PIPE FRONT,REAR RIGHT PART
15
EXHAUST PIPE FRONT,REAR RIGHT PART
15
EXHAUST PIPE FRONT,REAR RIGHT PART
20
EXHAUST PIPE FRONT,REAR RIGHT PART
20
EXHAUST PIPE FRONT,REAR RIGHT PART
25
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
30
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
30
SCREW , Replaced By: N910105010011
30
SCREW REAR EXHAUST PIPE TO MUFFLER
35
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
35
NUT , Replaced By: N913023010002
35
NUT STRAP TO BRACKET
35
NUT , Replaced By: N910113010000
40
EXHAUST MUFFLER PRE-MUFFLER
40
EXHAUST MUFFLER PRE-MUFFLER
45
EXHAUST MUFFLER PRE-MUFFLER
45
EXHAUST MUFFLER PRE-MUFFLER
65
STRAP PRE-MUFFLER
65
STRAP MAIN MUFFLER
65
STRAP EXHAUST MUFFLER
65
STRAP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6524901642
65
STRAP PRE-MUFFLER
70
STRAP PRE-MUFFLER
75
STRAP STRAP TO SUPPORT
77
STRAP PRE-MUFFLER
77
STRAP , Replaced By: A6554900442
999
SCREW BRACKET MOUNTING M 8X110
999
SCREW EXHAUST PIPE TO SIDE MEMBER
999
PIPE ELBOW EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET EXHAUST PIPE,5 564360
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
