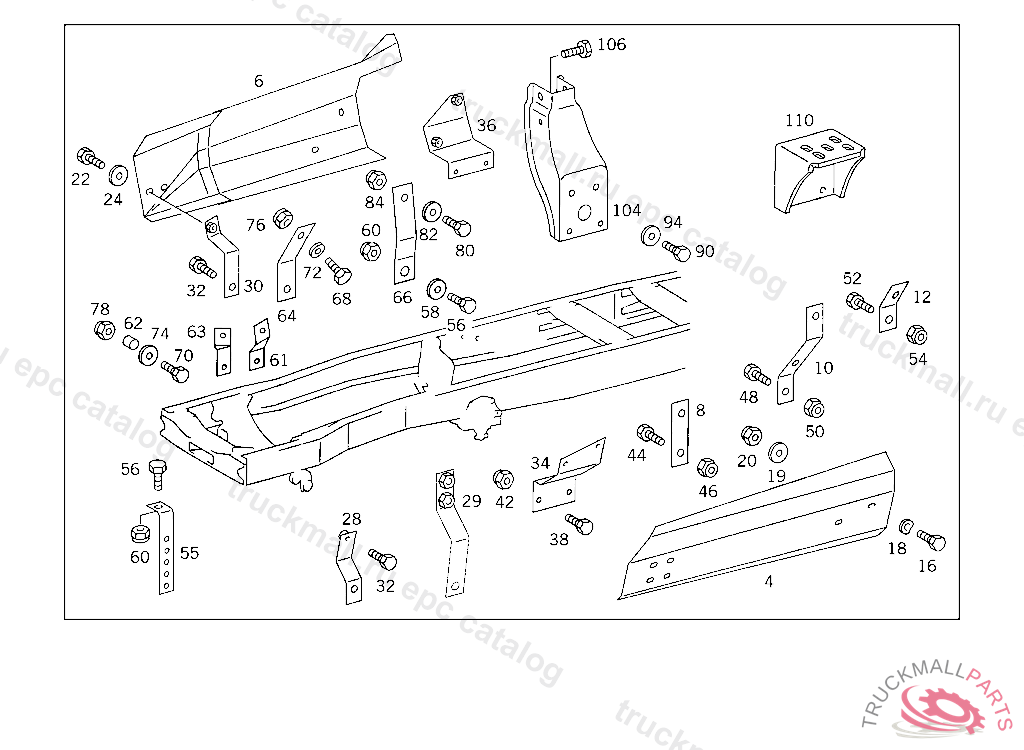

Поз.
Артикул
Описание
4
COVERING LEFT
4
COVERING LEFT
4
COVERING LEFT
4
COVERING , THE OLD PART MUST NO LONGER BE INSTALLED5 349378, Replaced By: A6455202422, +001A6455205241, +001A6455205441, +003N000933008212, +002N000961012164, +001N000961016100, +003N009021008205, +002N913004012008
4
COVERING LEFT
4
COVERING ,5 349379
4
COVERING ,5 349379
4
COVERING , THE OLD PART MUST NO LONGER BE INSTALLED5 349378, Replaced By: A6455242633, +001A6455205241, +001A6455205441, +003N000933008212, +002N000961012164, +001N000961016100, +003N009021008205, +002N913004012008
4
COVERING RIGHT
4
COVERING LEFT
4
COVERING RIGHT
4
COVERING LEFT
4
COVERING RIGHT,4 921200
4
COVERING RIGHT,4 921200
4
ANTINOISE CAPSULE RIGHT,4 921199
4
COVERING LEFT,4 921200
4
COVERING LEFT,4 921200
4
ANTINOISE CAPSULE LEFT,4 921199
4
ANTINOISE CAPSULE RIGHT
4
ANTINOISE CAPSULE LEFT
4
COVERING RIGHT
4
COVERING LEFT
6
COVERING RIGHT
6
COVERING RIGHT
6
COVERING RIGHT
6
COVERING RIGHT
6
COVERING ,5 349379
6
COVERING ,5 349379
6
COVERING , THE OLD PART MUST NO LONGER BE INSTALLED5 349378, Replaced By: A6455202422, +001A6455205241, +001A6455205441, +003N000933008212, +002N000961012164, +001N000961016100, +003N009021008205, +002N913004012008
8
BRACKET COVERING
10
BRACKET COVERING
12
BRACKET COVERING
12
BRACKET REAR
16
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
18
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
18
SPRING WASHER , Replaced By: N000137008212
19
WASHER BRACKET TO LEFT SIDE MEMBER
19
WASHER , Replaced By: N009021008213
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
NUT , Replaced By: N913004008001
22
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
22
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
22
SCREW , Replaced By: N304017008016
24
WASHER BRACKET TO LEFT SIDE MEMBER
24
WASHER BRACKET TO LEFT SIDE MEMBER
24
WASHER , Replaced By: N009021008213
28
BRACKET LEFT FRONT
28
BRACKET LEFT FRONT
29
BRACKET LEFT FRONT
30
BRACKET RIGHT FRONT,5 599989
30
BRACKET RIGHT FRONT
30
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6565203844
30
BRACKET RIGHT FRONT,5 599989
30
BRACKET RIGHT FRONT,5 3493795 599988
32
SCREW CONSOLE TO FRAME
32
SCREW CONSOLE TO FRAME
32
SCREW , Replaced By: N308676016020
34
BRACKET LEFT
34
BRACKET LEFT,5 349379
36
BRACKET RIGHT
36
BRACKET RIGHT,5 349379
38
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
38
SCREW , Replaced By: N308676012026
38
SCREW BRACKET TO LEFT SIDE MEMBER
38
SCREW BRACKET TO LEFT SIDE MEMBER
42
NUT SUPPORT TO SIDE MEMBER
44
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
44
SCREW , Replaced By: N308676014020
46
NUT BRACKET TO SIDE MEMBER
46
NUT , Replaced By: N910113014001
48
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
48
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
48
SCREW , Replaced By: N308676012012
48
SCREW SUPPORT TO SIDE MEMBER
48
SCREW , Replaced By: N000961012025
48
SCREW BRACKET TO FRAME M 12X35
50
NUT SUPPORT TO SIDE MEMBER
52
SCREW BRACKET TO FRAME M 12X35
52
SCREW SUPPORT TO SIDE MEMBER
52
SCREW , Replaced By: N000961012025
54
NUT SUPPORT TO SIDE MEMBER
55
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
55
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
56
SCREW BRACKET TO SIDE MEMBER
56
SCREW BRACKET TO SIDE MEMBER
56
SCREW , Replaced By: N304017010002
56
SCREW PIPE CLAMP
56
SCREW PIPE CLAMP
56
SCREW , Replaced By: N304017008021
58
WASHER BRACKET TO LEFT SIDE MEMBER
58
WASHER , Replaced By: N009021008213
60
NUT STRAP TO BRACKET
60
NUT STRAP TO BRACKET
60
NUT , Replaced By: N910113010000
60
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
NUT , Replaced By: N913004008001
61
BRACKET COVER PLATE TO SUPPORT,5 491097
62
BEARING TORSION BAR BEARING
62
SPACER TUBE , Replaced By: A3093200073
63
BRACKET COVER PLATE TO SUPPORT,5 491097
64
MOLDED PIECE HAND PUMP
64
BRACKET , Replaced By: A3805450138
66
BRACKET COVERING TO CAB
68
SCREW PIPE CLAMP
68
SCREW , Replaced By: N304017008021
68
SCREW BRACKET TO CROSS CONNECTION STRUT
68
SCREW , Replaced By: N304017008034
70
SCREW 3/2-WAY VALVE TO BRACKET
72
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
72
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
74
WASHER COMPRESSED AIR LINE TO BRACKET
74
WASHER , Replaced By: N009021006208
76
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
76
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
76
NUT , Replaced By: N913004008001
78
NUT PUMP TO BRACKET
78
NUT , Replaced By: N913004006001
80
SCREW CAB FLOOR COVERING M 6X25
82
WASHER COMPRESSED AIR LINE TO BRACKET
82
WASHER , Replaced By: N009021006208
84
NUT PUMP TO BRACKET
84
NUT , Replaced By: N913004006001
90
SCREW BEARING BRACKET TO FRAME
94
WASHER BRACKET TO LEFT SIDE MEMBER
94
WASHER , Replaced By: N009021008213
104
BRACKET RIGHT SHOCK ABSORBER,5 349378
106
SCREW PIPE CLAMP
106
SCREW , Replaced By: N304017008021
110
CONSOLE CAB SUSPENSION
110
CONSOLE , Replaced By: A3873170001
110
CONSOLE , Replaced By: A6553170001
999
COVERING LEFT
999
COVERING RIGHT,K 003030K 037713
999
COVERING RIGHT
999
ANTINOISE CAPSULE RIGHT
999
ANTINOISE CAPSULE LEFT
999
COVER PLATE SHOCK ABSORBER
