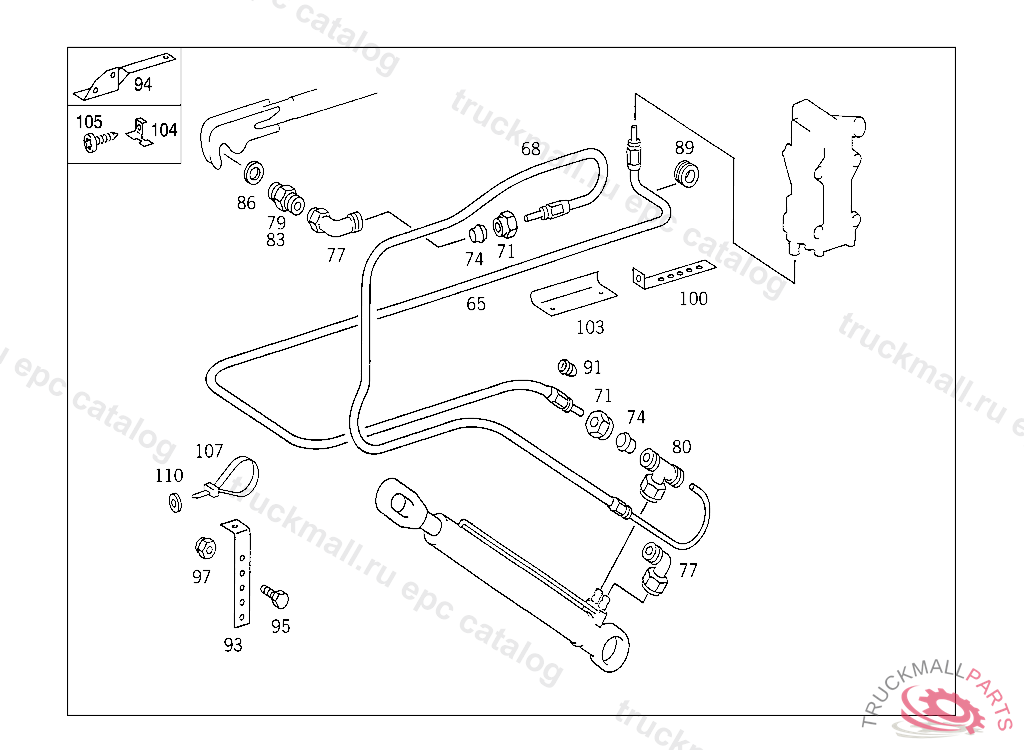

Поз.
Артикул
Описание
65
HOSE , Replaced By: A6555530582
65
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
65
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
68
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
71
UNION NUT
74
GLAND , Replaced By: A0019901667
74
SEAL CONE
77
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
77
FITTING FROM PUMP TO CYLINDER
77
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
77
FITTING FROM PUMP TO CYLINDER
80
T-FITTING. FITTING AT INJECTION PUMP
83
FITTING 3/2-WAY VALVE,CONNECTION: "30"
86
SEAL RING LINE CONNECTION
89
GROMMET LINE THRU FRAME
94
BRACKET HIGH PRESSURE HOSE TO CAB
100
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
107
LOOM TIE LINE MOUNTING 280 MM
107
LOOM TIE LINE MOUNTING
110
WASHER , Replaced By: N000125008443
110
WASHER EXHAUST MUFFLER TO STRAP
