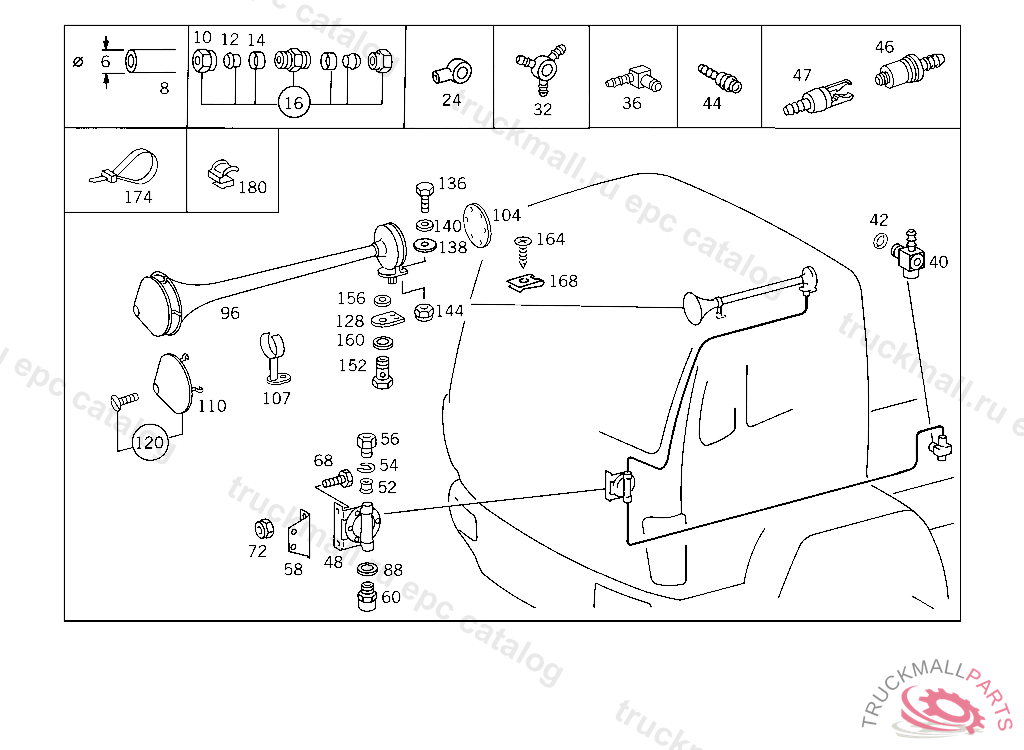

Поз.
Артикул
Описание
8
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
PLASTIC PIPE RISING PIPE 4X6 MM
10
UNION NUT
12
GLAND , Replaced By: A0019901667
12
SEAL CONE
14
SLEEVE LEAK LINE
16
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
24
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
32
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
36
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
40
CONNECTOR DISTRIBUTOR TO CAB
42
SEAL RING
44
FITTING LINE CONNECTION TO FIRE WALL,5 726664
46
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
47
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
48
VALVE (3/2-WAY SOLENOID VALVE)
52
SEAL RING , Replaced By: A0009940747
52
LOCK RING LINE CONNECTION
54
LOCK , Replaced By: A0009945448
54
LOCK LINE CONNECTION
56
SCREW. UNION SCREW , Replaced By: A0009973734
56
SCREW. UNION SCREW LINE CONNECTION
58
BRACKET 3/2-WAY VALVE TO BRACKET
58
BRACKET 3/2-WAY VALVE TO BRACKET
58
BRACKET 3/2-WAY VALVE TO BRACKET
60
FITTING LINE CONNECTION
68
SCREW SWITCH TO ENGINE
72
NUT , Replaced By: N913002006009
72
NUT OIL TANK TO BRACKET
88
SEAL RING LINE CONNECTION
96
AIR HORN , Replaced By: A0005422421
96
AIR HORN , Replaced By: A0005423521
96
AIR HORN , Replaced By: A0005424221
96
AIR HORN LOW NOTE
96
AIR HORN , Replaced By: A0005422521
96
AIR HORN , Replaced By: A0005423621
96
AIR HORN , Replaced By: A0005424321
96
AIR HORN HIGH NOTE
104
DIAPHRAGMTO 000 542 19 21/20 21
107
BRACKET CHROMIUM PLATED TO 000 542 24 21/25 21/35 21/36 21
107
BRACKET HIGH-GRADE STEEL TO 000 542 42 21/43 21
110
CAPTO 000 542 19 21/20 21
120
COVERING (PARTS KIT),AIR HORN,CHROMIUM PLATED TO 000 542 24 21/25 21/35 21/36 21
120
COVERING (PARTS KIT),AIR HORN HIGH-GRADE STEEL TO 000 542 42 21/43 21
128
SHIM HORN TO CAB ROOF
128
SHIM HORN TO CAB ROOF
136
SCREW , Replaced By: N304017006020
136
SCREW LICENSE PLATE TO BRACKET
138
WASHER HORN TO CAB ROOF
140
WASHER , Replaced By: N009021006208
140
WASHER COMPRESSED AIR LINE TO BRACKET
144
NUT , Replaced By: N913004006001
144
NUT PUMP TO BRACKET
152
HOLLOW SCREW HEATING CONNECTION
156
SEAL RING FUEL LINE TO FEED PUMP
160
SEAL RING LINE CONNECTION
164
SHEET METAL SCREW BRACKET TO CAB,5 906887
168
LOCK BRACKET TO ROOF RAIL
174
LOOM TIE LINE MOUNTING 280 MM
180
CLIP CABLE HARNESS TO ROOF RAIL
999
BRACKET , Replaced By: A6554294840
999
BRACKET
999
SHIM
