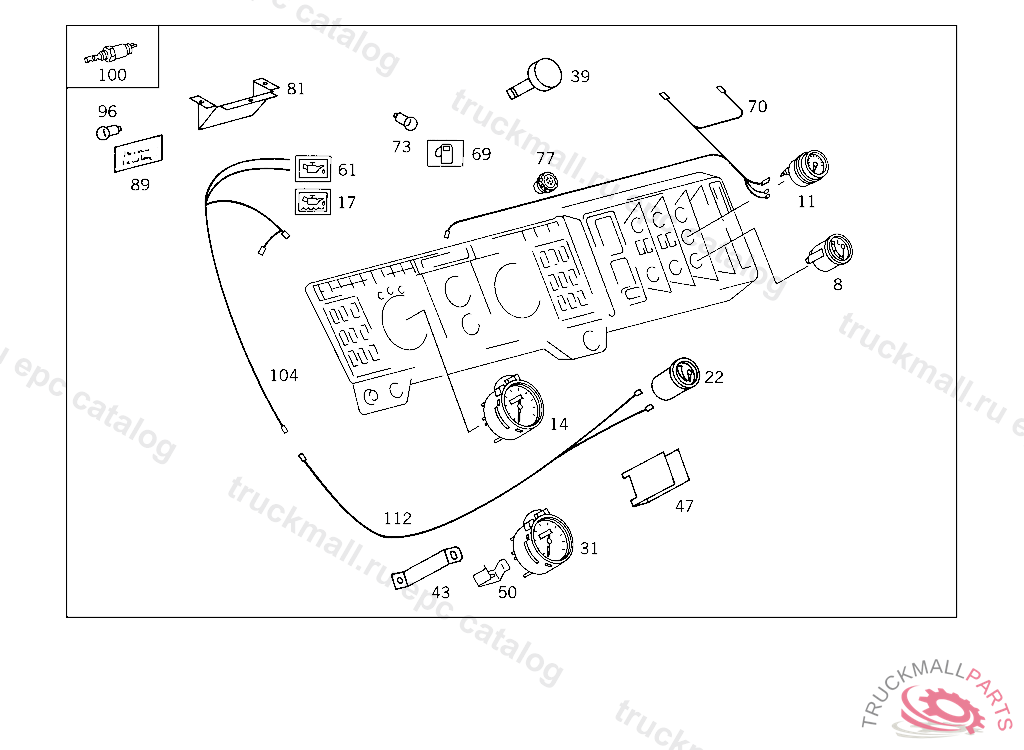

Поз.
Артикул
Описание
8
TEMPERATURE GAUGE TEMPERATURE INDICATOR
8
TEMPERATURE GAUGE , Replaced By: A0035428505
11
VOLTMETER
14
TACHOGRAPH , ON INSTALLATION OF SA 46817,PLEASE REFER TO SETTING VALUE UP TO IDENT NO. K 074702 EXCEPT FOR K 062141, Replaced By: A0115423710
14
TACHOGRAPH MEASURING RANGE: 125 KM/H
14
SPEEDOMETER
17
LENS OIL SUPPLY
22
FUEL GAUGE DASH UNIT CENTRAL CONSOLE
31
INSTRUMENT CLUSTER
39
COVERING TACHOGRAPH, .......INO.9051I.......I I II TYPE 650-659
43
BRACKET TACHOGRAFH TO INSTRUMENT PANEL, UP TO IDENT NO. K 074702 EXCEPT FOR K 062141
47
BRACKET GAS PRESSURE DISPLAY IN ROOF CONSOLE
50
SPRING GAS PRESSURE DISPLAY IN ROOF CONSOLE
61
LENS LESS SYMBOL, RED
61
LENS , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0075454990
69
LENS FUEL RESERVE INDICATION
69
LENS FUEL RESERVE INDICATION
70
CABLE HARNESS VOLTMETER
73
BULB TELL-TALE LAMP
77
BUZZER AUDIBLE WARNING
77
BUZZER AUDIBLE WARNING
81
CAP GAS PRESSURE DISPLAY IN ROOF CONSOLE
89
GUIDE SIGN GAS PRESSURE DISPLAY IN ROOF CONSOLE
96
BULB TELL-TALE LAMP
100
SENDER UNIT OIL LEVEL
104
CABLE HARNESS WARNING LAMP
112
CABLE HARNESS FUEL GAUGE DASH UNIT TO DASH
999
SOCKETTO 003 542 46 16,99 16
999
CABLE HARNESS WARNING LAMP
999
BOOT PRESSURE SENSOR
