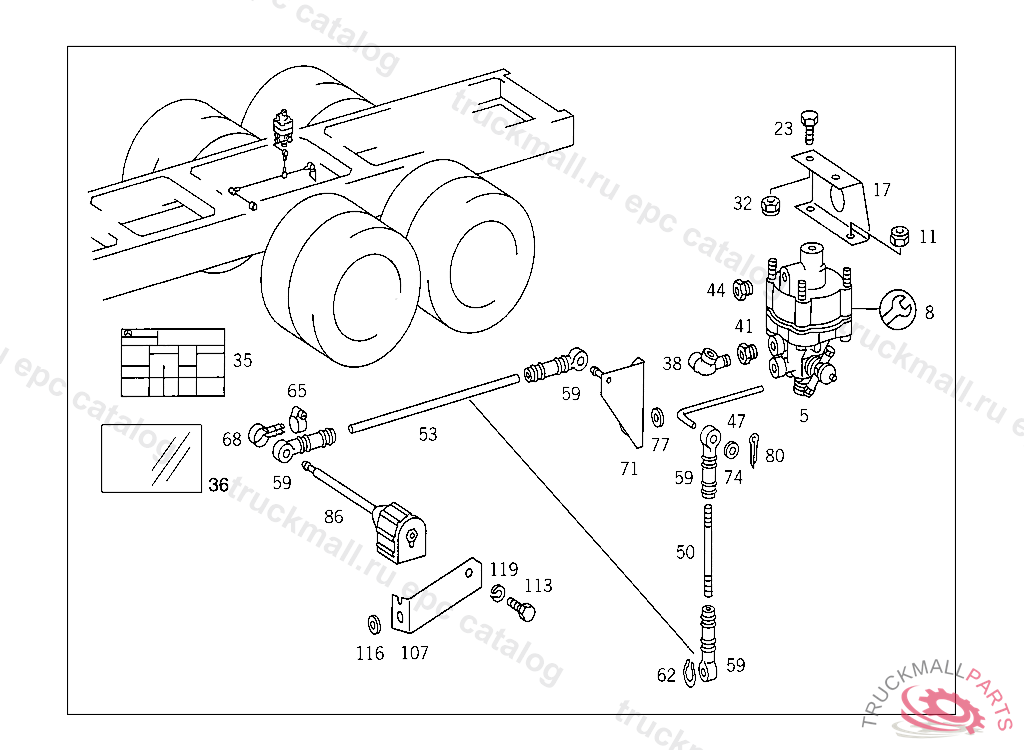

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE "WABCO"
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE "BOSCH", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE "KNORR"
8
REPAIR KIT BRAKE POWER REGULATOR WABCO
8
REPAIR KIT BRAKE POWER REGULATOR KNORR
11
NUT , Replaced By: N913004008001
11
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
11
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
BRACKET BRAKE POWER REGULATOR
23
SCREW , Replaced By: N304017008021
23
SCREW PIPE CLAMP
32
NUT STRAP TO BRACKET
35
GUIDE SIGN LOAD-DEPENDING BRAKE
36
ADHESIVE FOIL GUIDE SIGN
38
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
41
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW , Replaced By: A0009973734
44
SCREW. UNION SCREW LINE CONNECTION
47
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
50
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
53
ROD BRAKE POWER REGULATOR CONTROL
59
CONNECTOR PULL ROD TO LEVER
59
CONNECTOR PULL ROD TO LEVER
62
LOCK RING PULL ROD TO LINK
65
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
65
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
65
CLAMP , Replaced By: N000000000665
68
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
68
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
71
BRACKET LINK
74
WASHER EXHAUST MUFFLER TO STRAP
74
WASHER , Replaced By: N000125008443
77
WASHER
80
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
86
METAL SPRING BELLOWS BEARING BRACKET TO REAR AXLE,K 006315
107
BRACKET METAL SPRING BELLOWS,REAR AXLE I
113
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
116
WASHER , Replaced By: N000125017016
116
WASHER BRACKET TO FRAME
119
LOCK WASHER FITTING TO BRACKET
