Mercedes N000933010247 - Болт

2448,2550,2553,3248, 3253 658.071

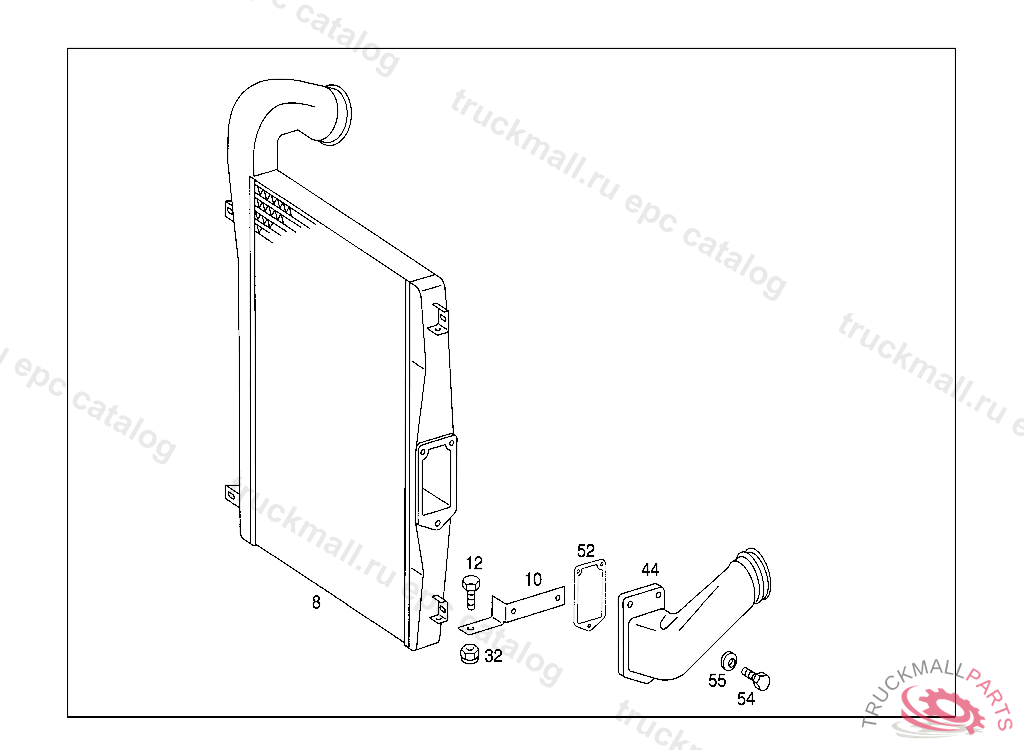

50 RADIATOR - 480 CHARGE AIR INTERCOOLING IL. 2

Поз.
Артикул
Описание
8
A6555010201
RADIATOR (CHARGING AIR INTERCOOLER)
10
A6555050440
BRACKET CHARGING AIR INTERCOOLER TO RADIATOR
12
N304017008021
SCREW PIPE CLAMP
32
N913004006004
NUT LONGITUDINAL DIFFERENTIAL LOCK BRACKET,5 963747
44
A6555280507
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
52
A6255280180
GASKET PIPE TO CHARGING AIR INTERCOOLER
54
N000933010247
SCREW BRACKET TO SIDE MEMBER M10X38
55
N006796010103
CONICAL SPRING WASHER PIPE SOCKET TO OIL COOLER
999
A6255280080
GASKET , Replaced By: A6255280180
999
N000125008418
WASHER , Replaced By: N000125008443
999
N000933006103
SCREW , Replaced By: N304017006018
999
N000933008147
SCREW , Replaced By: N304017008021
999
N000933008152
SCREW , Replaced By: N304017008027
999
N913004008004
NUT , Replaced By: N913004008001
