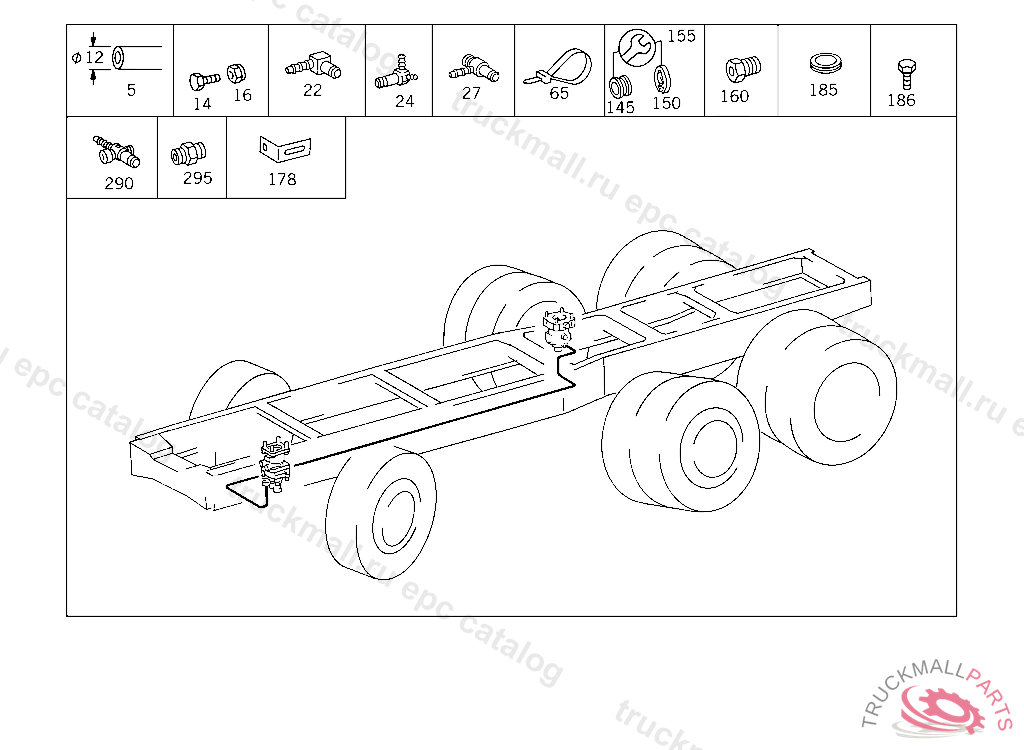

Поз.
Артикул
Описание
5
HOSE , Replaced By: A0009872827
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
14
SCREW , Replaced By: N304017006016
14
SCREW PUMP TO BRACKET
16
NUT , Replaced By: N913004006001
16
NUT PUMP TO BRACKET
22
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
22
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
24
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
27
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
65
LOOM TIE LINE MOUNTING
65
LOOM TIE LINE MOUNTING 280 MM
145
SEAL RING , Replaced By: A0009940747
145
LOCK RING LINE CONNECTION
145
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
150
LOCK , Replaced By: A0009945448
150
LOCK LINE CONNECTION
150
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
155
REPAIR KIT , Replaced By: A0309971748
155
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
155
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
160
SCREW. UNION SCREW LINE CONNECTION
160
SCREW. UNION SCREW , Replaced By: A0009973734
160
SCREW. UNION SCREW LINE CONNECTION
160
SCREW. UNION SCREW LINE CONNECTION
160
SCREW. UNION SCREW LINE CONNECTION
160
SCREW. UNION SCREW LINE CONNECTION
178
BRACKET FUEL LINES TO TRANSMISSION
185
EXPANSION PLUG
186
SCREW VALVE TO BRACKET, Replaced By: N304014008002
186
SCREW VALVE TO BRACKET
186
SCREW TWO-WAY VALVE TO FRAME M 8X140
290
DISTRIBUTOR LINE CONNECTION
295
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
999
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
999
SCREW LEVER TO ENGINE CONTROL SHAFT
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
BRACKET CABLE HARNESS MOUNTING
999
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
999
BRACKET TRAILER PLUG SOCKET
999
BASE AIR RESERVOIR STRAP
999
BRACKET ,K 012509K 142857
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
BRACKET PLUG-SOCKET BRANCH-OFF TO FRAME SIDE MEMBER,06.95
999
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
999
ANGLE RIGHT
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
999
ANGLE RIGHT
999
SUPPORT BRAKE LINE COUPLINGS
999
STEP
999
BASE AIR RESERVOIR,STRAP
999
STRAP SERVICE BRAKE AIR RESERVOIR
999
LOCK FRONT AXLE,LEFT,K 009080
999
LOCK FRONT AXLE,LEFT
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
ANGLE LEFT,5 560032
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
999
BRACKET
999
BASE SUPPORT TO SIDE MEMBER
999
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
999
BRACKET
999
BRACKET CABLE TO TRANSMISSION
999
VALVE PRESSURE LIMIT M 22,K 025180
999
SCREW , Replaced By: N910105014019
999
SCREW BRACKET TO SIDE MEMBER,5 597425
999
VALVE PARKING BRAKE LESS TRAILER CONTROL WABCO
999
SCREW , Replaced By: N910105006023
999
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
999
HANDLE"WABCO"
999
NUT AT FILTER BRACKET
999
TEST CONNECTION
