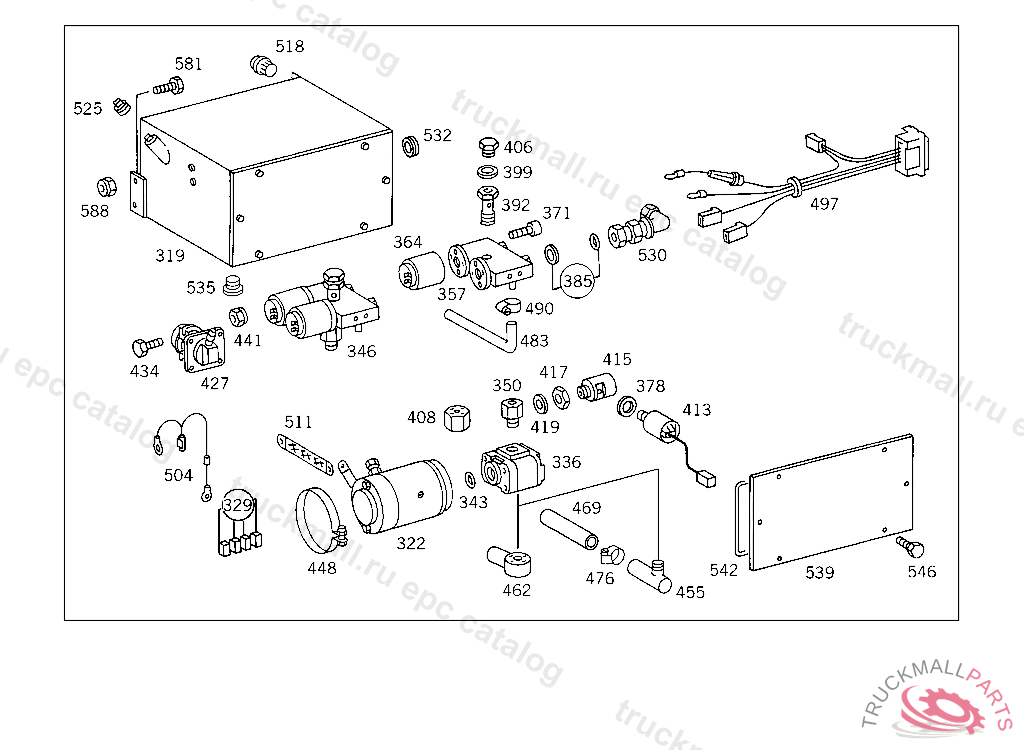

Поз.
Артикул
Описание
319
HYDRAULIC UNIT
319
HYDRAULIC UNIT
319
HYDRAULIC UNIT
319
HYDRAULIC UNIT
319
HYDRAULIC UNIT
322
MOTORSWE
322
MOTORBOSCH
329
CARBON BRUSH PARTS KIT SWE
329
CARBON BRUSH PARTS KIT BOSCH
336
PUMPSWE
336
PUMPBOSCH
343
SEAL RINGSWE
343
SEAL RINGBOSCH
346
VALVE , Replaced By: A0005505355
346
VALVE (CONTROL VALVE)
350
VALVE (CHECK VALVE) SWE
357
VALVE (CONTROL VALVE)
357
VALVE , Replaced By: A0005504355
357
VALVE (CONTROL VALVE)
364
MAGNET
371
SCREW
378
SEAL RINGTO 006 997 00 72
385
SEAL RING PARTS KIT SWE
392
HOLLOW SCREW SOLENOID VALVE
399
SEAL RING SOLENOID VALVE
406
SCREW , Replaced By: A0019976130
406
SCREW PLUG
408
VALVE (CHECK VALVE) BOSCH
413
SWITCH (PRESSURE SWITCH) 70 BAR
413
SWITCH (PRESSURE SWITCH) 70 BAR
413
SWITCH (PRESSURE SWITCH) 140 BAR
415
T-FITTING PRESSURE SWITCH
417
NUT PRESSURE SWITCH
419
SEAL RING PRESSURE SWITCH
427
CONTACTOR
434
SCREW IN CASE OF SUBSEQUENT INSTALLATION
441
NUT TWO-WAY VALVE TO BRACKET
448
BRACKET ENGINE
455
LINE OIL TANK SWE
455
LINE OIL TANK SWE
462
LINE OIL TANK BOSCH
469
HOSE
476
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
476
CLAMP , Replaced By: N000000000667
483
HOSE FROM OIL TANK TO SOLENOID VALVE
490
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
490
CLAMP , Replaced By: N916017011001
497
CABLE HARNESS TRAILING AXLE CONTROL
497
CABLE HARNESS ELECTRIC
504
CONTROL UNIT THERMAL SWE
511
GROUND STRAP ENGINE SWE
518
FILTER HOUSING OIL TANK
525
SCREW PLUG OIL TANK
530
SCREW CONNECTION SOLENOID VALVE
530
SCREW CONNECTION SOLENOID VALVE
532
GROMMET OIL TANK
532
GROMMET , Replaced By: A6999970181
535
PLUG OIL TANK
535
PLUG OIL TANK
539
COVER SWITCH BOX
542
GASKET COVER TO SWITCH BOX
542
GASKET COVER TO SWITCH BOX
546
SCREW CAB FLOOR COVERING M 6X25
581
SCREW BRACKET TO SIDE MEMBER
581
SCREW , Replaced By: N304017010002
581
SCREW END PIECE TO EXHAUST PIPE M 10X25
588
NUT STRAP TO BRACKET
588
NUT , Replaced By: N910113010000
999
SHACKLE LEFT
999
SHACKLE RIGHT
999
COVER SWITCH BOX
999
PIPE SOLENOID VALVE
999
BRACKET OIL LINE MOUNTING
999
BRACKET HYDRAULIC LINES TO FRAME
999
ANGLE BATTERY CABLE TO SIDE MEMBER, NOT USED
