Поз.
Артикул
Описание

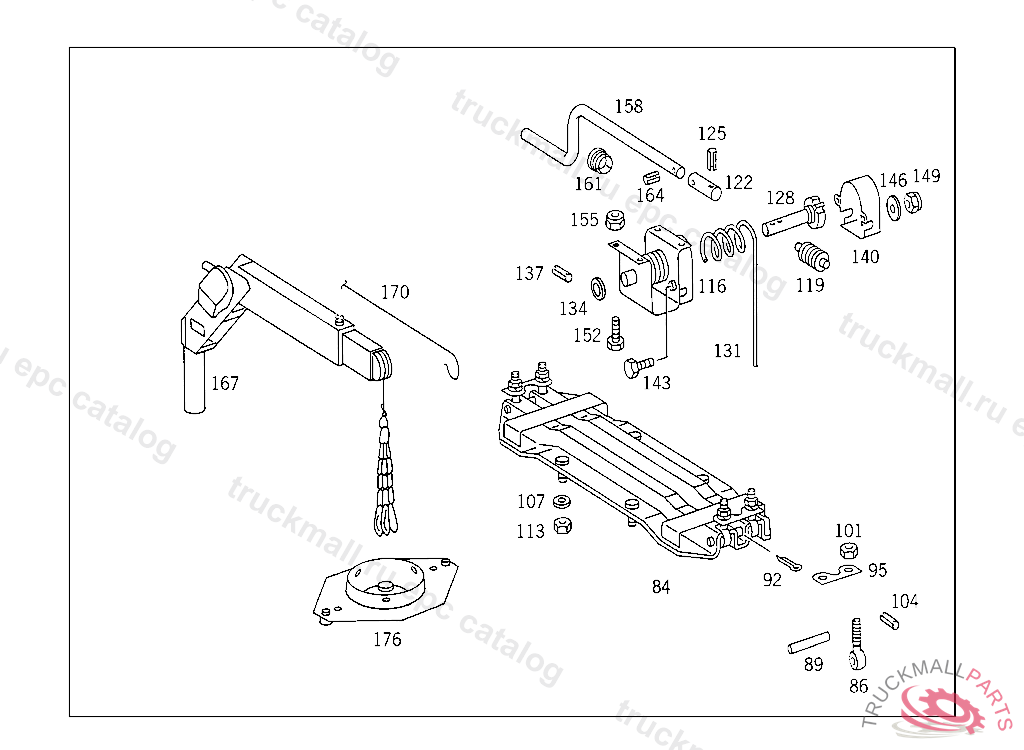

84
BRACKET SPARE WHEEL CARRIER,4 613857
86
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
86
SCREW , Replaced By: A6519900023
89
PIN AT BRACKET
92
COTTER PINROCKINGER TYP 260 G140
95
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
101
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
101
NUT , Replaced By: N308673016001
104
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
107
WASHER SPARE WHEEL TO BRACKET
113
NUT REAR SPRING TO REAR AXLE
113
NUT , Replaced By: N308674020000
113
NUT , Replaced By: N308673020002
116
SPARE WHEEL HOIST
119
WORM
122
BUSHING
125
CLAMPING SLEEVE CRANK TO BUSHING
128
STOP GEAR ,5 127460
131
WIRE CABLE
134
WASHER WORM AND SHAFT TO BRACKET
137
CLAMPING PIN BRACKET TO SUPPORT
137
CLAMPING SLEEVE , Replaced By: N308752008000
140
COVERING PROTECTION PLATE TO BRACKET
143
SCREW COVER PLATE TO BRACKET
146
WASHER COMPRESSED AIR LINE TO BRACKET
146
WASHER , Replaced By: N009021006208
149
NUT PUMP TO BRACKET
149
NUT , Replaced By: N913004006001
152
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
155
NUT STRAP TO BRACKET
155
NUT , Replaced By: N910113010000
158
CRANK SPARE WHEEL HOIST
161
BUSHING CRANK
164
CLAMPING SLEEVE CRANK TO BUSHING
