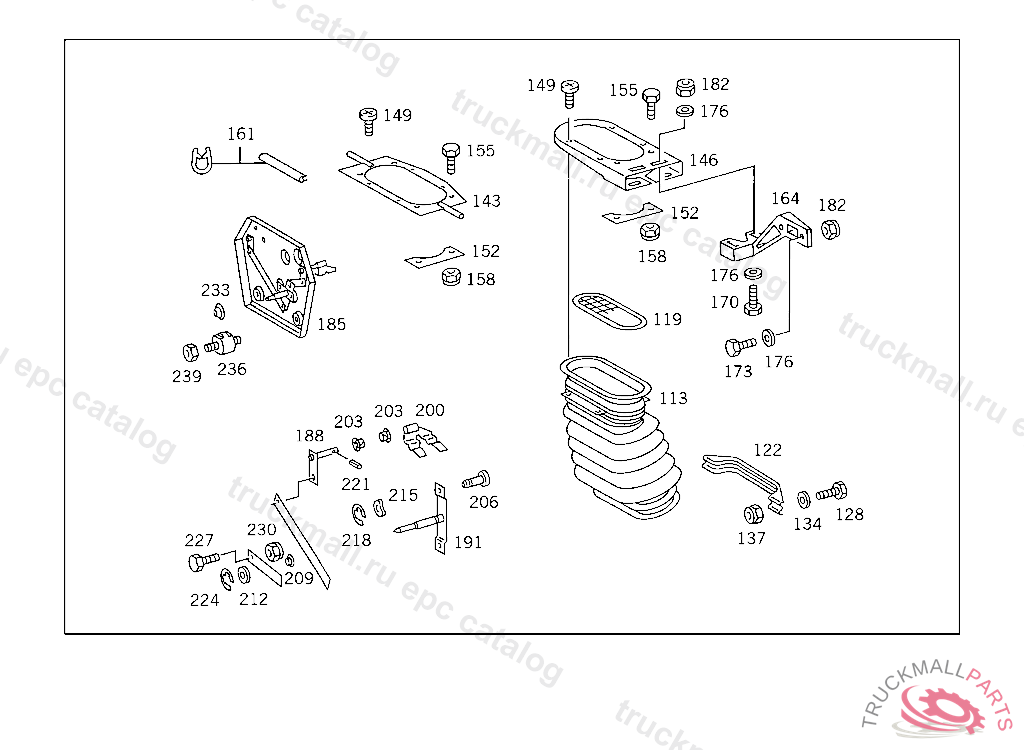

Поз.
Артикул
Описание
113
BOOT FROM AIR CLEANER TO INTAKE PIPE
119
STRAINER BOOT
122
CLAMP BOOT TO AIR DUCT AND TO AIR CLEANER
128
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
128
SCREW , Replaced By: N304017008027
134
WASHER EXHAUST MUFFLER TO STRAP
134
WASHER , Replaced By: N000125008443
137
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
137
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
137
NUT , Replaced By: N913004008001
143
BRACKET BOOT
149
SCREW BOOT TO BRACKET
152
BRACKET BOOT
155
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
155
SCREW , Replaced By: N304017008016
158
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
158
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
158
NUT , Replaced By: N913004008001
161
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
161
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
185
COVER AIR DUCT
185
COVER AIR INTAKE PIPE LOCKING MECHANISM BEHIND CAB,5 719571
188
PLATE TOP LEFT AND RIGHT
191
LEVER LOCKING MECHANISM
200
BRACKET
200
BRACKET
203
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
206
PIN PLATE TO PLATE AND TO LEVER
209
WASHER PLATE TO LEVER
212
WASHER
215
SPRING WASHER SHIFTING CYLINDER TO YOKE
218
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
221
CLAMPING SLEEVE BRACKET TO PLATE
224
LOCK PLATE INTERMEDIATE BEARING
227
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
227
SCREW , Replaced By: N304017008016
230
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
230
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
230
NUT , Replaced By: N913004008001
233
GROMMET EXPANSION PLUG
236
RUBBER BUFFER SUPPORT TO BRACKET
239
NUT
999
LEVER COVER
999
MOUNTING BOW , Replaced By: A6555280344
999
MOUNTING BOW
999
MOUNTING BOW
