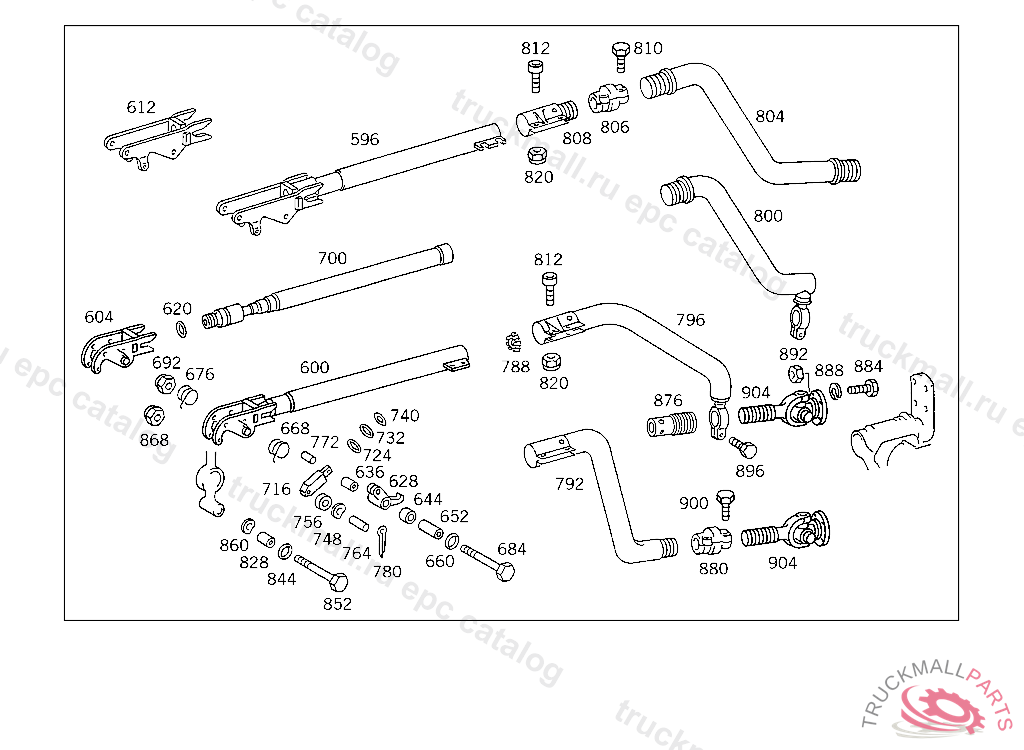

Поз.
Артикул
Описание
596
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
596
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 142857
596
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
596
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
596
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 142857
600
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
600
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 131521
604
ROD END HYDRAULIC RELEASE
612
ROD END HYDRAULIC RELEASE
620
SEAL RING HYDRAULIC RELEASE
628
PAWL SHIFTING ROD,5 443048
636
BUSHING PAWL TO ROD END,5 443048
644
BUSHING PAWL TO ROD END,5 443048
652
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
660
ROUND CORD RING. SEAL RING ROD END
668
SPRING ROD END
676
SPRING ROD END
684
SCREW SHIFTING ROD TO SHIFT LEVER
692
NUT , Replaced By: N910113010000
692
NUT STRAP TO BRACKET
700
SHIFTING TUBE (TELESCOPIC TUBE)
700
SHIFTING TUBE (TELESCOPIC TUBE)
716
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
716
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
716
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
716
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
724
SEAL RING PISTON RINGS WABCO
732
SEAL RING SCREW FITTING WABCO
740
SEAL RING OUTSIDE WABCO
748
SPRING WASHER SHIFTING CYLINDER TO YOKE
756
WASHER BETWEEN FRONT AND REAR SHIFTING TUBES
764
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
764
PIN SHIFTING CYLINDER TO YOKE
772
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
772
PIN , Replaced By: N001444008235
780
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
780
COTTER PIN LEVER TO ROD
788
WASHER BETWEEN THE SHIFTING RODS
788
WASHER BETWEEN THE SHIFTING RODS
788
WASHER BETWEEN FRONT AND REAR SHIFTING TUBES
792
SHIFTING ROD
792
SHIFTING ROD
792
SHIFTING ROD REAR
792
SHIFTING ROD REAR
792
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6552606147
792
ROD REAR
792
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6552605947
792
ROD REAR
792
SHIFTING ROD
792
SHIFTING ROD REAR
792
SHIFTING ROD REAR
792
SHIFTING ROD
792
SHIFTING ROD
792
SHIFTING ROD
792
SHIFTING ROD
792
SHIFTING ROD
796
SHIFTING ROD , Replaced By: A6552606447
796
ROD
796
SHIFTING ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6522606633
796
SHIFTING ROD ,K 131521
796
ROD
796
ROD
796
ROD
796
ROD
796
SHIFTING ROD REAR
796
SHIFTING ROD REAR
796
SHIFTING ROD REAR
796
SHIFTING ROD REAR
796
SHIFTING ROD REAR
796
SHIFTING ROD REAR
796
SHIFTING ROD REAR
800
SHIFTING ROD REAR
804
SHIFTING ROD REAR
806
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
808
BRACKET FRONT SHIFTING ROD TO REAR SHIFTING ROD
810
SCREW , Replaced By: N304017010047
810
SCREW CONNECTOR TO REAR SHIFTING ROD
810
SCREW CONNECTOR TO REAR SHIFTING ROD
812
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
820
NUT , Replaced By: N910113010000
820
NUT STRAP TO BRACKET
828
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
828
PIN SHIFTING ROD TO JOINT
844
SEAL RING LEVER BEARING
844
ROUND CORD RING. SEAL RING ROD END
852
SCREW SHIFTING ROD TO SHIFT LEVER
852
SCREW SHIFTING ROD TO SHIFT LEVER
852
SCREW SHIFTING ROD TO SHIFT LEVER
860
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
860
SPRING WASHER LEVER TO BRACKET
868
NUT , Replaced By: N910113010000
868
NUT STRAP TO BRACKET
868
NUT STRAP TO BRACKET
876
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
876
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
880
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
884
SCREW SHIFTING ROD TO TRANSMISSION
884
SCREW SHIFTING ROD TO TRANSMISSION
884
SCREW SHIFTING ROD TO TRANSMISSION
888
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
888
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
888
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
892
NUT
892
NUT
892
NUT
896
SCREW CONNECTOR TO REAR SHIFTING ROD
896
SCREW CONNECTOR TO REAR SHIFTING ROD
900
SCREW REAR EXHAUST PIPE TO MUFFLER
904
JOINT SHIFTING ROD TO TRANSMISSION
904
JOINT SHIFTING ROD TO TRANSMISSION
904
JOINT SHIFTING ROD TO TRANSMISSION
904
JOINT SHIFTING ROD TO TRANSMISSION
999
SHIFT MECHANISM ELECTROPNEUMATIC POWER SHIFT, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
HANDLE 3/2-WAY VALVE TO BRACKET
999
HANDLE TRANSFER CASE ACTUATION
999
SCREW BRACKET TO BEARING BRACKET,K 274033
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING (PARTS KIT),LINE RUPTURE
999
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
999
HOSE , Replaced By: A0009872827
999
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
BOOT SHIFT LEVER
999
BRACKET SHIFT MECHANISM
999
BRACKET LINE MOUNTING
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR
999
COVER COVERING
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SHIM , Replaced By: A6552680184
999
COVERING SHIFT LEVER, TO BE ADAPTED DURING ASSEMBLY
999
SHIM SHIFT MECHANISM AND BRACKET TO CAB FLOOR
999
COVERING SHIFT MECHANISM
999
COVERING SHIFT MECHANISM
999
GUMMED LABEL , Replaced By: A6555840338
999
GUMMED LABEL , Replaced By: A6555840438
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 984064 625.129,655-659 5 957779
999
GUMMED LABEL GEARSHIFT DIAGRAM
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH, 625.101,652-654 5 954065 625.120,655-659 5 957780
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH
999
GUIDE SIGN P.T.O. CONTROL
999
GUMMED LABEL "EMERGENCY SHIFT", IN GERMAN,ENGLISH,FRENCH
