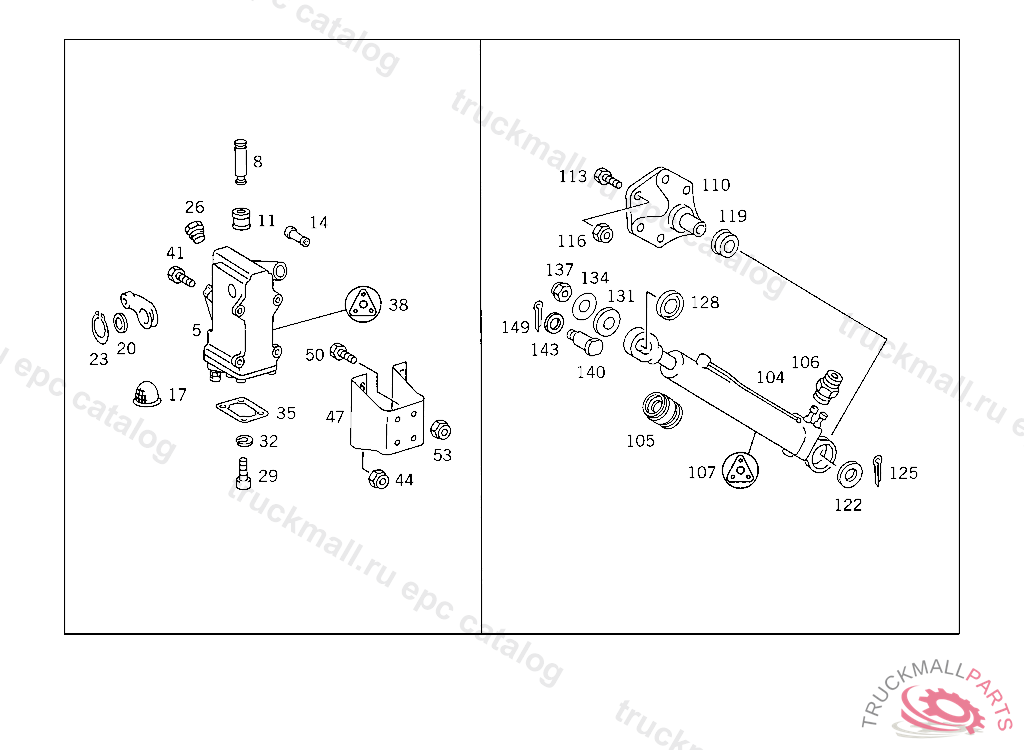

Поз.
Артикул
Описание
5
PUMP (HAND PUMP) WEBER
5
PUMP (HAND PUMP) POWER PACKER
5
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
5
PUMP (HAND PUMP) WEBER
8
PISTONTO 000 553 89 01
8
PISTONTO 000 553 79 01,WEBER
11
VALVETO 000 553 79 01,WEBER
11
VALVETO 000 553 89 01
14
FILTER
20
FITTED WASHER
23
LOCK RING
26
SCREWTO 000 553 65 01,000 553 69 01,
26
SCREW
29
SCREW , Replaced By: N000000000190
29
SCREW
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
38
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
38
GASKET KIT HAND PUMP
41
SCREW BRACKET TO SIDE MEMBER
41
SCREW , Replaced By: N304017010002
44
NUT STRAP TO BRACKET
44
NUT , Replaced By: N910113010000
47
BRACKET HAND PUMP
50
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
50
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
50
SCREW , Replaced By: N308676014020
53
NUT BRACKET TO SIDE MEMBER
53
NUT , Replaced By: N910113014001
104
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
104
CYLINDER , Replaced By: A0015533505
104
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
105
GUIDEWEBER
106
FITTINGWEBER,TO 001 553 35 05
107
GASKET KIT HYDRAULIC CYLINDER WEBER
110
BEARING BRACKET HYDRAULIC CYLINDER
113
SCREW BEARING BRACKET TO FRAME M 14X20, MODEL 415/416/417 FOR USE WITH SHORT CAB MERCEDES BENZ
113
SCREW , Replaced By: N308676016006
113
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
116
NUT , Replaced By: N910113016001
116
NUT CONSOLE TO SUPPORT
119
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
122
WASHER HYDRAULIC CYLINDER TO CAB
125
COTTER PIN6,3X36 MM
128
WASHER HYDRAULIC CYLINDER TO CAB
131
WASHER HYDRAULIC CYLINDER TO CAB
134
WASHER HYDRAULIC CYLINDER TO CAB
137
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
137
NUT COMBINATION CYLINDER TO BEARING BRACKET
