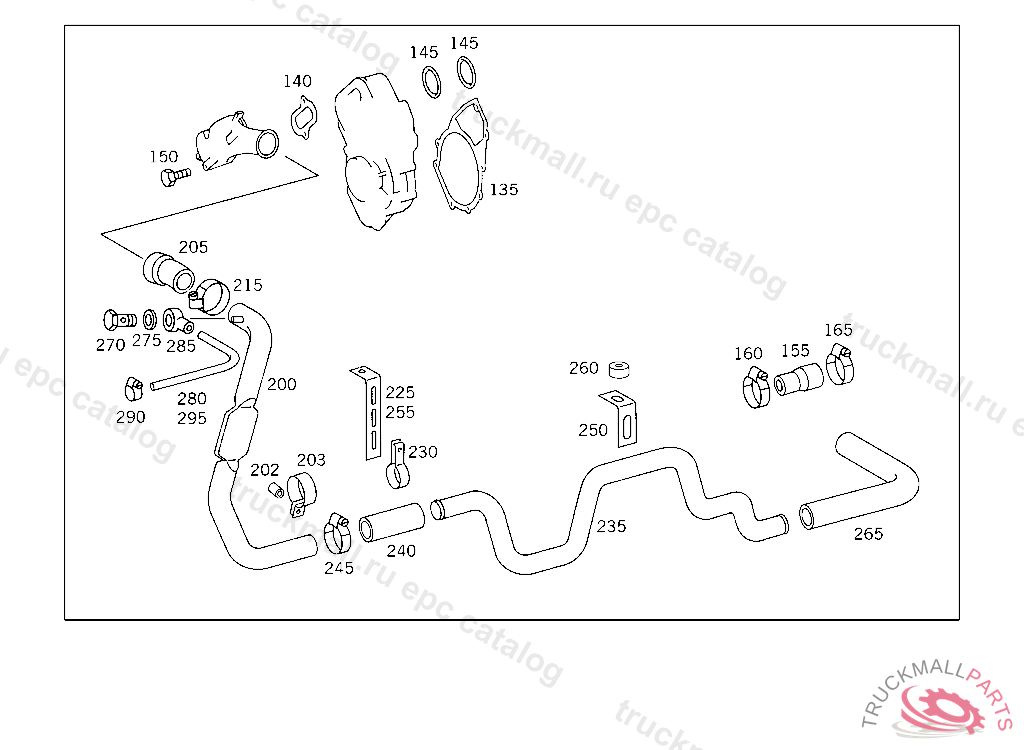

Поз.
Артикул
Описание
135
GASKET WATER PUMP
140
GASKET OUTLET TO ENGINE
145
SEAL RING AT WATER PUMP
145
SEAL RING , Replaced By: A0249972848
150
SCREW WATER PUMP
155
HOSE FEED
155
HOSE FEED AND RETURN LINE CONNECTION
160
CLAMP , Replaced By: N000000000672
160
CLAMP HOSE FASTENING 50-70X13 MM
165
CLAMP , Replaced By: N000000000673
165
CLAMP HOSE TO RETARDER 60-80X13 MM
200
LINE RETURN
200
LINE WATER RETURN
200
LINE WATER RETURN
200
LINE RETURN
200
LINE WATER RETURN
200
LINE WATER RETURN
200
LINE AT TRANSMISSION
200
LINE WATER RETURN
200
LINE RETURN
200
COOLING WATER PIPE WATER RETURN
200
LINE WATER RETURN
200
LINE RETURN
200
LINE WATER RETURN
200
LINE WATER RETURN
200
LINE WATER RETURN
200
LINE WATER RETURN
200
LINE RETURN
202
SPACER TUBE PUMP TO FRAME SIDE MEMBER 16X34 MM
202
GUIDE BUSHING TWO-WAY VALVE TO FRAME
203
CLAMP LINE MOUNTING
203
CLAMP , Replaced By: A9424310043
203
CLAMP , Replaced By: N000000001641
205
HOSE FEED AND RETURN LINE CONNECTION
205
HOSE FEED AND RETURN LINE CONNECTION
205
HOSE FEED
205
HOSE FEED AND RETURN LINE CONNECTION
215
CLAMP , Replaced By: N000000000672
215
CLAMP HOSE FASTENING 50-70X13 MM
225
BRACKET OIL LINE MOUNTING
230
CLAMP LINE MOUNTING
230
CLAMP , Replaced By: A9424310043
230
CLAMP , Replaced By: N000000001641
235
COOLING WATER PIPE RETURN
240
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
240
HOSE BETWEEN THE LINES
245
CLAMP HOSE FASTENING 50-70X13 MM
245
CLAMP , Replaced By: N000000000672
250
BRACKET FUEL LINES TO TRANSMISSION
255
BRACKET AT TRANSMISSION
260
SPACER TUBE RETURN LINE TO ENGINE
265
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
265
HOSE FEED AND RETURN LINE CONNECTION
270
HOLLOW SCREW HEATING CONNECTION
270
HOLLOW SCREW LINE CONNECTION
275
SEAL RING LINE CONNECTION
280
HOSE DE-AERATION LINE, ORDER BY THE METER, Replaced By: A9575011982
280
HOSE , Replaced By: A0805013482
280
HOSE DE-AERATION LINE, ORDER BY THE METER
285
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
290
CLAMP , Replaced By: A0059970190
290
CLAMP , Replaced By: A1409950036
290
HOSE CLAMP LINE MOUNTING
295
LINE HOSE TO ENGINE
999
LINE WATER FEED
999
HOSE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6995015957
999
LINE WATER FEED
999
LINE WATER FEED
999
LINE WATER RETURN
999
LINE FEED
999
LINE WATER RETURN
999
COOLING WATER LINE RETURN, TRANSMISSION
999
COOLING WATER LINE WATER RETURN
999
HOSE COOLING WATER FEED LINE
999
MOLDED HOSE , Replaced By: A3015010782
999
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
999
STRAP REAR RIGHT
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BRACKET COOLING WATER LINE TO SUCTION PIPE
999
LINE WATER RETURN
999
FITTING OIL COOLER
999
LINE RETURN, FROM HOSE CONNECTION TO ENGINE
999
LINE WATER FEED
999
COOLING WATER LINE WATER FEED
999
CLAMP , Replaced By: N000000000672
