Поз.
Артикул
Описание
5

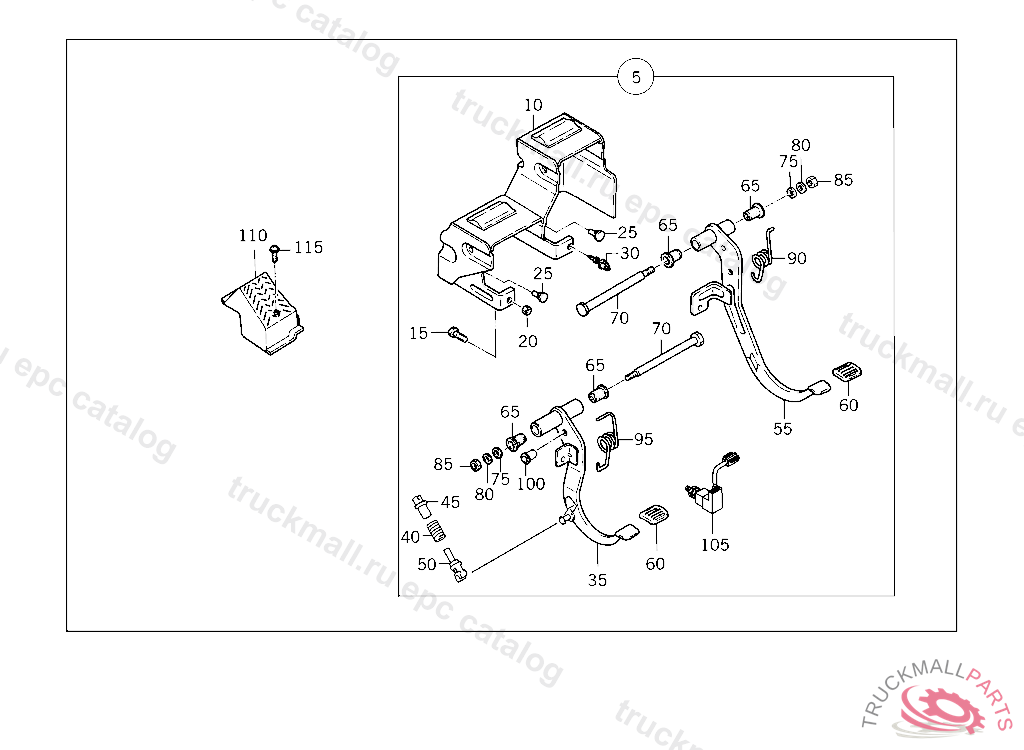

PEDAL ASSEMBLY
5
PEDAL ASSEMBLY PARTS KIT,059279( 13.04.1999 )
5
PEDAL ASSEMBLY PARTS KIT,059280( 14.04.1999 )
5
PEDAL ASSEMBLY , Replaced By: A6612904401
5
PEDAL ASSEMBLY , Replaced By: A6612904301
5
PEDAL ASSEMBLY , Replaced By: A6612904201
5
PEDAL ASSEMBLY , Replaced By: A6612904101
5
PEDAL ASSEMBLY , Replaced By: A6612904001
5
PEDAL ASSEMBLY , Replaced By: A6612903801
5
PEDAL ASSEMBLY , Replaced By: A6612903701
10
BEARING BRACKET BRAKE PEDAL AND CLUTCH PEDAL,059279( 13.04.1999 )
10
BEARING BRACKET BRAKE PEDAL AND CLUTCH PEDAL,059280( 14.04.1999 )
10
BEARING BRACKET BRAKE PEDAL AND CLUTCH PEDAL,059280( 14.04.1999 )
10
BEARING BRACKET BRAKE PEDAL AND CLUTCH PEDAL,059279( 13.04.1999 )
15
SCREW OIL TANK TO CLAMP
15
SCREW
20
NUT CYLINDER TO BRACKET TO0002902112
25
BUSHING , Replaced By: A6613013085
25
RUBBER BUFFER
30
SWITCH STOP LIGHT K 85710-05010
35
PEDAL CLUTCH PEDAL TO A 661 290 34 01,059279( 13.04.1999 )
35
CLUTCH PEDAL WITH OVER-LENTRE HELPER SPRING TO A 661 290 37 01,059279( 13.04.1999 )
35
CLUTCH PEDAL WITH OVER-LENTRE HELPER SPRING,059280( 14.04.1999 )
35
CLUTCH PEDAL WITH OVER-LENTRE HELPER SPRING TO A 661 290 39 01,059280( 14.04.1999 )
35
PEDAL , Replaced By: A6612903516
35
CLUTCH PEDAL WITH OVER-LENTRE HELPER SPRING,059279( 13.04.1999 )
40
SPRING OVER-CENTER ACTING SPRING TO A 661 290 37 01/29 01
45
GUIDE OVER-CENTER ACTING SPRING TO A 661 290 37 01/39 01
50
GUIDE OVER-CENTER ACTING SPRING TO A 661 290 37 01/39 01
55
PEDAL BRAKE PEDAL
60
PAD BRAKE PEDAL AND CLUTCH PEDAL
65
BUSHING BRAKE PEDAL AND CLUTCH PEDAL K 30413-05000
70
SHAFT BRAKE PEDAL AND CLUTCH PEDAL
75
WASHER , Replaced By: N000125008443
80
LOCK WASHER RAIL TO BATTERY SUPPORT
85
NUT BRACKET TO CAB FLOOR
90
SPRING BRAKE PEDAL
95
SPRING CLUTCH PEDAL
100
BUSHING CLUTCH PEDAL K 30416-05000
105
SWITCH , Replaced By: A6615450009
105
SWITCH CLUTCH PEDAL K 85160-06010X,059280( 14.04.1999 )
110
COVERING LEG ROOM
115
COMBINATION BOLTM 98264-06401 M 6X40
