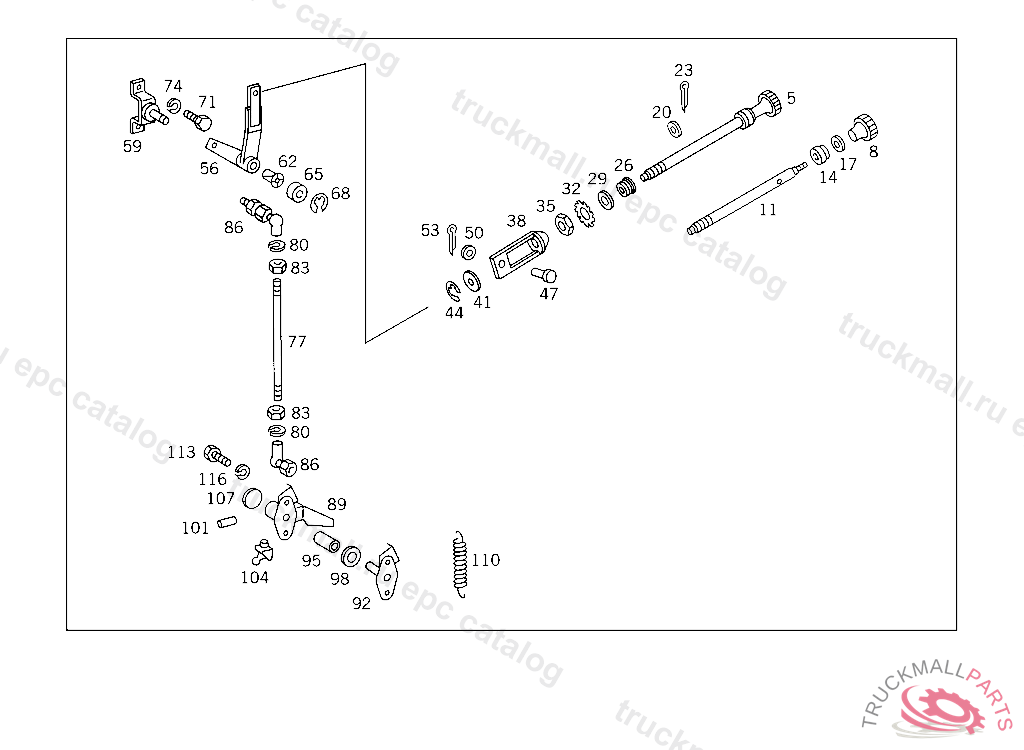

Поз.
Артикул
Описание
5
KNOB
8
KNOB , FROM CHASSIS: 023 009981 072 004629 073 001470
11
SPINDLE
14
DAMPING RING
17
WASHER , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
20
WASHER GROUND CABLE
23
COTTER PIN
26
BUSHING KNOB WITH SPINDLE TO BRACKET
29
RUBBER RING KNOB WITH SPINDLE TO BRACKET,C 086993
32
TOOTHED WASHER SENDER UNIT TO BRACKET
35
NUT BRACKET TO SIDE MEMBER
38
END PIECE PRECISION CONTROL, UP TO IDENT NO. 039909 EXCEPT FOR 301.225 WITH COUNTRY CODE 837 UP TO IDENT NO. 039676 301.265 WITH COUNTRY CODE 837 UP TO IDENT NO. 039438
41
WASHER PRECISION CONTROL
44
LOCK PLATE
47
PIN END PIECE TO CONTROL LEVER 8X12 MM
50
WASHER PLUG SOCKET TO BRACKET
53
COTTER PIN ROLLER TO LEVER
56
LEVER (CONTROL LEVER)
59
BEARING BRACKET (CONTROL LEVER)
62
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
65
COVERING , Replaced By: A6153010088
68
LOCK PLATE
71
SCREWM 6X12
74
LOCK WASHER CABLE TO FUSE BOX
77
ROD FROM CONTROL LEVER TO SHUT-OFF LEVER, UP TO IDENT NO. 039909 EXCEPT FOR 301.225 WITH COUNTRY CODE 837 UP TO IDENT NO. 039676 301.265 WITH COUNTRY CODE 837 UP TO IDENT NO. 039438
80
LOCK WASHER T-FITTING TO BRACKET
83
NUT TACHOGRAPH TO BRACKET
86
ANGLE JOINT ROD TO LEVER
86
JOINT ROD TO LEVER
89
LEVER (SHUT-OFF LEVER)
92
PIN INTERMEDIATE LEVER
95
BUSHING ,950252
98
SEAL RING
101
CYLINDRICAL PIN
104
GREASE NIPPLE
107
EXPANSION PLUG SHUT-OFF LEVER
110
SPRING RELEASE SPRING, UP TO CHASSIS 556499 EXCEPT FOR 553795,555902,556120
113
SCREW COVER TO SPRING SADDLE
116
LOCK WASHER RAIL TO BATTERY SUPPORT
