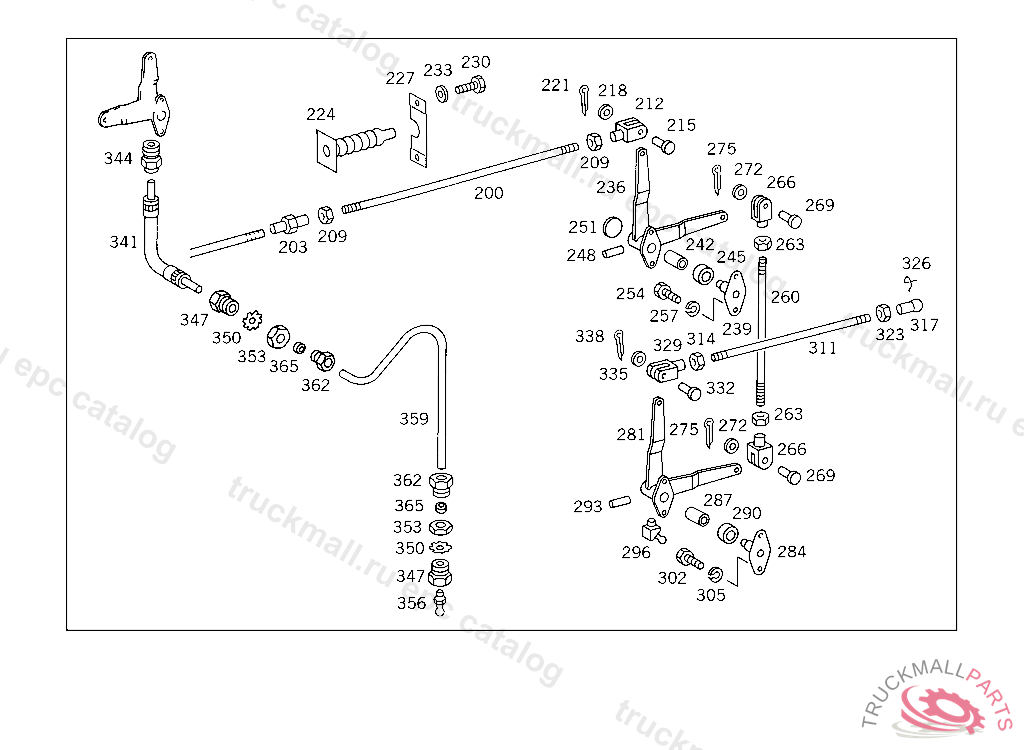

Поз.
Артикул
Описание
200
PULL ROD FROM TURNBUCKLE TO INTERMEDIATE LEVER
203
NUT FRONT SHIFTING ROD
209
NUT
212
YOKE OPERATING ROD TO BRACKET
215
PIN PULL ROD TO LEVER
218
WASHER LINE TO CROSS AND SIDE MEMBERS
221
COTTER PIN ROLLER TO LEVER
224
BOOT PULL ROD
224
BOOT PULL ROD
227
BRACKET CONTROL ROD
230
SCREW , Replaced By: N000933008337
233
WASHER TRAILER PLUG SOCKET TO BRACKET
236
LEVER (INTERMEDIATE LEVER)
239
PIN INTERMEDIATE LEVER
242
BUSHING ,950252
245
SEAL RING
248
CYLINDRICAL PIN
251
EXPANSION PLUG SHUT-OFF LEVER
254
SCREW SWITCH TO BRACKET 8X16
257
LOCK WASHER RAIL TO BATTERY SUPPORT
260
PULL ROD LEVER TO LEVER
263
NUT
266
YOKE OPERATING ROD TO BRACKET
269
PIN PULL ROD TO LEVER
272
WASHER LINE TO CROSS AND SIDE MEMBERS
275
COTTER PIN ROLLER TO LEVER
281
LEVER (INTERMEDIATE LEVER)
284
PIN INTERMEDIATE LEVER
287
BUSHING ,950252
290
SEAL RING
293
CYLINDRICAL PIN
296
GREASE NIPPLE
302
SCREW COVER TO SPRING SADDLE
305
LOCK WASHER RAIL TO BATTERY SUPPORT
311
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE
314
NUT
317
BALL SOCKET L.H. THREAD
323
NUT L.H. THREAD
326
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
329
YOKE OPERATING ROD TO BRACKET
332
PIN PULL ROD TO LEVER
335
WASHER LINE TO CROSS AND SIDE MEMBERS
338
COTTER PIN ROLLER TO LEVER
341
HOSE RELEASE COLLAR LUBRICATION,B 988950
344
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
347
BULKHEAD FITTING RELEASE BEARING LUBRICATION
350
TOOTHED WASHER FITTING TO FIRE WALL
353
NUT , Replaced By: N308675014001
356
GREASE NIPPLE FOR SPRING
356
GREASE NIPPLE INTERMEDIATE LEVER
359
LINE480 MM
359
LINE520 MM
359
LINE330 MM
362
UNION SCREW RELEASE COLLAR LUBRICATION
365
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
